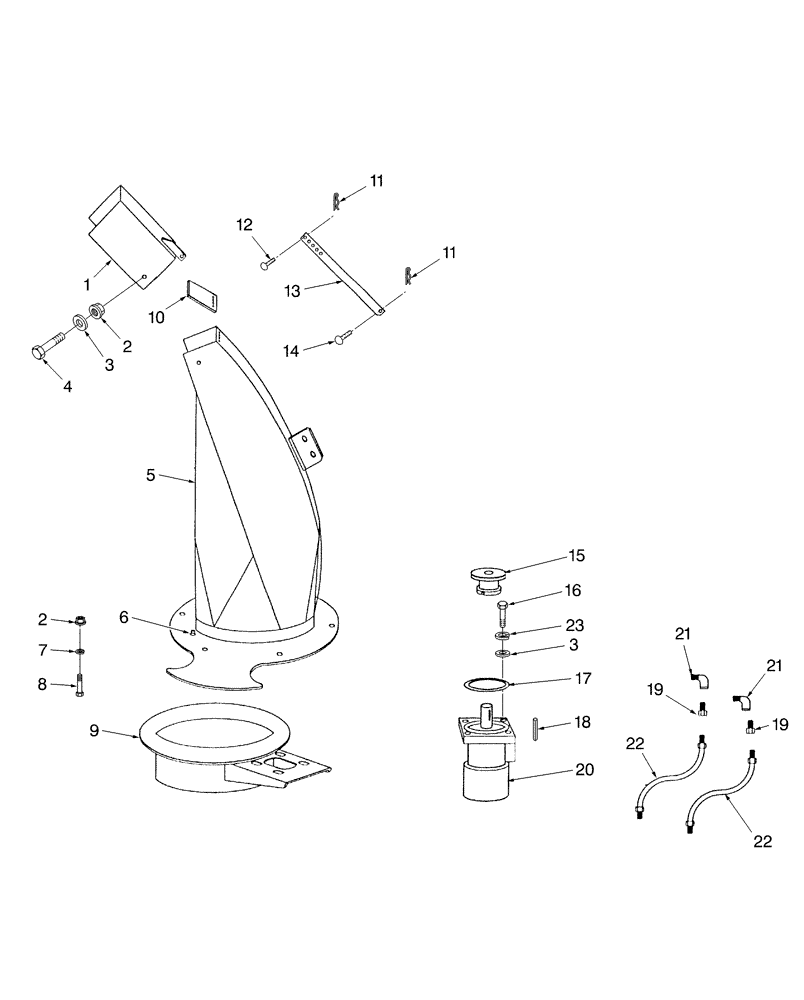

Запчасти Case IH 716B (007) - 9.5" SPOUT HYDRAULIC ROTATOR AND MANUAL FLIPPER, 60"

1

LF9550

DEFLECTOR

Flipper, 9-1/2" Spout

1шт.

2

PL

PROCURE LOCALLY

Nut, Lock, 3/8"

1шт.

3

PL

PROCURE LOCALLY

Washer, Flat, 3/8"

1шт.

4

PL

PROCURE LOCALLY

Bolt, 3/8" x 1"

1шт.

5

LF8242

SPOUT

DISCHARGE SPOUT Body, 9.5"

1шт.

6

PL

PROCURE LOCALLY

Zerk, Grease, Pound-In

1шт.

7

LF4066

WASHER

Step, 3/8"

1шт.

8

LF4037

BOLT

Shoulder, 1/2" x 1/2" x 3/8"

1шт.

9

NS

NOT SERVICED

Blower Body (Shown For Mounting Only)

1шт.

Not Illustrated

1шт.

10

LF4246

FLAP

Rubber, 2-Ply, 9-1/2"L

1шт.

11

PL

PROCURE LOCALLY

Pin, Clip Hair, 0.093 x 1-5/8"

2шт.

12

LF4088

PIN

Flipper, 1/2" x 3" Lg., Hdtop Pin

1шт.

13

LF9554

BRACKET

Flipper Adjustment

1шт.

14

LF4242

PIN

Hydraulic Cylinder Mount, 1/2" x 4", (Flipper)

1шт.

15

LF9553

SPROCKET

Rotator W/Washer

1шт.

16

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

1шт.

17

PL

PROCURE LOCALLY

Washer, 2-7/8" O.D. x 1-3/4" I.D. x 1/8" Thick

1шт.

18

PL

PROCURE LOCALLY

Key Stock, 1/4" x 1"

1шт.

19

LF4183

HYDRAULIC MOTOR

Hyd. Motor

2шт.

20

LF8247

HYDRAULIC MOTOR

Spout Rotator

1шт.

21

LF4153

ELBOW

Street, 1/2" x 1/2"

2шт.

22

LF418460

HOSE,0.38" ID x 60.00"

Hydraulic

2шт.

23

PL

PROCURE LOCALLY

Washer, Lock, 3/8"

1шт.

24

LF4332

ELBOW

3/8" x 3/8", 45Y

2шт.
