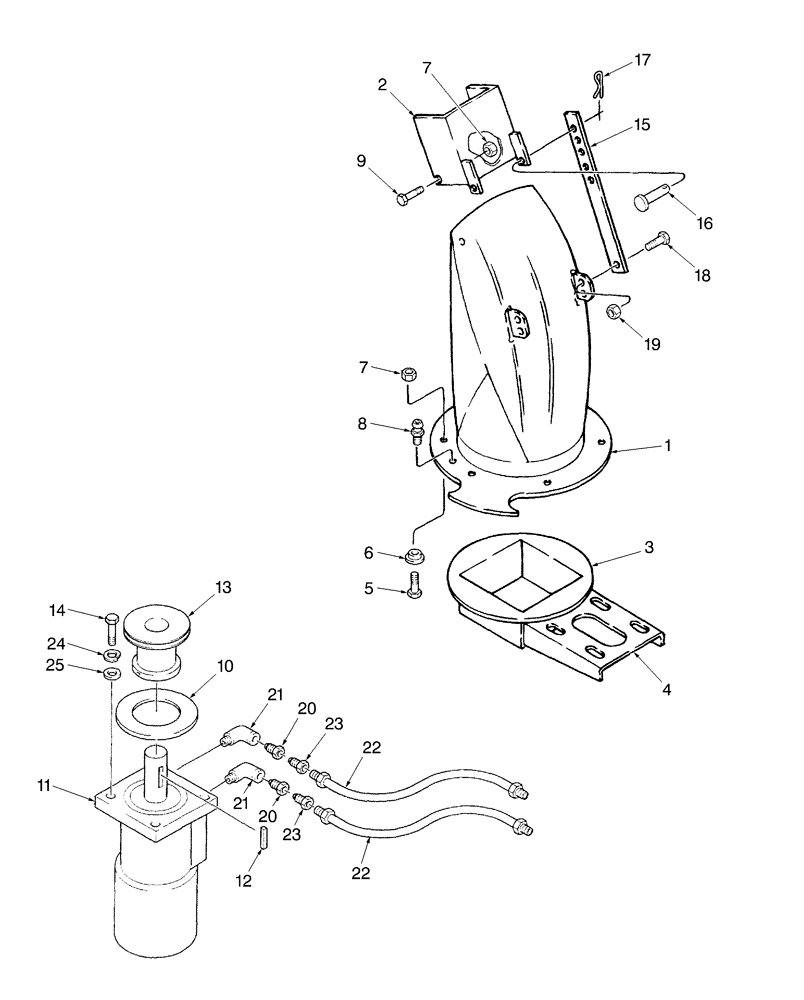

Запчасти Case IH 716B (006) - SPOUT & RELATED PARTS, 72"

1

LF8242

SPOUT

DISCHARGE SPOUT

1шт.

2

LF9550

DEFLECTOR

Flipper

1шт.

3

LF9551

RING

1шт.

4

LF9552

SUPPORT

Rotator

1шт.

5

LF4037

BOLT

Shoulder, 3/8"

1шт.

6

LF4066

WASHER

Step, 3/8"

1шт.

7

PL

PROCURE LOCALLY

Nut, Lock, 3/8"

1шт.

8

PL

PROCURE LOCALLY

Fittng, Grease

1шт.

9

PL

PROCURE LOCALLY

Bolt, G5, 3/8" x 1"

1шт.

10

LF4200

WASHER

Spacer, 2-7/8" O.D. x 1-3/4" I.D. x 1/8"

1шт.

11

LF8247

HYDRAULIC MOTOR

1шт.

12

PL

PROCURE LOCALLY

Key, Stock, 1/4" Sq. x 1"

1шт.

13

LF9553

SPROCKET

9T

1шт.

14

PL

PROCURE LOCALLY

Bolt, G5, 3/8" x 1-1/4"

4шт.

15

LF9554

BRACKET

Flipper Adjustment

1шт.

16

LF4088

PIN

Flipper

1шт.

17

LF4089

SPRING CLIP

Clip, Spring

1/2шт.

18

PL

PROCURE LOCALLY

Bolt, G5, 1/2" x 4-1/2"

1шт.

18

LF4242

PIN

Flipper

1шт.

19

PL

PROCURE LOCALLY

Nut, Lock, 1/2"

1шт.

20

LF4183

HYDRAULIC MOTOR

Hydraulic Motor

2шт.

21

LF4153

ELBOW

Street, 1/2" x 1/2"

2шт.

22

LF4173

FLEXIBLE HOSE

Hydraulic, 1/2" x 30" W/ Male Swivels

2шт.

22

LF418410

HOSE

Hydraulic, 3/8"x 36"

2шт.

23

LF4202

HYD CONNECTOR

1/2" x 3/8"

2шт.

24

PL

PROCURE LOCALLY

Washer, Lock, 3/8"

4шт.

25

PL

PROCURE LOCALLY

Washer, Flat, 3/8"

4шт.
