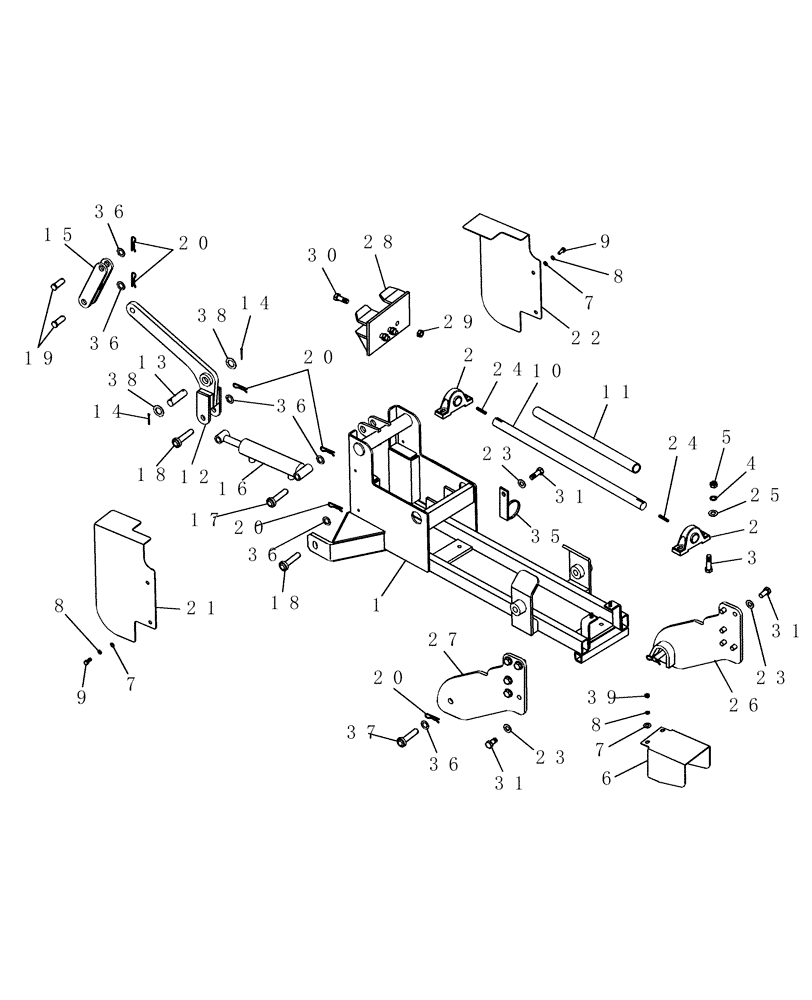

Запчасти Case IH 716B (004) - FRONT MOUNT, 72"

1

LFN10719

FRAME

1шт.

2

LFN10640

BEARING CARRIER

Pillow Block, 1-1/4"

2шт.

3

PL

PROCURE LOCALLY

Bolt, 1/2" x 2" Grade 5

1шт.

4

PL

PROCURE LOCALLY

Washer, Lock 1/2"

1шт.

5

PL

PROCURE LOCALLY

Nut, 1/2" Standard

1шт.

6

LFN10902

SHIELD

Rear

1шт.

7

PL

PROCURE LOCALLY

Washer, 3/8" Flat

1шт.

8

PL

PROCURE LOCALLY

Washer, Lock 3/8"

1шт.

9

PL

PROCURE LOCALLY

Bolt, 3/8" x 1" Grade 5

1шт.

10

LFN10733

DRIVE SHAFT

1-1/4" x 35-7/16"

1шт.

11

LFN11577

SHIELD

Drive Shaft, 28"

1шт.

12

LFN10786

ARM

Multi-Link

1шт.

13

LFN10796

PIN

Multi-Link Arm

1шт.

14

PL

PROCURE LOCALLY

Pin, Cotter 1/8" x 1-1/2"

1шт.

15

LFN10791

TOP LINK

Upper Blower Arm

1шт.

16

LF8287

CYLINDER

Hydraulic 2" x 6"

1шт.

17

PL

PROCURE LOCALLY

Pin, 3/4" x 5-3/16"

1шт.

18

PL

PROCURE LOCALLY

Pin, 3/4" x 3-1/4" Plated

1шт.

19

PL

PROCURE LOCALLY

Pin, 3/4" x 2"

1шт.

20

PL

PROCURE LOCALLY

Clip, Hairpin 1/8" x 2-1/4"

1шт.

21

LFN10918

SHIELD

Front PTO Left

1шт.

22

LFN10919

SHIELD

Front PTO Right

1шт.

23

PL

PROCURE LOCALLY

Washer, 5/8" Lock

1шт.

24

LF7189

KEY

Key, 5/16" x 1-3/4"

1шт.

25

PL

PROCURE LOCALLY

Washer, 1/2" Flat

1шт.

26

LFN10765

BRACKET

Mount, Right Rear

1шт.

27

LFN10764

BRACKET

Mount, Left Rear

1шт.

28

LFN10627

BRACKET

Mount, Front

1шт.

29

425-1410

JAM NUT,Jam, 5/8"-11, G5

Nut, 5/8" Lock

1шт.

30

PL

PROCURE LOCALLY

Bolt, 5/8" x 1-3/4" Grade 5

1шт.

31

PL

PROCURE LOCALLY

Bolt, M16 x 50MM Grade 8.8

1шт.

32

LF4240

ELBOW

3/8" 90 Degree

1шт.

Not Illustrated

1шт.

33

LF418460

HOSE,0.38" ID x 60.00"

Hydraulic

1шт.

Not Illustrated

1шт.

34

LFN11824

HYD CONNECTOR

Coupler, 3/8" Hydraulic Quick

1шт.

Not Illustrated

1шт.

35

LFN12251

BRACKET

Hose Ring

1шт.

36

PL

PROCURE LOCALLY

Washer, 3/4" Flat

1шт.

37

PL

PROCURE LOCALLY

Pin, 3/4" x 4-1/2"

1шт.

38

PL

PROCURE LOCALLY

Washer, 1" Flat

1шт.

39

PL

PROCURE LOCALLY

Nut, 3/8" Standard

1шт.
