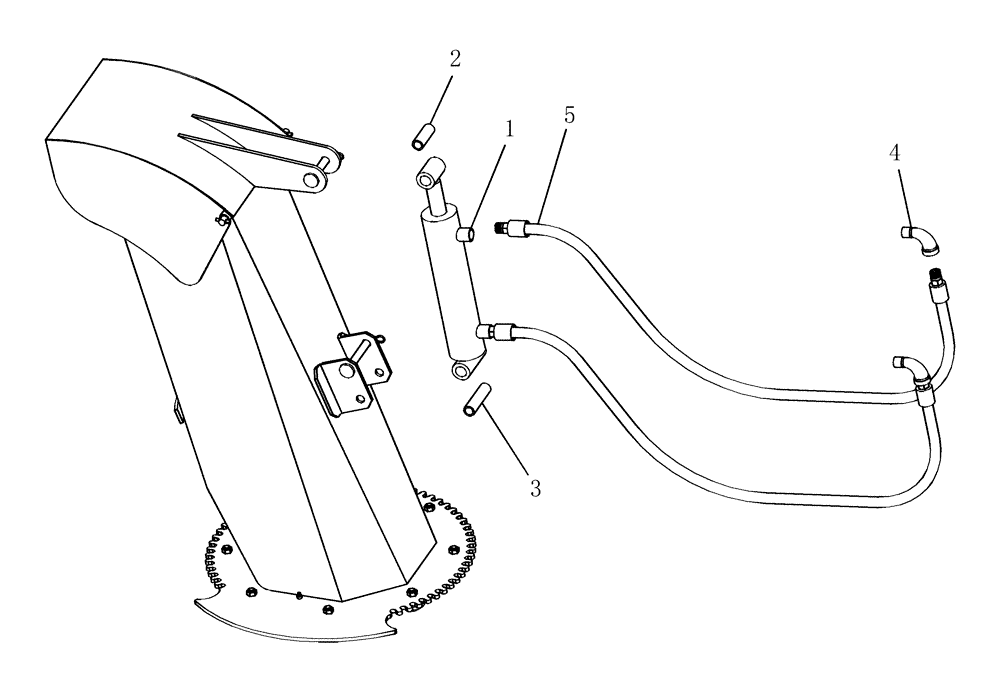

Запчасти Case IH 716B (019) - HYDRAULIC SPOUT FLIPPER CONTROL KIT

W0

ORDER WHOLEGOODS

Kit, Hydraulic Spout Flipper Control Kit {716863006}

1шт.

Order Thru Wholegoods

1шт.

W0

ORDER WHOLEGOODS

Kit, Hydraulic Spout Flipper Control Kit {716864006}

1шт.

Order Thru Wholegoods

1шт.

W0

ORDER WHOLEGOODS

Kit, Hydraulic Spout Flipper Control Kit {716865006}

1шт.

Order Thru Wholegoods

1шт.

1

LF8287

CYLINDER

Hydraulic 2" x 6"

1шт.

2

LF9675

BUSHING

3/4" OD x 2-1/8" Top Hyd Def

2шт.

3

LF9676

BUSHING

3/4" OD x 3" Bottom Hyd Def

2шт.

4

LF4153

ELBOW

1/2" Street 90Y

2шт.

5

LF418406

KIT

Hydraulic Hose 3/8" x 138", 716863006

2шт.

5

LF418404

KIT

Hydraulic Hose 3/8" x 150", 716864006

2шт.

5

LF418403

KIT

Hydraulic Hose 3/8" x 186", 716865006

2шт.
