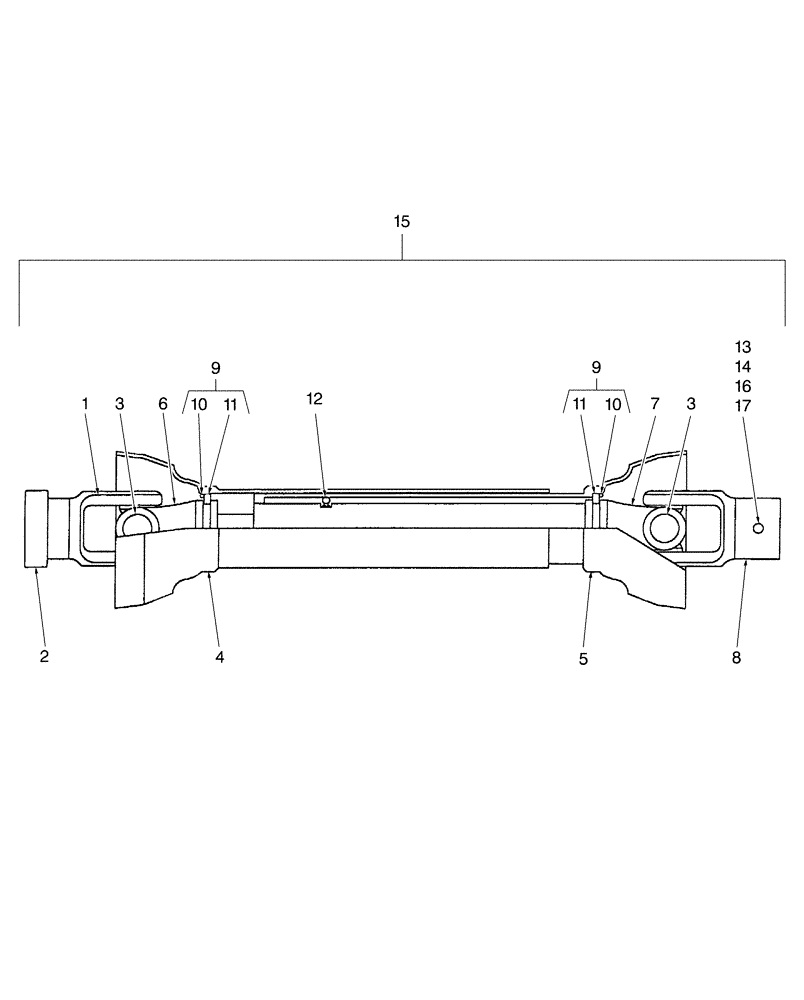

Запчасти Case IH 716B (014) - REAR PTO ASSEMBLY, 60"

1

LF820701

YOKE

Yoke 1" x 15 Spline

1шт.

2

LF820702

REPAIR KIT

Kit, Repair, PTO Slide Lock

1шт.

3

LF820703

REPAIR KIT

Kit, Repair, Bearing 6R Cross

1шт.

4

LF820704

GUARD

Outer

1шт.

5

LF820705

GUARD

Inner

1шт.

6

LF820706

YOKE

Shaft, 6R

1шт.

7

LF820708

YOKE

Tube, 6R

1шт.

8

LF820709

YOKE

1" Keyed 6R

1шт.

9

LF820710

BEARING ASSY

Snap Ring & Nylon Bearing Kit

1шт.

10

LF820713

SNAP RING

2шт.

11

LF820714

BEARING

Bearing, Nylon

2шт.

12

PL

PROCURE LOCALLY

Zerk, Grease

1шт.

13

PL

PROCURE LOCALLY

Bolt, 5/16" x 2-1/2" Gr.5

1шт.

14

PL

PROCURE LOCALLY

Nut, Lock, 5/16"

1шт.

15

LF8207

PTO

Weasler PTO, Complete 6R

1шт.

15a

LF820711

FRONT PTO ASSY

PTO Assembly, Tractor Half, Includes Ref: 1,2,3,4,6,10, &11

1шт.

15b

LF820712

PTO

PTO Assembly, Blower Half, Includes Ref: 3,5,7,8,10,11 & 12

1шт.

16

PL

PROCURE LOCALLY

Screw, Sq. Hd. Set, 3/8" x 1"

1шт.

17

PL

PROCURE LOCALLY

Nut, Jam, 3/8"

1шт.
