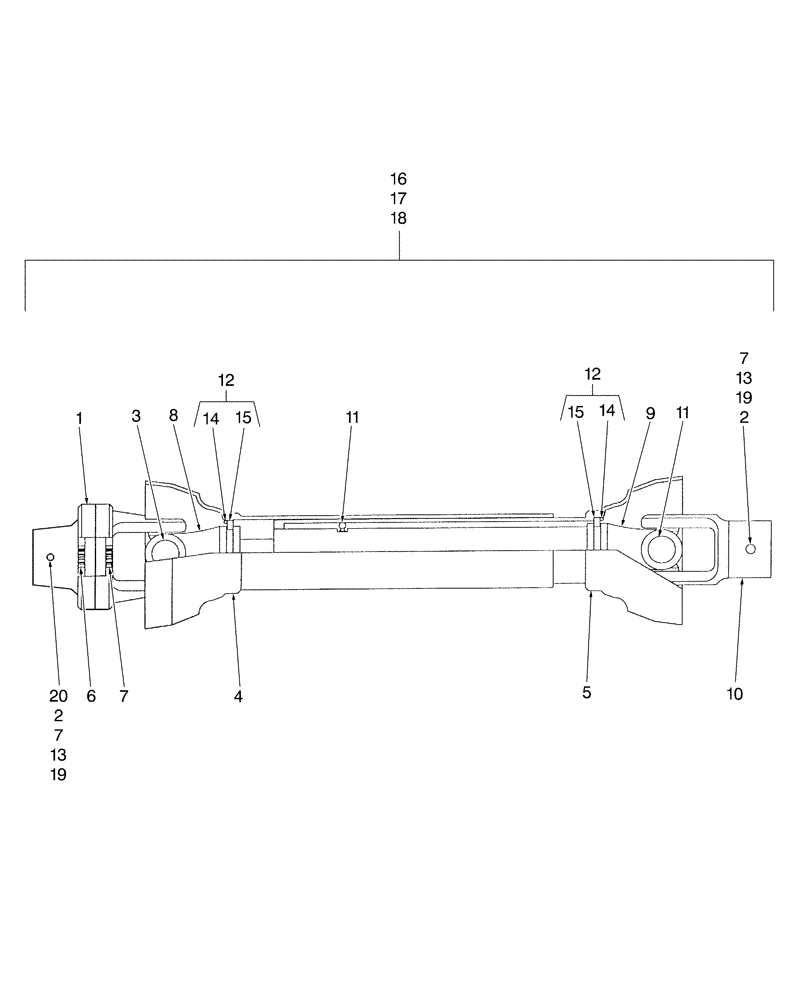

Запчасти Case IH 716B (012) - FRONT PTO ASSEMBLY, 60"

1

LF821001

YOKE

12R Shear Yoke W/1" Bore

1шт.

2

PL

PROCURE LOCALLY

Nut, Jam, 3/8"

1шт.

3

LF820803

REPAIR KIT

Kit, Repair, 12R Cross

1шт.

4

LF829206

OUTER SHIELD

Outer

1шт.

5

LF829207

INNER SHIELD

Inner

1шт.

6

LF4300

SHEAR BOLT

Shear, 1/4" x 1" Gr.2

1шт.

6

LF4203

SHEAR BOLT

Shear, 5/16" x 1" Gr.2

1шт.

7

PL

PROCURE LOCALLY

Nut, Lock, 5/16"

1шт.

7

PL

PROCURE LOCALLY

Nut, Lock, 1/4"

1шт.

8

LF821004

YOKE

12R Yoke & Shaft

1шт.

9

LF829209

YOKE

12R Yoke & Tube

1шт.

10

LF820808

YOKE

12R 1" Yoke

1шт.

11

PL

PROCURE LOCALLY

Zerk, Grease

1шт.

12

NS

NOT SERVICED

Snap Ring & Nylon Bearing

1шт.

NS - Not Serviced

1шт.

13

PL

PROCURE LOCALLY

Bolt, 5/16" x 2-1/2" Gr.5

1шт.

14

LF829212

SNAP RING

Ring, Snap

2шт.

15

LF829213

BUSHING

2шт.

16

LF8210

PTO SHAFT

Weasler, Complete, 12R PTO W/1" Bore Shear Yoke

1шт.

17

LF829201

FRONT PTO ASSY

Weasler, Complete, 12R Male Half W/1" Bore Shear Yoke

1шт.

18

LF829202

REAR PTO ASSY

Weasler, Complete, 12R Female Half PTO

1шт.

19

PL

PROCURE LOCALLY

Screw, Sq. Hd. Set, 3/8" x 1"

1шт.

20

PL

PROCURE LOCALLY

Square, Key Stock, CF 1/4" x 1-3/4"

1шт.
