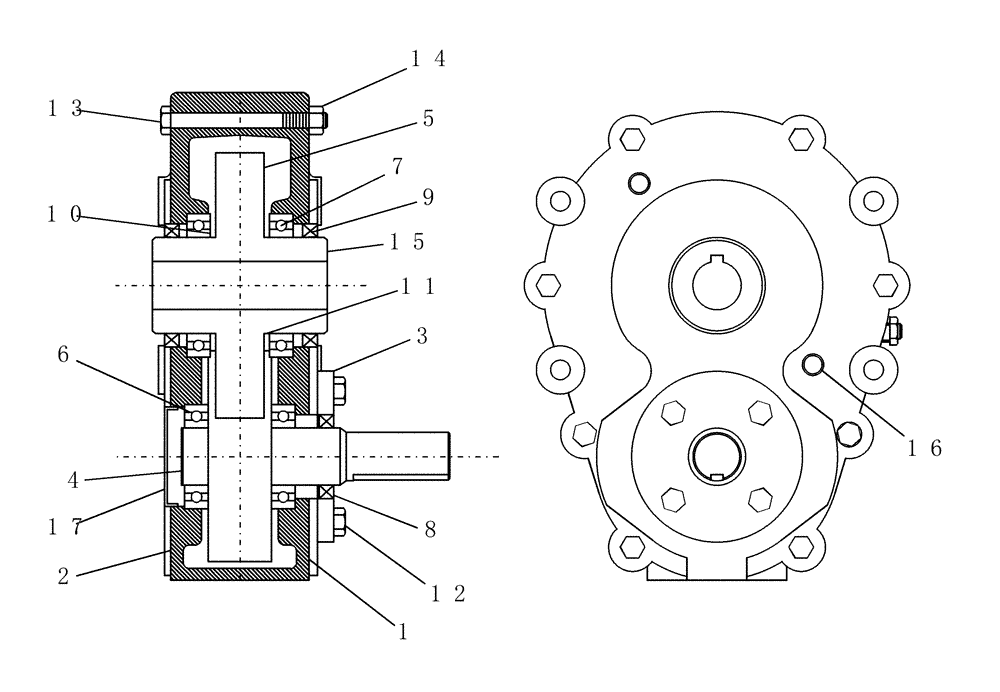

Запчасти Case IH 716B (011) - GEARBOX, 3.73:1 REDUCTION, 72"

1

LFN10646

TRANSMISSION HOUSING

Front

1шт.

2

LFN10645

TRANSMISSION HOUSING

Rear

1шт.

3

LFN11726

BEARING COVER

Bearing

1шт.

4

LFN10647

SHAFT

Pinion

1шт.

5

LFN11727

GEAR

56T

1шт.

6

LFN11728

BALL BEARING

1шт.

7

LFN11729

BALL BEARING

1шт.

8

LFN14011

OIL SEAL

1шт.

9

LFN11731

OIL SEAL

2шт.

10

LFN11732

SNAP RING

2шт.

11

LFN11733

KEY

3/8" Sq

1шт.

12

PL

PROCURE LOCALLY

Bolt, 5/16 x 3/4"

4шт.

13

PL

PROCURE LOCALLY

Bolt, 6/16 x 3-1/4"

10шт.

14

PL

PROCURE LOCALLY

Nut, 5/16 Nylock

10шт.

15

LFN11737

SLEEVE

1шт.

16

LFN11738

PLUG

1/4"

1шт.

17

LFN14001

COVER

Plug

1шт.

18

LFN10471

FINAL DRIVE

FINAL REDUCTION GEARBOX Includes: Ref. 1 thru 17

1шт.
