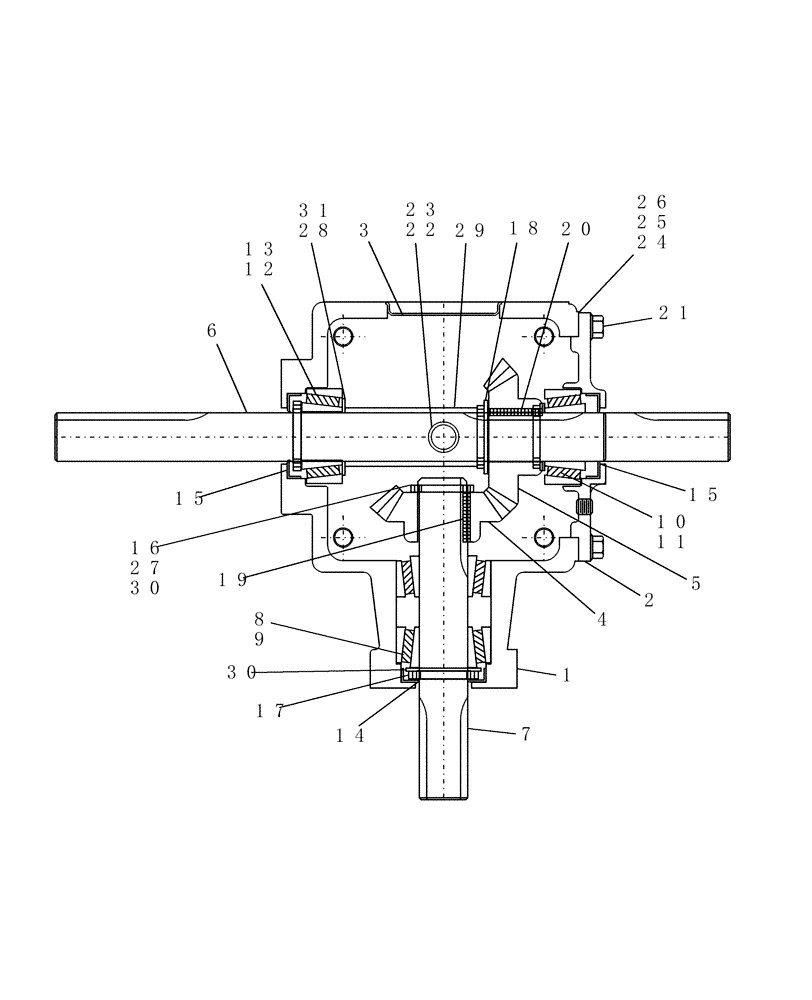

Запчасти Case IH 716B (010) - GEARBOX, 1:1 RIGHT ANGLE, 72"

1

LFN10641

CASE

Gear 6000

1шт.

2

LFN14000

BEARING COVER

Bearing

1шт.

3

LFN14001

COVER

Stamping

1шт.

4

LFN14002

GEAR

17T 1-1/4" Bore

1шт.

5

LFN14003

GEAR

17T 1-1/2" Bore

1шт.

6

LFN10643

SHAFT

Thru

1шт.

7

LFN10642

SHAFT

Quill

1шт.

8

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

1шт.

9

651817R1

BEARING CUP

1шт.

10

LFN14006

BEARING CUP

1шт.

11

LFN14007

ROLLER BEARING

1шт.

12

LFN14008

ROLLER BEARING

1шт.

13

LFN14009

BEARING CUP

1шт.

14

LFN14010

OIL SEAL

1шт.

15

LFN14011

OIL SEAL

1шт.

16

LFN14012

SNAP RING

1шт.

17

LFN14013

SNAP RING

1шт.

18

LFN14014

SNAP RING

1шт.

19

LFN14015

KEY

1/4" Square

1шт.

20

LFN11733

KEY

3/8" Square

1шт.

21

LF829117

SCREW

3/8" x 1"

1шт.

22

LFN11738

PLUG

1/4" Pipe Bottom

1шт.

23

LFN14019

BREATHER

1/4" Top

1шт.

24

LFN14020

SHIM

1шт.

25

LFN14021

SHIM

1шт.

26

LFN14022

SHIM

1шт.

27

LFN14023

SHIM

1шт.

28

LFN14024

SHIM

1шт.

29

LFN14025

SPACER

1шт.

30

LFN14026

WASHER

1шт.

31

LFN14027

WASHER

1шт.

32

LFN10472

FINAL DRIVE

FINAL REDUCTION GEARBOX Complete Includes: Ref. 1A thru 31

1шт.
