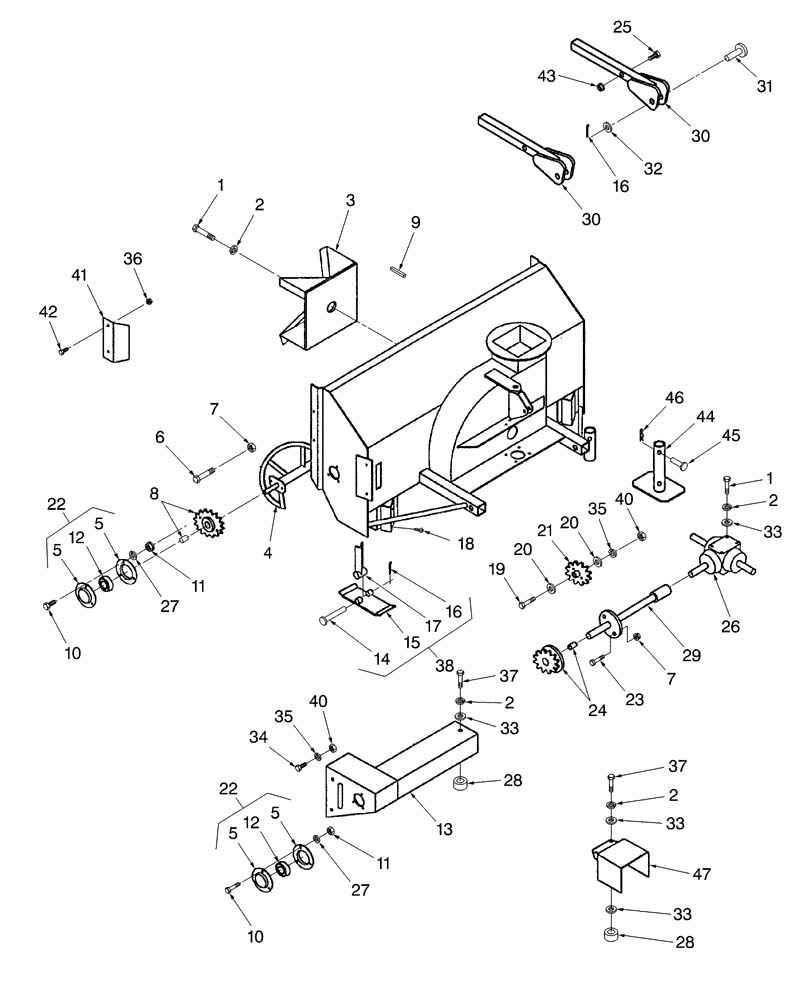

Запчасти Case IH 716B (001) - AUGER & FRAME, 60"

1

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

1шт.

2

PL

PROCURE LOCALLY

Washer, Lock, 3/8"

1шт.

3

LF9533

FAN

20" Dia. x 6" Deep

1шт.

4

LF9667A

FILTER, ENGINE OIL

FILTER, OIL 5" Single Flight, 1/4" x 1-1/2"

1шт.

5

LF8289

PLATE

Flange, 1" Bearing

1шт.

6

PL

PROCURE LOCALLY

Bolt, 1/4" x 1", Grade 5

1шт.

7

PL

PROCURE LOCALLY

Nut, Lock, 1/4"

1шт.

8

LF9622

DRIVING SPROCKET

Auger Dr., 1" Bore 50B50 W/Bushing

1шт.

9

PL

PROCURE LOCALLY

Square, CF 1/4" x 1-3/4", Key Stock

1шт.

10

PL

PROCURE LOCALLY

Bolt, Carriage, 5/16" x 3/4"

1шт.

11

PL

PROCURE LOCALLY

Nut, Standard, 5/16"

1шт.

12

LF8259

BEARING

1" Dia.

1шт.

13

LF9546

SHIELD

Cross Shaft

1шт.

14

LF4094A

FILTER, ENGINE OIL

FILTER, OIL Skid Shoe, 1/2 x 4-1/8"

2шт.

15

LF9541

SKID/SHOE

Small, Skid Shoe

2шт.

16

PL

PROCURE LOCALLY

Pin, Cotter, 1/8" x 1-1/2"

2шт.

17

LF9542

ARM

Small, Skid Shoe

2шт.

18

PL

PROCURE LOCALLY

Screw, Sq. Head Set, 1/2" x 1"

2шт.

19

413-848

BOLT,Hex, 1/2" - 13 x 3", Gr 5

Cap, HH, G5, 1/2"-13 x 3"

1шт.

20

PL

PROCURE LOCALLY

Washer, Flat, 1/2"

1шт.

21

LF8228

DRIVING SPROCKET

Idler, #50 Chain 1/2 Bore

1шт.

22

LF8216

BEARING ASSY

1", Complete, 3-Bolt Flange

1шт.

23

PL

PROCURE LOCALLY

Bolt, 1/4" x 1", Grade 2

1шт.

24

LF8323

DRIVING SPROCKET

Drive, 1" Bore 50B14 Sprocket W/Sh. flange

1шт.

25

PL

PROCURE LOCALLY

Bolt, 5/8" x 3-1/4", Grade 5

1шт.

26

LF8206

GEARBOX

1шт.

27

PL

PROCURE LOCALLY

Washer, Lock, 5/16"

1шт.

28

LF9800

SPACER

Gearbox, 3/8" I.D. x 9/16 Lg

1шт.

29

LF9605

SHAFT

601 W/Spl Cplr., 1" x 23-1/2

1шт.

30

LF9677

ARM

Snowblower, Lower Mount

2шт.

31

LF4102

PIN

Plated Hitch, 3/4 x 3-1/4"

1шт.

32

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

Washer, Flat, 3/4"

1шт.

33

PL

PROCURE LOCALLY

Washer, Flat, 3/8"

1шт.

34

PL

PROCURE LOCALLY

Bolt, 1/2" x 1", Grade 5

1шт.

35

PL

PROCURE LOCALLY

Washer, Lock, 1/2"

1шт.

36

PL

PROCURE LOCALLY

Nut, Lock, 3/8"

1шт.

37

PL

PROCURE LOCALLY

Bolt, 3/8" x 1-1/2", Grade 5

1шт.

38

NS

NOT SERVICED

Shoe, Small, Skid Complete

1шт.

39

LF825710

CHAIN

Drive #50 Regular 61-1/4" Lg

1шт.

Not Illustrated

1шт.

40

PL

PROCURE LOCALLY

Nut, Standard, 1/2"

1шт.

41

LF9544

SHIELD

Auger Chain

1шт.

42

PL

PROCURE LOCALLY

Bolt, 3/8 x 3/4", Grade 5

1шт.

43

425-1410

JAM NUT,Jam, 5/8"-11, G5

Nut, Lock, 5/8"

1шт.

44

LF9572

STAND

Stand, Jack

1шт.

45

LF4096A

FILTER, ENGINE OIL

FILTER, OIL Jack Stand

1шт.

46

PL

PROCURE LOCALLY

Pin, Hair (Jack Stand)

1шт.

47

LF9593

SHIELD

Shield

1шт.
