Запчасти Case IH 70 (9-02) - MAIN FRAME AND RELATED PARTS (09) - CHASSIS

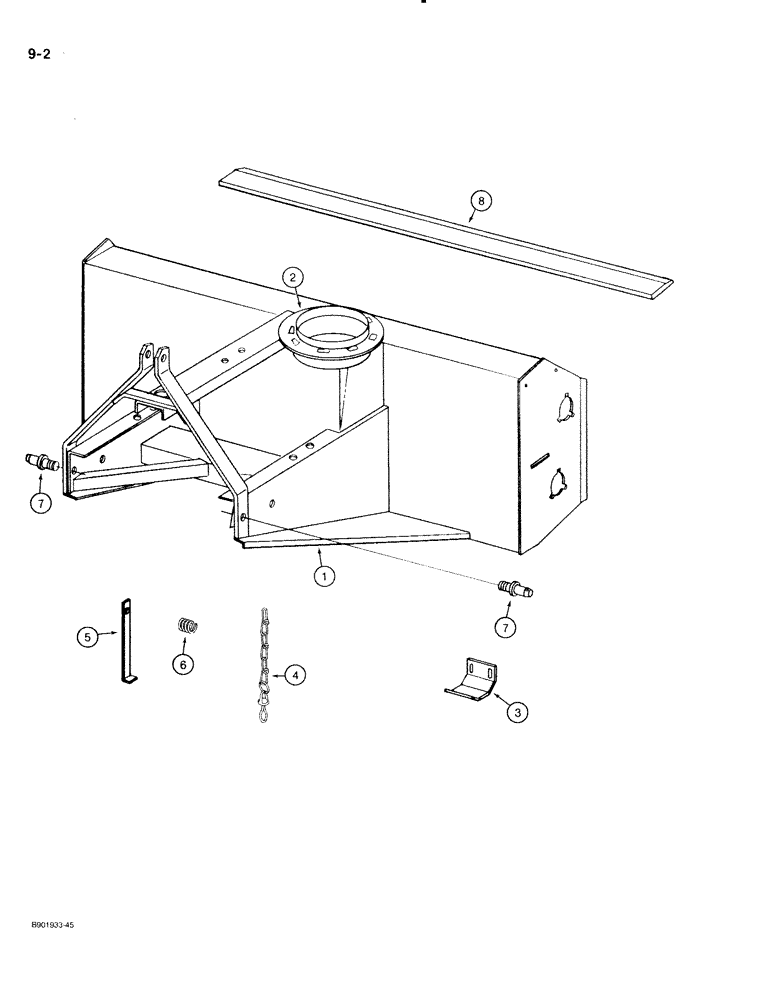

Схема запчастей Case IH 70 - (9-02) - MAIN FRAME AND RELATED PARTS (09) - CHASSIS

Артикул

Название

Примечание

Количество

822144C94

FRAME

ASSEMBLY - main, used on Model 70, replaces 822144C92 and 821271C3 frame assemblies

1шт.

1

NSS

NOT SOLD SEPARAT

FRAME - main

1шт.

1254170C1

DECAL

- general caution

1шт.

64553C2

PRODUCT GRAPHIC

DECAL - warning

1шт.

822162C94

FRAME

ASSEMBLY - main, used on Model 80, replaces 822162C92 and 821272C2 frame assemblies

1шт.

1

NSS

NOT SOLD SEPARAT

FRAME - main

1шт.

1254170C1

DECAL

- general caution

1шт.

64553C2

PRODUCT GRAPHIC

DECAL - warning

1шт.

2

821388C2

FLANGE

- spout mounting, weld on

1шт.

3

821313C1

SUPPORT

- frame skid

2шт.

433-828

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 3/4", Gr 5

BOLT - carriage, 1/2 NC x 1-3/4 inch, support to main frame crossmember and reinforcing angle

4шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

4шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

4шт.

495-81024

WASHER,17/32" x 1 1/4" x .060"

- flat, 17/32 x 1-1/4 x 3/64 inch

4шт.

4

596721R1

CHAIN (AG)

CHAIN - universal joint coil

1шт.

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch, chain to main frame hitch support

1шт.

425-106

NUT,3/8"-16, Cl 5

1шт.

492-11038

LOCK WASHER,3/8"

1шт.

495-61041

WASHER,10.31mm ID x 25.4mm OD x 1.6mm Thk

- flat, 7/16 x 1 x 5/64 inch

1шт.

5

821303C1

SUPPORT

- frame stand

1шт.

6

613827R1

SPRING

- stand support

1шт.

413-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

- hex, 1/2 NC x 2-1/2 inch, spring and support to frame

1шт.

131-1116

LOCK NUT,1/2"-13, GB

NUT, LOCK, 1/2"-13, GB

1шт.

495-81287

WASHER,13.49mm ID x 31.75mm OD x 3.4mm Thk

- flat, 17/32 x 1-1/4 x 7/64 inch, on bolt at spring

2шт.

7

472790R2

STUD

PIN - lower hitch, use on Model 80

2шт.

425-1118

NUT,1 1/8"-12, G5

- hex, 1-1/8 inch NF

2шт.

492-11112

LOCK WASHER,1 1/8"

1 1/8"

2шт.

7

470511R1

STUD

PIN - lower hitch, use on Model 70

2шт.

425-1114

NUT,7/8"-14, G5

- hex, 7/8 inch NF

2шт.

492-11088

LOCK WASHER,7/8"

7/8"

2шт.

8

821060C91

EDGE, CUTTING

BLADE - weld on

1шт.

Выбрано товаров: 31
