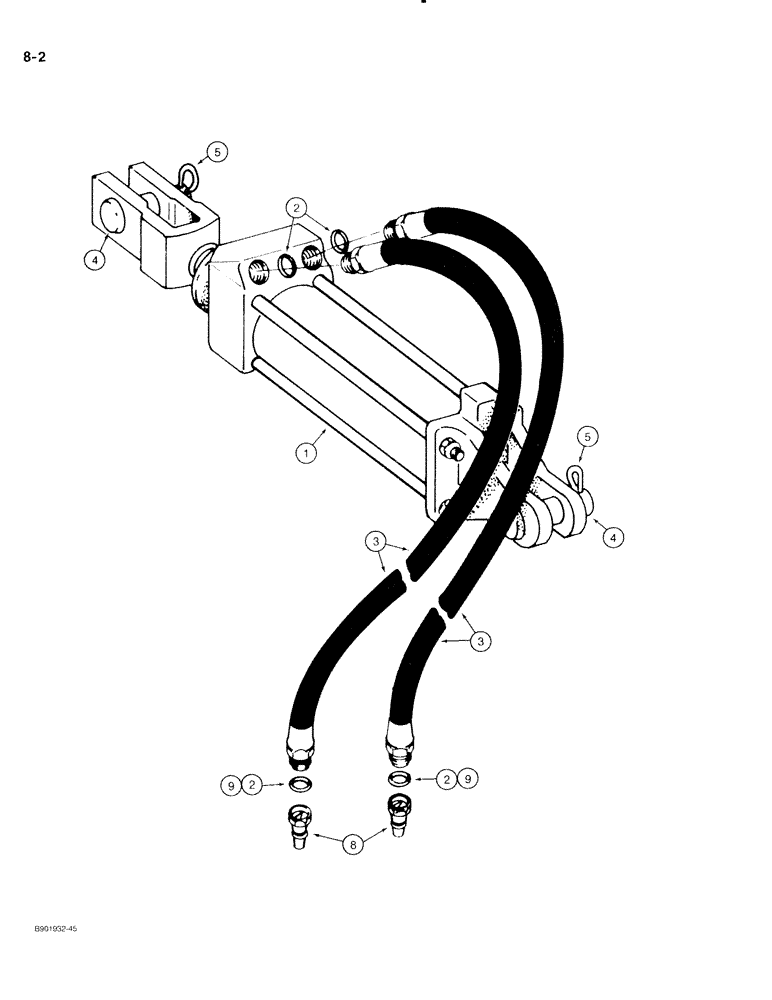

Запчасти Case IH 70 (8-02) - LIFT HYDRAULIC HOSES AND CYLINDER (08) - HYDRAULICS

1

1272145C91

CYLINDER ASSY.

CYLINDER ASSEMBLY - 2-1/2 ID X 8 inch stroke, used on machines with hydraulic spout control, replaces 371291R97 and 145209C92 cylinder assemblies, parts list page 8-5

1шт.

Order items 6 and 7 when replacing original cylinders.

1шт.

1

1272147C91

CYLINDER

ASSEMBLY 3-1/2 ID x 8 inch stroke, used on machines with tractor drawbar mounting attachment

1шт.

Order items 6 and 7 when replacing original cylinders.

1шт.

2

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

4шт.

3

407093R91

HOSE

- 1/2 x 72 inch, used on machines with hydraulic spout control

2шт.

3

407091R91

HOSE

- 1/2 x 48 inch, used on machines with tractor drawbar mounting attachment

2шт.

4

61571C2

HEADED PIN,25.4mm OD x 82.5mm L

PIN - clevis, 1 x 3-1/4 inch, included with 1272147C91 cylinder

2шт.

5

520175R1

CLIP

PIN - cotter, hair type, 3/16 inch diameter, included with 1272147C91 cylinder

2шт.

6

1252129C1

ADAPTER,7/8" - 14 ORB x 3/4" - 16 ORB

ADAPTER - 3/4-16 male x 7/8-14 inch female O-ring boss, not shown

2шт.

Order items 6 and 7 when replacing original cylinders.

1шт.

7

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, Not shown

2шт.

Order items 6 and 7 when replacing original cylinders.

1шт.

8

544787R91

COUPLING, BREAK AWAY

COUPLING - hose, male, 7/8-14 inch thread, self sealing type, used on 66 series tractors, if used, hydraulic

2шт.

These male hydraulic couplings are available to match female couplings on the tractor.

1шт.

8

395149R1

QUICK MALE COUPLING

COUPLING - hose, male, 7/8-14 inch thread, poppet type, if used, hydraulic

2шт.

These male hydraulic couplings are available to match female couplings on the tractor.

1шт.

8

1341843C1

QUICK MALE COUPLING

COUPLING - hose, male, 7/8-14 inch thread, self sealing type, used on 66 series tractors, if used, hydraulic

2шт.

These male hydraulic couplings are available to match female couplings on the tractor.

1шт.

8

1272399C1

UNION

COUPLING - hose, male, 7/8-14 inch thread, self sealing type, if used, hydraulic

2шт.

These male hydraulic couplings are available to match female couplings on the tractor.

1шт.

8

1285718C2

QUICK MALE COUPLING

- hose, male, 3/4-16 inch thread, self sealing type, if used, hydraulic

2шт.

These male hydraulic couplings are available to match female couplings on the tractor.

1шт.

8

359149R1

GASKET

COUPLING - hose, male, poppet type, 7/8-14 inch thread, if used, hydraulic

2шт.

These male hydraulic couplings are available to match female couplings on the tractor.

1шт.

9

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, Use on couplings with 7/8-14 inch threads, hydraulic

2шт.

9

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, Use on couplings with 3/4"-16 threads, hydraulic

2шт.

10

218-5261

ADAPTER,7/8" - 14 ORB x 3/4" - 16 ORB

- straight, 7/8-14 male x 3/4-16 inch fem str thread O-ring, if used, not shown, hydraulic couplings

1шт.

10

1252129C1

ADAPTER,7/8" - 14 ORB x 3/4" - 16 ORB

ADAPTER -straight, 3/4-16 male x 7/8-14 inch fem str thread O-ring, if used, not shown, hydraulic couplings

1шт.
