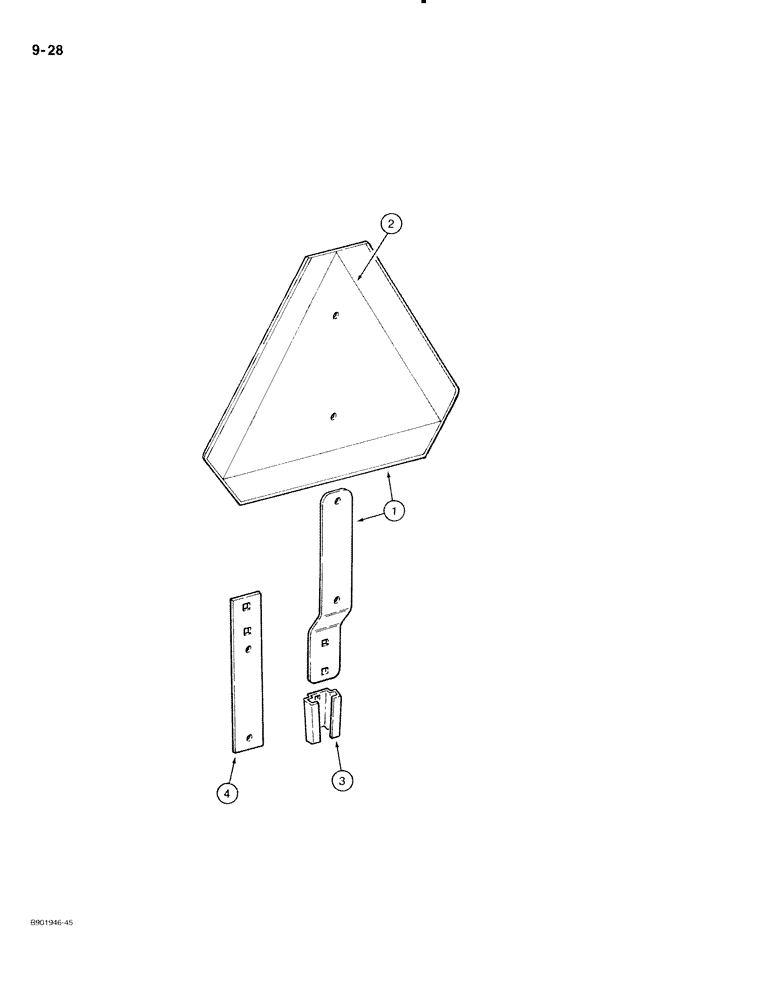

Запчасти Case IH 70 (9-28) - SLOW MOVING VEHICLE EMBLEM (09) - CHASSIS

1

A59457

BRACKET

EMBLEM - slow moving vehicle, steel, replaces 407220R1 emblem

1шт.

2

321-4311

DECAL

- SMV emblem

1шт.

3

398976R1

BRACKET

- slow moving vehicle emblem mounting

1шт.

434-512

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5

BOLT - carriage, 5/16 NC x 3/4 inch, Bracket to mounting bar

2шт.

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

2шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

4

608328R1

BAR

- emblem mounting

1шт.

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

BOLT - carriage, 3/8 NC x 1 inch, bar to main frame

2шт.

425-106

NUT,3/8"-16, Cl 5

2шт.

492-11038

LOCK WASHER,3/8"

2шт.

495-61041

WASHER,10.31mm ID x 25.4mm OD x 1.6mm Thk

- flat, 7/16 x 1 x 5/64 inch

2шт.
