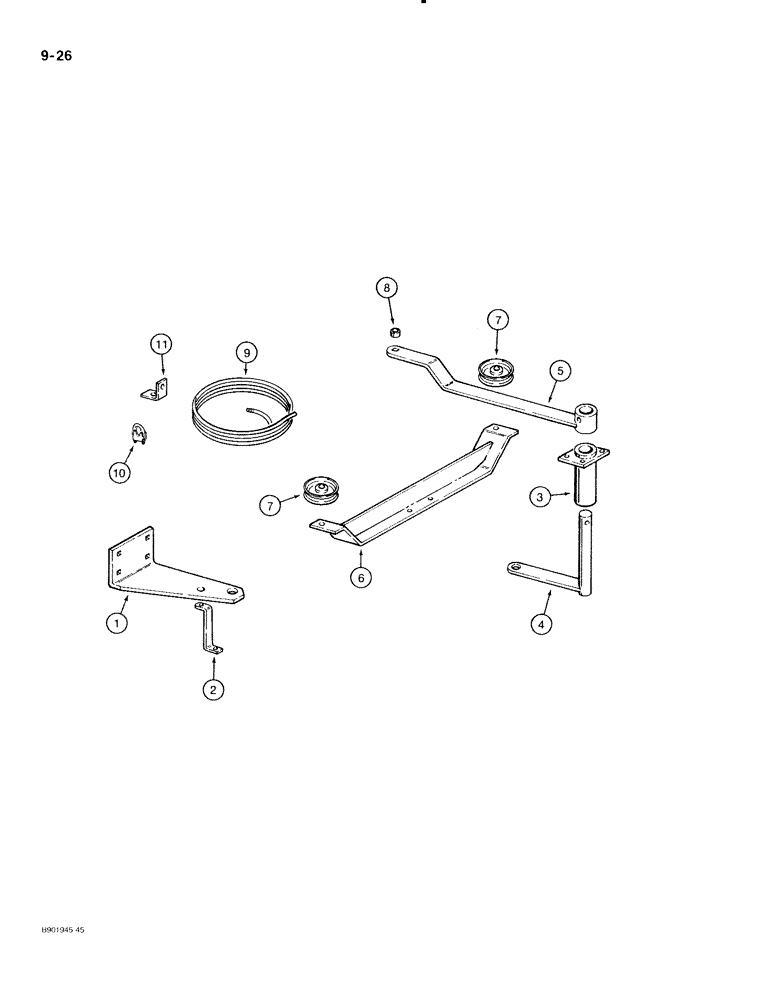

Запчасти Case IH 70 (9-26) - HYDRAULIC SPOUT CONTROLS (09) - CHASSIS

1

821413C1

SUPPORT

- hydraulic cylinder

1шт.

434-824

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/2", Gr 5

BOLT - carriage, 1/2 NC x 1-1/2 inch, support to frame crossmember

4шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

4шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

4шт.

2

821415C1

BRACKET

- support, reinforcing, Model 70 only

1шт.

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

Bracket to support Hex, 1/2"-13 x 1 1/2", G5, Full Thd

1шт.

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

- hex, 1/2 NC x 1-1/4 inch, Bracket to frame

1шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

3

821404C1

PIVOT

- hydraulic control

1шт.

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch, Pivot to frame upper channel

4шт.

425-106

NUT,3/8"-16, Cl 5

4шт.

492-11038

LOCK WASHER,3/8"

4шт.

4

821407C1

ARM

- cylinder control

1шт.

5

821410C2

ARM ASSY.

ARM - hydraulic cable control

1шт.

413-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

- hex, 3/8 NC x 2-1/2 inch, Cable control arm to cylinder control arm

1шт.

9411655

LOCK NUT,3/8"-16, GB

NUT - hex, self-locking, 3/8 inch NC

1шт.

6

821401C1

SUPPORT

- cable pulley

1шт.

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch, Pulley support to frame upper channel

4шт.

425-106

NUT,3/8"-16, Cl 5

4шт.

492-11038

LOCK WASHER,3/8"

4шт.

7

821417C91

PULLEY ASSY.

PULLEY - cable

2шт.

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

Pulley to support Hex, 1/2"-13 x 1 3/4", G5

2шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

495-81024

WASHER,17/32" x 1 1/4" x .060"

- flat, 17/32 x 1-1/4 x 3/64 inch

2шт.

8

561277R1

SPACER,5/8" Tube x 1/2"

- 13/32 x 5/8 x 7/16 inch, cable

1шт.

434-624

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/2", Gr 5

BOLT - carriage, 3/8 NC x 1-1/2 inch, spacer to cable control arm

1шт.

425-106

NUT,3/8"-16, Cl 5

1шт.

492-11038

LOCK WASHER,3/8"

1шт.

495-61041

WASHER,10.31mm ID x 25.4mm OD x 1.6mm Thk

- flat, 7/16 x 1 x 5/64 inch

1шт.

9

REF

INSTRUCTION

CABLE - 124 inch (3150 mm) long, cut from 821207C1 bulk cable, see below

1шт.

10

480472R1

CLIP

CLAMP - control cable, replaces 457797R1 clamp

1шт.

11

821392C1

ANGLE

- spout control cable

1шт.

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch, In spout control cable angle for tightener cable

1шт.

425-106

NUT,3/8"-16, Cl 5

1шт.

492-11038

LOCK WASHER,3/8"

1шт.

495-61041

WASHER,10.31mm ID x 25.4mm OD x 1.6mm Thk

- flat, 7/16 x 1 x 5/64 inch

2шт.

821207C1

CABLE

- bulk, 50 ft long

1шт.
