Запчасти Case IH 70 (9-24) - SPOUT CONTROLS (09) - CHASSIS

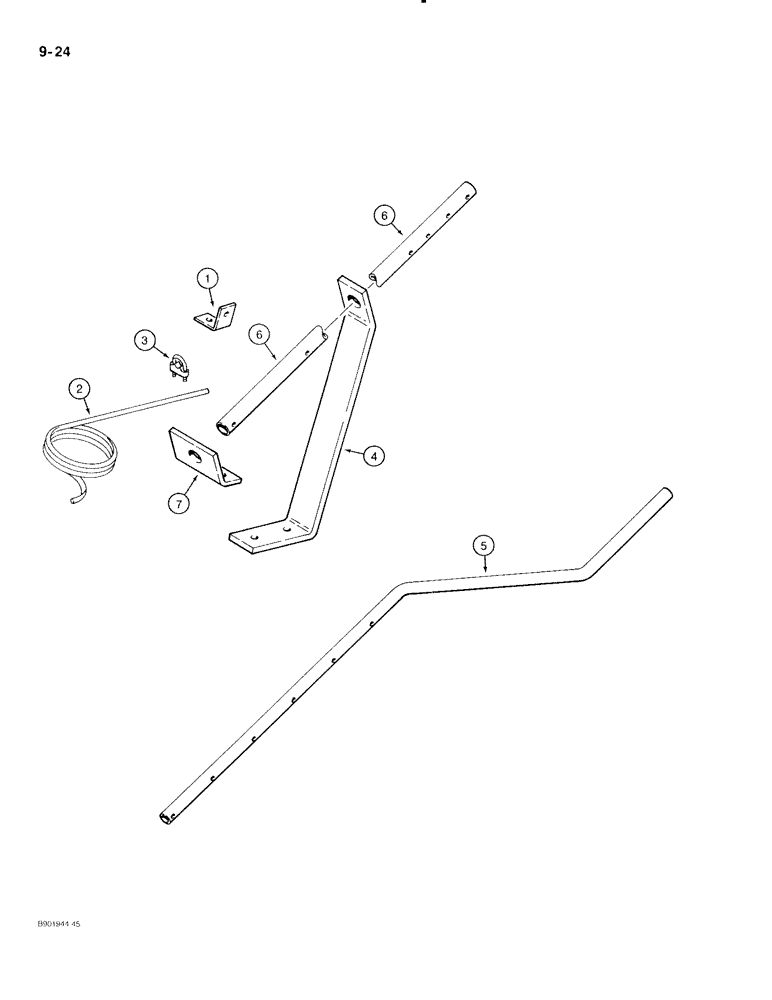

Схема запчастей Case IH 70 - (9-24) - SPOUT CONTROLS (09) - CHASSIS

Артикул

Название

Примечание

Количество

1

821392C1

ANGLE

- spout control cable

1шт.

14-772

BOLT,Hex, 7/16" - 20 x 4-1/2", Gr 5

- hex, 7/16 NF x 4-1/2 inch

1шт.

425-117

NUT,7/16"-20, G5

1шт.

192-22

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

1шт.

495-81287

WASHER,13.49mm ID x 31.75mm OD x 3.4mm Thk

- flat, 17/21 x 1-1/4 x 7/64 inch

1шт.

2

REF

INSTRUCTION

CABLE - 124 inch (3150 mm) long, cut from 821207C1 bulk cable, see below

1шт.

3

480472R1

CLIP

CLAMP - control cable, replaces 457797R1 clamp

1шт.

4

821305C1

SUPPORT

- control crank, front

1шт.

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch, support to main frame upper channel

2шт.

425-106

NUT,3/8"-16, Cl 5

2шт.

492-11038

LOCK WASHER,3/8"

2шт.

495-81135

WASHER,10.31mm ID x 25.4mm OD x 3.4mm Thk

- flat, 13/32 x 1 x 7/64"

2шт.

5

821326C1

CRANK

- spout control

1шт.

1978738C1

HAIR PIN COTTER

internal type

1шт.

6

821304C1

TUBE,1.05" OD, 35" Length

- control

1шт.

432-1224

COTTER PIN,3/16" x 1-1/2"

in control tube 3/16" x 1 1/2"

2шт.

495-81191

WASHER,1 5/32" x 2" x .060"

- flat, 1-5/32 x 2 x 3/64 inch, on tube at cotter pins

6шт.

7

821327C1

SUPPORT

- control crank, rear

1шт.

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

BOLT - carriage, 3/8 NC x 1 inch, rear support to main frame crossmember

2шт.

425-106

NUT,3/8"-16, Cl 5

2шт.

492-11038

LOCK WASHER,3/8"

2шт.

821207C1

CABLE

- bulk, 50 ft long

1шт.

Выбрано товаров: 22
