Запчасти Case IH 70 (9-22) - FAN, SPOUT AND DEFLECTOR (09) - CHASSIS

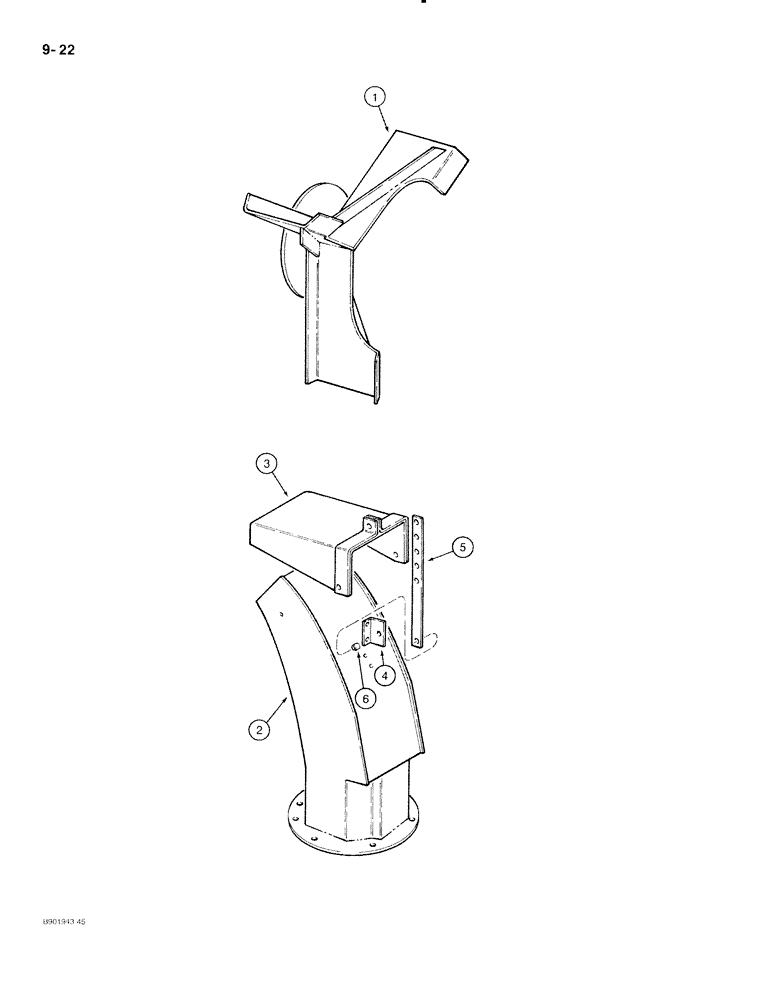

Схема запчастей Case IH 70 - (9-22) - FAN, SPOUT AND DEFLECTOR (09) - CHASSIS

Артикул

Название

Примечание

Количество

1

821298C2

FAN

- 3 blade, used on Model 70 only

1шт.

1

821324C2

FAN

- 3 blade, used on Model 80 only

1шт.

413-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

fan hub to gearbox cross shaft Hex, 3/8"-16 x 3", G5

1шт.

9411655

LOCK NUT,3/8"-16, GB

NUT - hex, self-locking, 3/8 inch

1шт.

821289C1

KEY

- 3/8 square x 1-7/8 inch straight, fan, Serial Range: hub-gearbox

1шт.

485-15020

SET SCREW,Sq Hd, 1/2"-13 x 1 1/4"

SCREW - set, square head, 1/2 NC x 1-1/4 inch, cup point, in fan hub

1шт.

425-148

JAM NUT,Jam, 1/2"-13, G5

- hex, jam, 1/2 inch NC

1шт.

2

822143C91

SPOUT, DISCHARGE

SPOUT - snow blower, replaces 82350C1 spout

1шт.

821038C1

PRODUCT GRAPHIC

DECAL - caution

1шт.

2753897R2

PRODUCT GRAPHIC

DECAL - warning

2шт.

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch, spout retaining bolt and also for spout control cable angle

1шт.

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch, Spout retaining bolt

7шт.

425-106

NUT,3/8"-16, Cl 5

8шт.

492-11038

LOCK WASHER,3/8"

8шт.

495-61041

WASHER,10.31mm ID x 25.4mm OD x 1.6mm Thk

- flat, 7/16 x 1 x 5/64 inch

40шт.

3

821343C1

DEFLECTOR

- snow

1шт.

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

BOLT - carriage, 3/8 NC x 1 inch, deflector to spout

2шт.

9411655

LOCK NUT,3/8"-16, GB

NUT - hex, self-locking, 3/8 inch

2шт.

495-81027

WASHER,21/32" x 1 1/2" x .120"

- flat, 21/32 x 1-1/2 x 3/32 inch

2шт.

4

821331C1

YOKE

SUPPORT - adjusting bar

1шт.

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

BOLT - carriage, 3/8 NC x 1 inch, support to spout

2шт.

425-106

NUT,3/8"-16, Cl 5

2шт.

492-11038

LOCK WASHER,3/8"

2шт.

5

821329C1

BAR

- deflector adjusting

1шт.

21806R1

HEADED PIN,1/2" x 1 3/4"

PIN - clevis, 1/2 x 1-3/4 inch

1шт.

1978738C1

HAIR PIN COTTER

internal type

1шт.

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch, adjusting bar to support

1шт.

425-106

NUT,3/8"-16, Cl 5

1шт.

492-11038

LOCK WASHER,3/8"

1шт.

495-61041

WASHER,10.31mm ID x 25.4mm OD x 1.6mm Thk

- flat, 7/16 x 1 x 5/64 inch

1шт.

6

561277R1

SPACER,5/8" Tube x 1/2"

- adjusting bar

1шт.

Выбрано товаров: 31
