Запчасти Case IH 70 (9-20) - DRIVE SHAFT, HAYES DANA, 34 TO 45.8 INCH (09) - CHASSIS

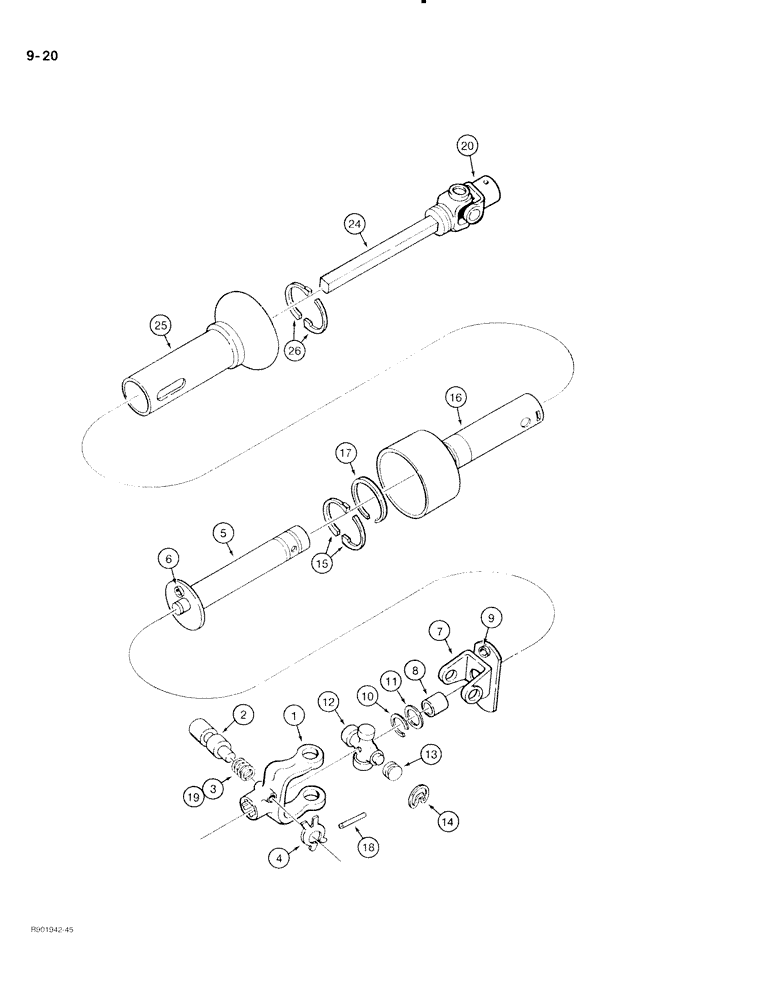

Схема запчастей Case IH 70 - (9-20) - DRIVE SHAFT, HAYES DANA, 34 TO 45.8 INCH (09) - CHASSIS

Артикул

Название

Примечание

Количество

821924C94

JOINT

ASSEMBLY - universal, front half

1шт.

1

660484R21

FORK

YOKE - quick detachable

1шт.

2

455346R21

PIN

ASSEMBLY - release, if used

1шт.

3

455347R1

VALVE SPRING

SPRING - pin

1шт.

4

661406R1

LOCK WASHER,4.83mm ID x 18.542mm OD x 1.65mm Thk

- locking, pin

1шт.

5

821925C1

SLEEVE

- joint, front flange

1шт.

6

821195C1

SHEAR BOLT BUSHING,8.31mm ID x 19.05mm OD x 175.26mm L

BUSHING - shear bolt

1шт.

7

821430C2

YOKE

- front, flanged

1шт.

8

1281411C1

BUSHING,28.55mm ID x 31.84mm OD x 32mm L

- front yoke, replaces 815127C1 bushing

1шт.

9

821195C1

SHEAR BOLT BUSHING,8.31mm ID x 19.05mm OD x 175.26mm L

BUSHING - shear bolt

1шт.

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

- hex, 3/8 NC x 2 inch, Yoke to sleeve, shear bolt

1шт.

9411655

LOCK NUT,3/8"-16, GB

NUT - hex, self-locking, 3/8 inch NC

1шт.

10

21109R1

SNAP RING,#112, Ext

Ring, Snap, , flanged yoke #112, Ext

1шт.

11

870969R1

SHIM

- .030 inch, flanged yoke

1шт.

660116R91

NUT

KIT - cross and bearing

1шт.

12

NSS

NOT SOLD SEPARAT

CROSS - center

1шт.

13

NSS

NOT SOLD SEPARAT

BEARING - needle

4шт.

14

495962R1

RING

- bearing retaining

4шт.

219-40

LUBE NIPPLE,65 Degree Elbow, 1/8" - 27 NPTF

FITTING - grease, 65 degree, 1/8 PT x 7/8 inch

1шт.

15

607910R1

BEARING HALF

- shield, 3-1/8 inch long

2шт.

16

840240C1

SHIELD

- inner, plastic with extended bell, replaces 821739C1 shield by also ordering (1) 609151R1 bearing, use on Model 70 SN 4806 and after and on Model 80 SN 8323 and after

1шт.

16

821431C1

SHIELD

- inner, Model 70 prior to SN 2595 and Model 80 prior to SN 1917

1шт.

16

821739C1

SHIELD

- inner, plastic, replaces 821926C1 steel shield by also ordering (3) 542956R1 bearings, used on Model 70 SN 2595 through 4805 and on Model 80 SN 1917 through 8322

1шт.

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight, taper 1/4"-28 NPT x .54" lg

1шт.

17

609151R1

NYLON BEARING,2.063" ID x 0.317"

- nylon

1шт.

613867R11

PIN

ASSEMBLY - release, if used

1шт.

18

17078R1

LOCK PIN,1/8" x 13/16", Slotted

PIN, 1/8" x 13/16", Slotted

1шт.

19

613868R1

SPRING

- pin

1шт.

821927C93

JOINT

ASSEMBLY - universal, rear half

1шт.

20

821433C2

YOKE

- joint end

1шт.

660116R91

NUT

KIT - cross and bearing

1шт.

21

NSS

NOT SOLD SEPARAT

CROSS - center, not shown

1шт.

22

NSS

NOT SOLD SEPARAT

BEARING - needle, not shown

4шт.

23

495962R1

RING

- bearing retaining, not shown

4шт.

219-40

LUBE NIPPLE,65 Degree Elbow, 1/8" - 27 NPTF

FITTING - grease, 65 degree, 1/8 PT x 7/8 inch

1шт.

24

821928C1

YOKE

BAR - with yoke end

1шт.

25

821740C2

SHIELD

- outer, replaces 821929C1 shield by also ordering (3) 542956R1 bearings

1шт.

26

542956R1

NYLON BEARING,0.312"

- nylon shield, 2 inch long

3шт.

Выбрано товаров: 38
