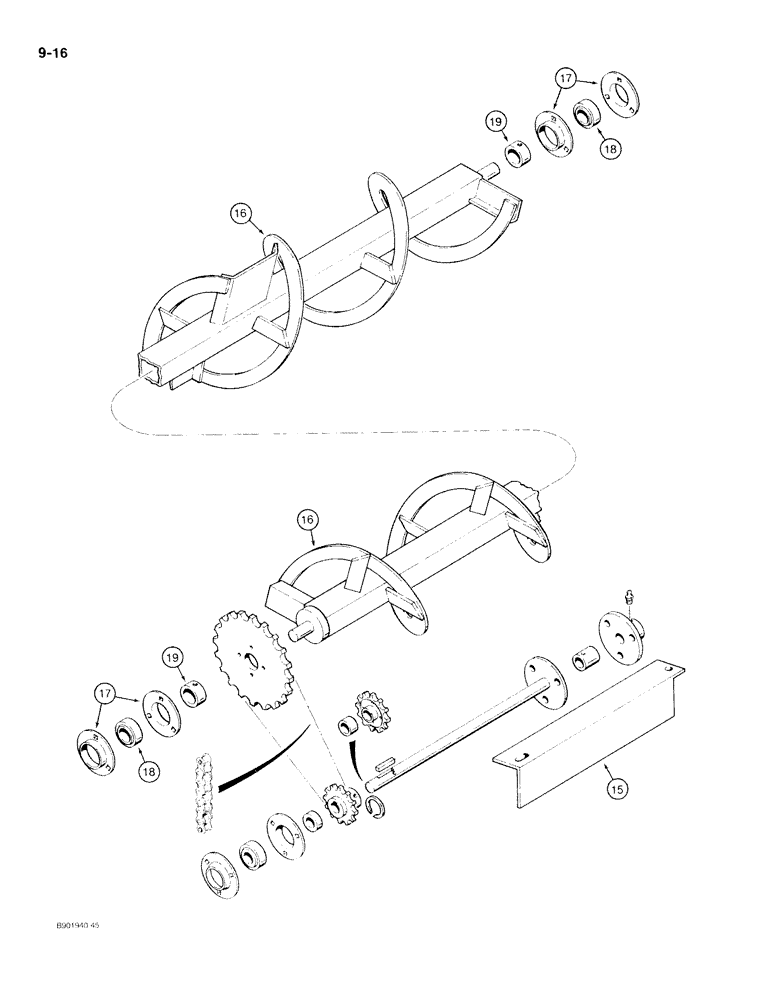

Запчасти Case IH 70 (9-16) - LOWER AUGER AND DRIVE (09) - CHASSIS

413-848

BOLT,Hex, 1/2" - 13 x 3", Gr 5

- hex, 1/2 NC x 3 inch, sprocket and spacer to main frame side support

1шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

1шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

1шт.

495-81287

WASHER,13.49mm ID x 31.75mm OD x 3.4mm Thk

- flat, 17/32 x 1-1/4 x 7/64 inch, on both sides of main frame side support

2шт.

15

821265C1

ANGLE

- drive shaft shield, Model 70 only

1шт.

15

821270C1

ANGLE

- drive shaft shield, Model 80 only

1шт.

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch, Angle to main frame left-hand side support and gearbox reinforcement channel

1шт.

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch, Angle to main frame left-hand side shaft suport

1шт.

425-106

NUT,3/8"-16, Cl 5

2шт.

492-11038

LOCK WASHER,3/8"

2шт.

16

821217C3

AUGER

- Model 70 only

1шт.

16

821218C2

AUGER

- Model 80 only

1шт.

17

617863R1

FLANGED BEARING

- bearing

4шт.

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

BOLT - carriage, 3/8 NC x 1 inch, flange to main frame side plates

6шт.

425-106

NUT,3/8"-16, Cl 5

6шт.

492-11038

LOCK WASHER,3/8"

6шт.

495-61041

WASHER,10.31mm ID x 25.4mm OD x 1.6mm Thk

- flat, 7/16 x 1 x 5/64 inch

6шт.

18

571588R92

BALL BEARING,1.3755" ID x 72 mm OD x 1"

- auger

2шт.

19

517645R11

COLLAR

ASSEMBLY - bearing locking

2шт.

483-1386

SET SCREW,Hex Soc, 3/8"-16 x 3/8"

SCREW - set, hex socket headless, 3/8 NC x 3/8 inch, cup pt

2шт.

21193R1

SNAP RING,#137. Ext

Ring, Snap, #137, Ext, bearing

2шт.
