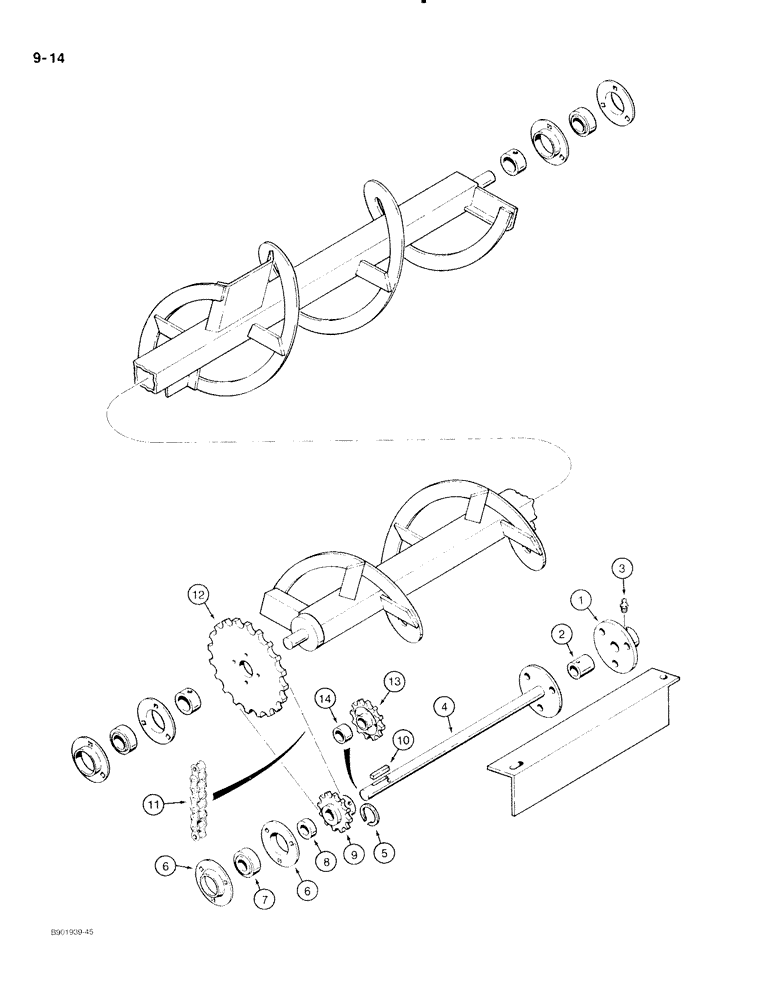

Запчасти Case IH 70 (9-14) - LOWER AUGER AND DRIVE (09) - CHASSIS

1

821707C91

HUB

- auger drive

1шт.

2

608692R1

BUSHING

- drive hub

1шт.

3

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 3/8 NC x 3/8 inch, cup pt

1шт.

4

821705C3

SHAFT

- auger drive, Model 70 only

1шт.

4

821703C3

SHAFT

- auger drive, Model 80 only

1шт.

5

609053R1

SNAP RING,#125, Ext

Ring, Snap, , bearing, on drive shaft #125, Ext

1шт.

434-516

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 1", Gr 5

BOLT - carriage, 5/16 NC x 1 inch, drive shaft to hub

1шт.

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

1шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

6

H747188

FLANGED BEARING,112.73 mm OD x 8.74 mm

FLANGE - bearing

2шт.

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

BOLT - carriage, 3/8 NC x 1 inch, flange to main frame, left-hand side support

3шт.

425-106

NUT,3/8"-16, Cl 5

3шт.

492-11038

LOCK WASHER,3/8"

3шт.

495-61041

WASHER,10.31mm ID x 25.4mm OD x 1.6mm Thk

- flat, 7/16 x 1 x 5/64 inch

3шт.

7

617667R92

BALL BEARING,31.75mm ID x 62mm OD x 18mm W

- auger drive shaft

1шт.

8

557995R11

COLLAR

ASSEMBLY - bearing locking

1шт.

83-1315

SET SCREW,Hex Soc, 5/16"-18 x 5/16"

SCREW - set, hex socket, 5/16 NC x 5/16 inch, cup pt

1шт.

9

594955R11

SPROCKET ASSY.

SPROCKET - auger drive, 14 teeth, Model 80 only

1шт.

9

821290C1

SPROCKET ASSY.

SPROCKET - auger drive, 17 teeth, Model 70 only

1шт.

10

586879R1

KEY

- 5/16 square x 2 inch straight, sprocket to drive shaft

1шт.

617941R1

PIN,5/16" x 2", Coiled

Sprocket to drive shaft 5/16" x 2", Coiled

1шт.

11

REF

INSTRUCTION

CHAIN ASSEMBLY - auger drive, Model 80 only, component parts not serviced separately, use 93 links of 821361C91 roller chain (see below), plus one 821359C1 connecting link and one 821360C1 offset link

1шт.

11

REF

INSTRUCTION

CHAIN ASSEMBLY - auger drive, Model 70 only, component parts not serviced separately, use 111 links of 821421C91 roller chain (see below), plus one 821419C1 connecting link

1шт.

12

821213C1

SPROCKET ASSY.

SPROCKET - auger driven, 38 teeth, Model 80 only

1шт.

12

821293C1

SPROCKET ASSY.

SPROCKET - auger driven, 46 teeth, Model 70 only

1шт.

426-616

BOLT,Hex, 3/8" - 16 x 1", Gr 8

Driven sprocket to auger Hex, 3/8"-16 x 1", G8, Full Thd

4шт.

492-11038

LOCK WASHER,3/8"

4шт.

13

565442R91

SPROCKET

- drive chain tightener, 17 teeth, Model 70 only

1шт.

13

571441R91

SPROCKET ASSY.,15T

SPROCKET - drive chain tightener, 15 teeth, Model 80 only

1шт.

14

273057R1

SPACER

- sprocket

1шт.

821361C91

CHAIN (AG)

CHAIN - bulk, 3/4 inch x 10 foot

1шт.

821421C91

CHAIN (AG)

CHAIN - bulk, 5/8 inch x 10 foot

1шт.
