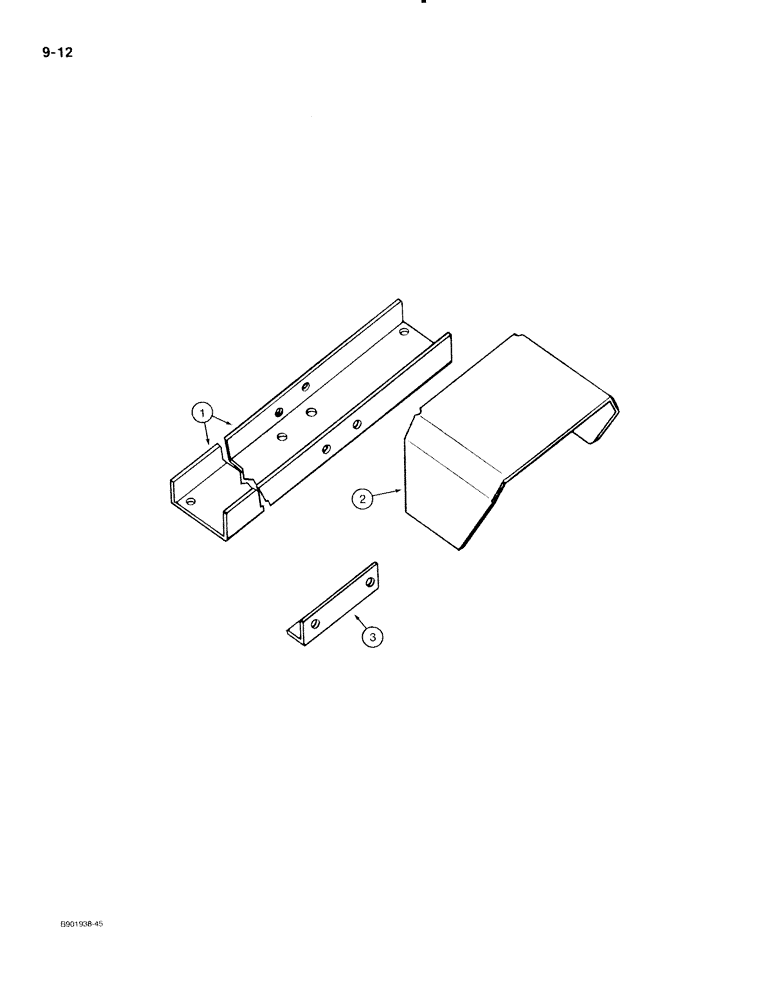

Запчасти Case IH 70 (9-12) - GEARBOX CHANNEL AND SHIELD (09) - CHASSIS

1

821212C2

CHANNEL

- gearbox reinforcement, Model 80 only

1шт.

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

Gearbox to channel Hex, 1/2"-13 x 1", G5, Full Thd

4шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

4шт.

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch, Reinforcement channel to main frame, left-hand side support

1шт.

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch, Reinforcement channel to main frame, right-hand side support

2шт.

425-106

NUT,3/8"-16, Cl 5

3шт.

492-11038

LOCK WASHER,3/8"

3шт.

495-61041

WASHER,10.31mm ID x 25.4mm OD x 1.6mm Thk

- flat, 7/16 x 1 x 5/64 inch

3шт.

2

607993R2

SHIELD

- universal joint, rear

1шт.

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch, Shield to gearbox reinforcement channel or support angle

2шт.

492-11038

LOCK WASHER,3/8"

2шт.

425-106

NUT,3/8"-16, Cl 5

2шт.

3

821811C1

ANGLE

- shield support, Model 70 only

1шт.

413-812

BOLT,Hex, 1/2" - 13 x 3/4", Gr 5

- hex, 1/2 NC x 3/4 inch, angle to gearbox

2шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.
