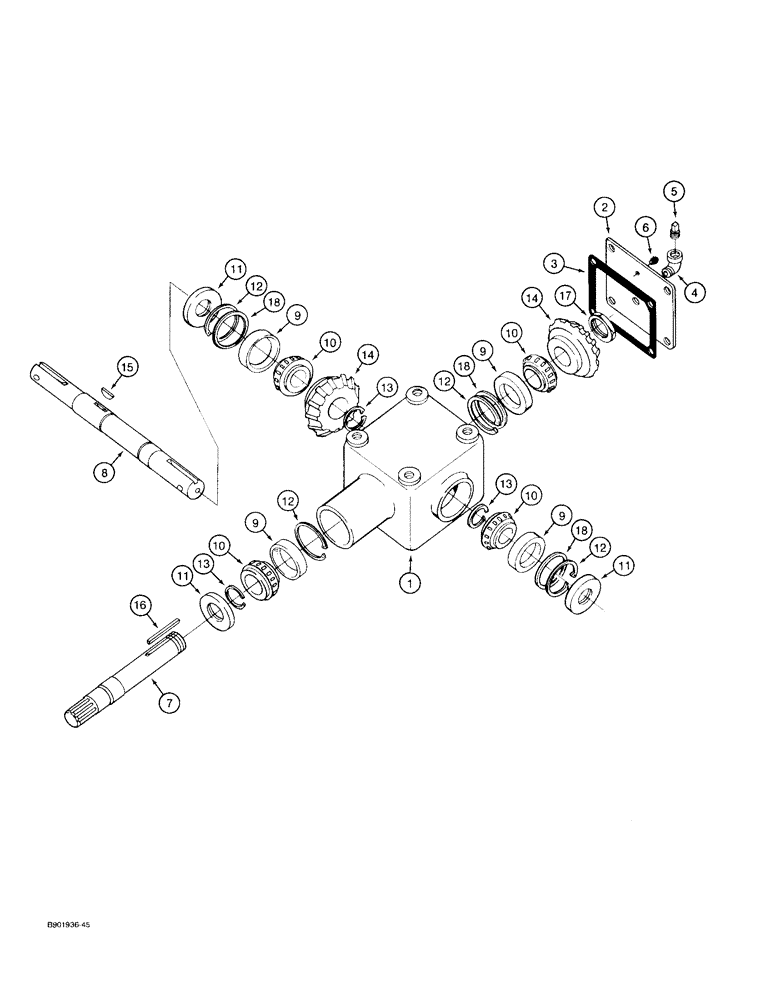

Запчасти Case IH 70 (9-08) - GEARBOX, MODEL 70 PRIOR TO SERIAL NUMBER 4806, MODEL 80 PRIOR TO SERIAL NUMBER 7870 (09) - CHASSIS

*

821209C95

GEARBOX ASSY

GEARBOX ASSEMBLY - snow blower

1шт.

*

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

Gearbox to main frame gearbox support Hex, 1/2"-13 x 1", G5, Full Thd

4шт.

*

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

4шт.

*

485-13816

SET SCREW,Sq Hd, 3/8"-16 x 1"

SCREW - set, square head, 3/8 NC x 1 inch, cup pt, in joint yoke to gear cross shaft

1шт.

*

425-146

JAM NUT,3/8" - 16, Gr 5

- hex, jam, 3/8 inch NC

1шт.

*

821289C1

KEY

- 3/8 square x 1-7/8 inch straight, gearbox to universal joint

1шт.

*

413-656

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

- hex, 3/8 NC x 3-1/2 inch, gearbox to universal joint

1шт.

*

9413979

LOCK NUT,3/8"-16, GC

NUT - hex, self-locking, 3/8 inch NC

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - gearbox

1шт.

2

821438C2

COVER

- gearbox

1шт.

3

821439C2

GASKET

- cover

1шт.

*

413-56

BOLT,Hex, 5/16" - 18 x 3/8", Gr 5

- hex, 5/16 NC x 3/8 inch

4шт.

*

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

4

217-22

ELBOW,90 Degree, 3/8"-18 NPTF, Fem x 3/8"-18 NPTF Male

- street, 90 degree, 3/8 inch PT

1шт.

5

20972R1

DRAIN PLUG,Sq Hd, 3/8"-18 NPTF

PLUG - level, square head, 3/8 inch PT

1шт.

6

18437R91

LUBE NIPPLE,1/8"-27 NPT x .50" lg, Press Relief

VALVE - pressure relief, 1/8 inch PT

1шт.

7

840038C1

SHAFT

- output

1шт.

8

821441C3

SHAFT

- cross

1шт.

9

518819R1

BEARING CUP,69.01mm OD x 15.08mm W

CUP - tapered roller bearing, cross shaft

4шт.

10

779103R91

ROLLER BEARING

BEARING - tapered roller, cross shaft

4шт.

11

820116C91

SEAL

Ring, Snap, , cross shaft bearing, large #150, Ext

3шт.

12

821442C1

RING

shaft oil

4шт.

13

T37909

SNAP RING,#150, Ext

- retaining, cross shaft bearing, small

3шт.

14

821443C1

GEAR

- bevel

2шт.

15

126-134

WOODRUFF KEY,#E, 3/8" x 1 1/4", HT

KEY - 3/8 x 1-1/4 inch, SAE E Woodruff, bevel gear to cross shaft

1шт.

16

485-15012

SET SCREW,Sq Hd, 1/2"-13 x 3/4"

KEY - 3/8 x 1-3/8 inch, square parallel, bevel gear to output shaft

1шт.

17

821444C1

NUT

- hex, self-locking, output shaft gear

1шт.

18

821075C1

KIT

- gear shim

1шт.

*

821445C1

SHIM

- .005 inch

1шт.

*

821446C1

SHIM

- .010 inch

1шт.

*

821447C1

SHIM

- .020 inch

1шт.
