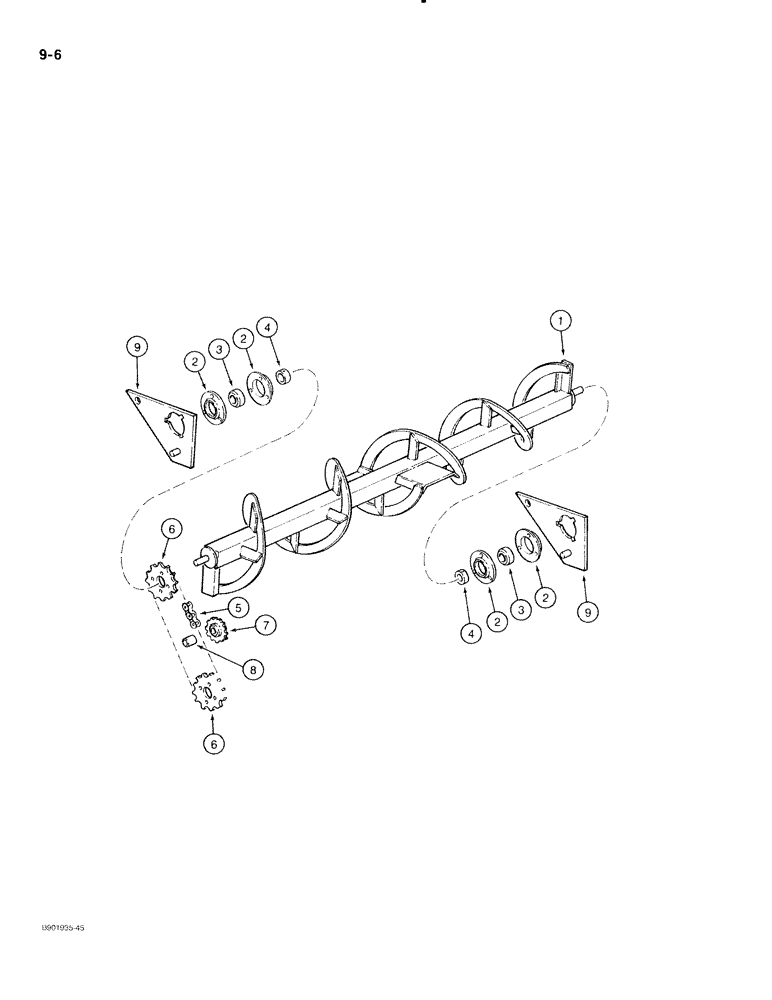

Запчасти Case IH 70 (9-06) - UPPER AUGER AND DRIVE (09) - CHASSIS

1

821218C2

AUGER

- upper, Model 80 only

1шт.

1

821217C3

AUGER

- upper, Model 70 only

1шт.

2

617863R1

FLANGED BEARING

- bearing

4шт.

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

BOLT - carriage, 3/8 NC x 1 inch, flange to main frame side plates and auger support plates

6шт.

425-106

NUT,3/8"-16, Cl 5

6шт.

492-11038

LOCK WASHER,3/8"

6шт.

495-61041

WASHER,10.31mm ID x 25.4mm OD x 1.6mm Thk

- flat, 7/16 x 1 x 5/64 inch

6шт.

3

571588R92

BALL BEARING,1.3755" ID x 72 mm OD x 1"

- auger

2шт.

4

517645R11

COLLAR

ASSEMBLY - bearing locking

2шт.

483-1386

SET SCREW,Hex Soc, 3/8"-16 x 3/8"

SCREW - set, hex socket headless, 3/8 NC x 3/8 inch, cup pt

2шт.

D56051

SNAP RING,#137. Ext

Ring, Snap, #137, Ext, bearing

2шт.

5

REF

INSTRUCTION

CHAIN ASSEMBLY - auger drive, Model 80 only, component parts not serviced separately, use 79 links of 821421C91 roller chain (see below), plus one 821419C1 connecting link and one 821420C1 offset link

1шт.

5

REF

INSTRUCTION

CHAIN ASSEMBLY - auger drive, Model 70 SN 2495 and after, component parts not serviced separately, use 77 links of 821421C91 roller chain (see below) and one 821419C1 connecting link

1шт.

6

821416C1

SPROCKET ASSY.

SPROCKET - auger, drive and driven, 27 teeth

2шт.

426-616

BOLT,Hex, 3/8" - 16 x 1", Gr 8

Sprocket to auger hub Hex, 3/8"-16 x 1", G8, Full Thd

8шт.

492-11038

LOCK WASHER,3/8"

8шт.

7

565442R91

SPROCKET

- drive chain tightener, 17 teeth, Model 80 only

1шт.

413-848

BOLT,Hex, 1/2" - 13 x 3", Gr 5

- hex, 1/2 NC x 3 inch, tightener and spacer to main frame

1шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

1шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

1шт.

495-81287

WASHER,13.49mm ID x 31.75mm OD x 3.4mm Thk

- flat, 17/32 x 1-1/4 x 7/64 inch

2шт.

8

273057R1

SPACER

- tightener, Model 80 only

1шт.

9

821701C1

PLATE

- auger support, Model 70 SN 2495 and after

2шт.

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

- hex, 1/2 NC x 1-1/4 inch

4шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

4шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

4шт.

495-81287

WASHER,13.49mm ID x 31.75mm OD x 3.4mm Thk

- flat, 17/32 x 1-1/4 x 7/64 inch

4шт.

821421C91

CHAIN (AG)

CHAIN - bulk, 5/8 inch x 10 foot

1шт.
