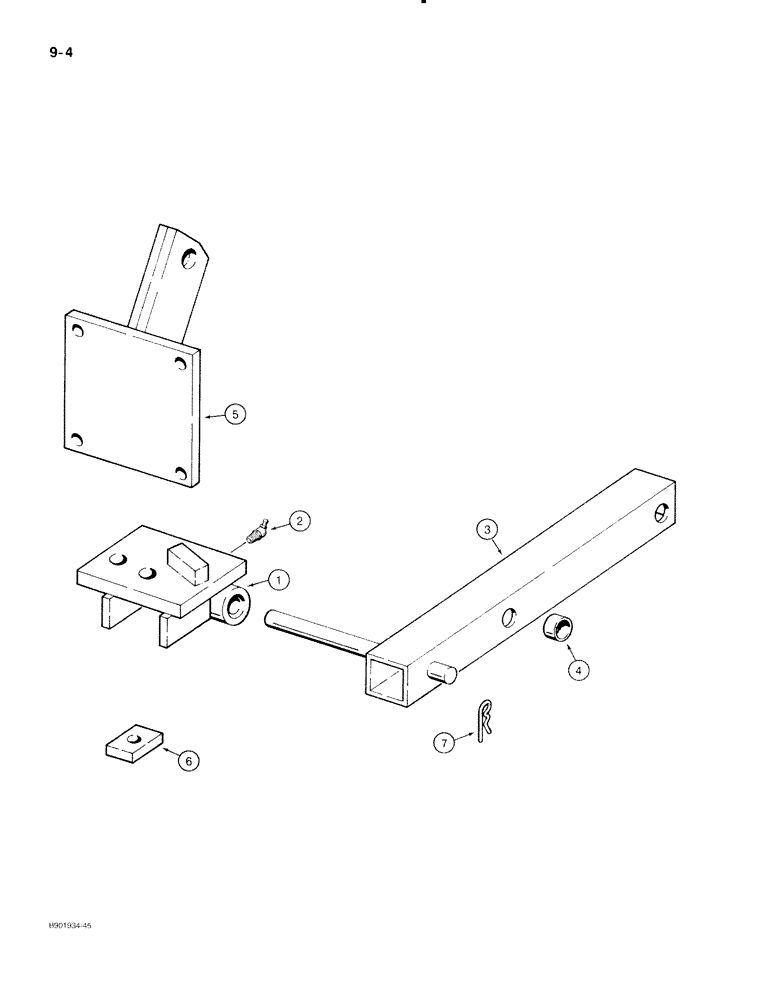

Запчасти Case IH 70 (9-04) - TRACTOR DRAWBAR MOUNTING, WESTERN HITCH, USE WITH 06, 66 AND 86 SERIES TRACTORS (09) - CHASSIS

1

821762C1

PIVOT

- left-hand hitch support

1шт.

1

821763C1

PIVOT

- right-hand hitch support

1шт.

2

219-89

LUBE NIPPLE,45 Degree Elbow, 1/8" NPTF

FITTING - grease, 45º, 1/8 PT self-tap x 25/32 inch

2шт.

413-1248

BOLT,Hex, 3/4" - 10 x 3", Gr 5

- hex, 3/4 NC x 3 inch, pivots to tractor drawbar

4шт.

425-1012

NUT,3/4"-10, G5

- hex, 3/4 inch NC

4шт.

492-11075

LOCK WASHER,3/4"

3/4"

4шт.

3

821759C1

TUBE

- left-hand pivot

1шт.

3

821760C1

SUPPORT

TUBE - right-hand pivot

1шт.

413-1264

BOLT,Hex, 3/4" - 10 x 4", Gr 5

- hex, 3/4 NC x 4 inch, pivot tube to main frame

2шт.

413-1272

BOLT,Hex, 3/4" - 10 x 4-1/2", Gr 5

- hex, 3/4 NC x 4-1/2 inch, pivot tube to main frame

2шт.

425-1012

NUT,3/4"-10, G5

- hex, 3/4 inch NC

4шт.

492-11075

LOCK WASHER,3/4"

3/4"

4шт.

495-81042

WASHER,25/32" x 1 1/2" x .120"

- flat, 25/32 x 1-1/2 x 3/32 inch (use with 4-1/2 inch long bolt)

2шт.

4

821733C1

SPACER

- pivot tube

2шт.

5

821713C1

SUPPORT

- upper, cylinder

1шт.

426-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 8

- hex, 5/8 NC x 1-3/4 inch, grade 8, Upper support and draft opening cover to tractor

4шт.

6

821766C1

BAR

- swinging drawbar stop

1шт.

21401R1

HEADED PIN,3/4" x 2 3/4"

PIN - headed, 3/4 x 2-3/4 inch, stop bar to drawbar

1шт.

7

520175R1

CLIP

PIN - cotter, hair type, 3/16 inch diameter

1шт.
