Запчасти Case IH 54FRS (22) - AUGER, 54 FRS SNOW THROWER

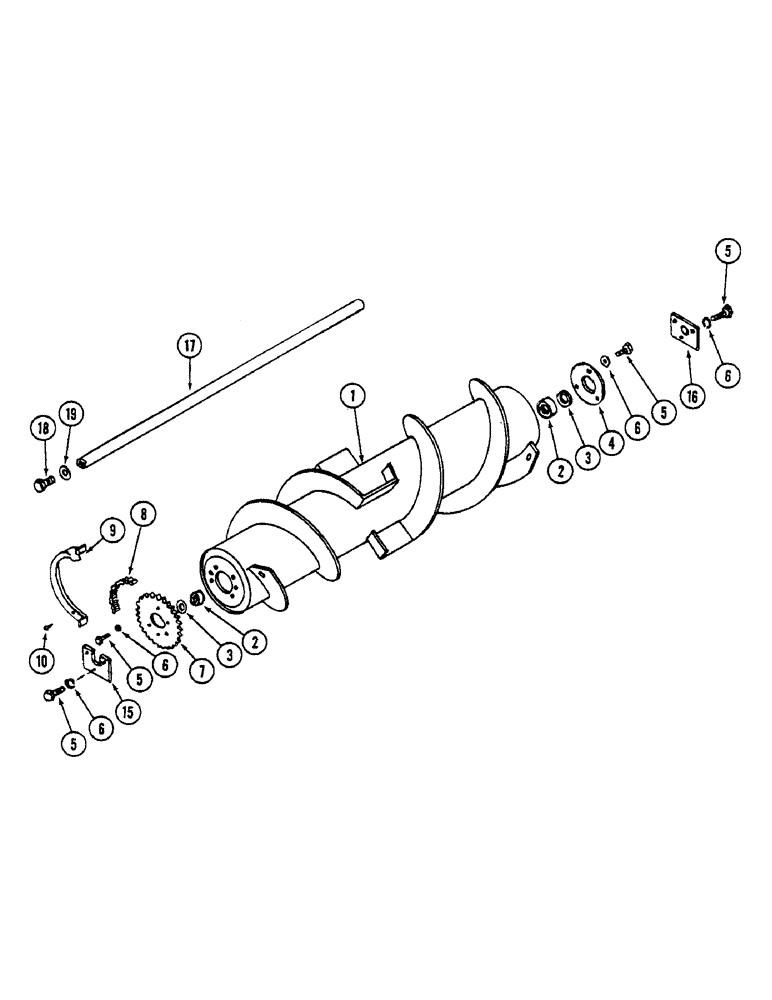

Схема запчастей Case IH 54FRS - (22) - AUGER, 54 FRS SNOW THROWER

Артикул

Название

Примечание

Количество

1

1958399C1

AUGER

- snow thrower

1шт.

2

1958383C1

BALL BEARING,1" ID x 2" OD x 1.0629"

BEARING - ball

2шт.

3

1954930C1

WASHER

- auger shaft

2шт.

4

462360R1

FLANGED BEARING

- auger

1шт.

5

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

1шт.

6

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

1шт.

7

1958341C1

SPROCKET ASSY.

SPROCKET - auger

1шт.

8

NSS

NOT SOLD SEPARAT

CHAIN - auger drive (See note)

1шт.

9

1958343C1

GUARD

- chain

1шт.

10

19-205

SCREW,Hex, 1/4" x 1"

BOLT - hex tapping, 1/4 N.C. x 1 inch

4шт.

15

1958342C1

PLATE

- auger mounting

1шт.

16

1976234C1

DISC

PLATE - auger shaft

1шт.

17

1958340C1

SHAFT

- auger

1шт.

18

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

2шт.

19

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

Выбрано товаров: 15
