Запчасти Case IH 54FRS (20) - AUGER HOUSING AND DISCHARGE CHUTE, 54 FRS SNOW THROWER

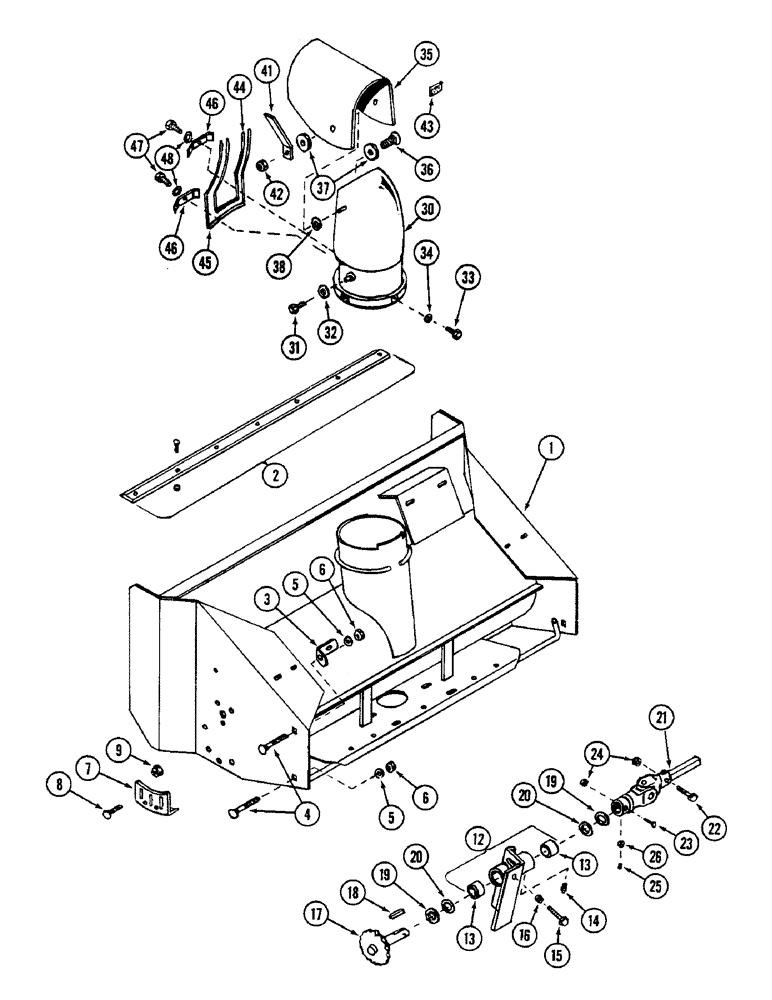

Схема запчастей Case IH 54FRS - (20) - AUGER HOUSING AND DISCHARGE CHUTE, 54 FRS SNOW THROWER

Артикул

Название

Примечание

Количество

1

1976230C1

HOUSING

- auger

1шт.

2

1960260C1

BLADE

REPAIR KIT - scraper blade

1шт.

3

1976298C1

BRACKET

- chain anchor

1шт.

4

1958395C1

BOLT,1/2" - 13 x 3 1/2", Full Thd

- bracket retaining

2шт.

5

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

6

129-105

NUT,Hex, 1/2" - 13, Gr 5

2шт.

7

1976231C1

SHOE

- skid

2шт.

8

111-237

CARRIAGE BOLT,Short NK, 5/16"-18 x 1", G5

BOLT, CARRIAGE, Short NK, 5/16"-18 x 1", G5

6шт.

9

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

6шт.

12

1976296C1

HOUSING

ASSEMBLY - jackshaft

1шт.

13

545319R91

ROLLER BEARING,1" ID x 1.25" OD x 0.875"

BUSHING - roller

2шт.

14

80717

LUBE NIPPLE,45 Degree, 1/8" NPT x 7/8" lg

NIPPLE, LUBE, 45º, 1/8" NPT x 7/8" lg

1шт.

15

718031R1

SET SCREW

BOLT - jackshaft retaining

1шт.

16

NLS

NO LONGER SERVICED

- hex jam, 5/16 inch NC

1шт.

17

1976406C1

SPROCKET ASSY.

SPROCKET - jackshaft

1шт.

18

1954929C1

BUCKET TOOTH KEY

KEY - sprocket retaining

1шт.

19

1954979C1

WASHER

- flat

2шт.

20

1954930C1

WASHER

- jackshaft backup

2шт.

21

1976297C1

SHAFT

JOINT ASSEMBLY - universal

1шт.

22

424536

BOLT - hex, 5/16 NC x 2-1/4 inch, grade 2

1шт.

23

113-110

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

Hex, 5/16"-18 x 2 1/4", G5

1шт.

24

25077R1

LOCK NUT,5/16"-18, GB

NUT, LOCK, 5/16"-18, GB

2шт.

25

139416

SCREW,Hdls Hex Skt, 3/8" - 16 x 5/8"

- hex socket set, 3/8 NC x 5/8 inch

1шт.

26

25932R1

JAM NUT,Jam, 3/8"-16, G5

- hex jam, 3/8 inch NC

1шт.

30

1958347C1

SPOUT, DISCHARGE

CHUTE - discharge

1шт.

31

113-1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

1шт.

32

21871R1

WASHER

- flat, 9/32 x 1 x 3/64 inch

1шт.

33

113-2

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

4шт.

34

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

4шт.

35

1958351C1

DEFLECTOR

- chute

1шт.

36

111-237

CARRIAGE BOLT,Short NK, 5/16"-18 x 1", G5

BOLT, CARRIAGE, Short NK, 5/16"-18 x 1", G5

2шт.

37

21752R1

WASHER

- flat

4шт.

38

178566

WASHER - internal/external lock, 3/8 inch

2шт.

41

1958353C1

STRAP

- locking

2шт.

42

25077R1

LOCK NUT,5/16"-18, GB

NUT, LOCK, 5/16"-18, GB

1шт.

43

1958352C1

PAD

- deflector

1шт.

44

1958348C1

GUARD

WIRE - guard, small

1шт.

45

1958349C1

GUARD

WIRE - guard, large

1шт.

46

1958350C1

BRACKET

- guard

2шт.

47

113-4

BOLT,Hex, 1/4" - 20 x 1", Gr 5

2шт.

48

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.

Выбрано товаров: 41
