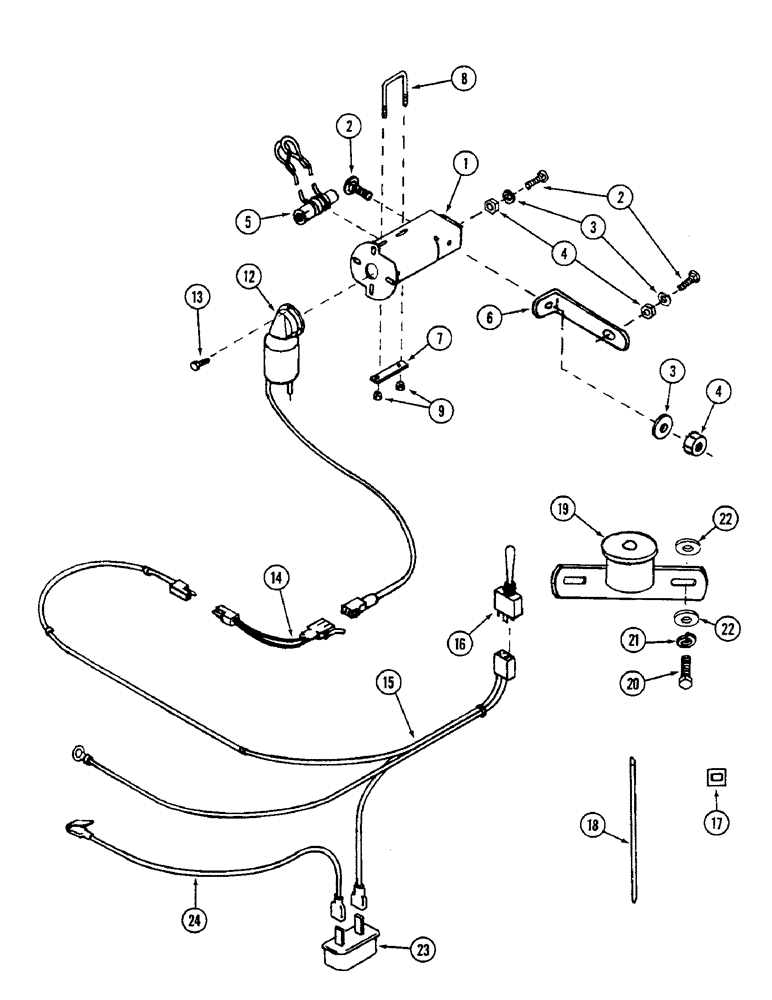

Запчасти Case IH 54FRS (18) - ELECTRIC CHUTE DRIVE, 54 FRS SNOW THROWER

1960244C1

DRIVE PLATE

SHROUD - chute drive

1шт.

2

495967R1

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

BOLT - round head square neck, 3/8 NC x 1 inch

3шт.

3

21752R1

WASHER

- retaining

3шт.

4

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange lock, 3/8 inch NC

3шт.

5

1960245C1

CABLE ASSY.

CABLE - drive

1шт.

6

1960254C1

BRACKET

- level wind

1шт.

7

1960247C1

STRAP

- friction

1шт.

8

1960246C1

U-BOLT

- strap retaining

1шт.

9

273924

SNAP RING

NUT - hex lock, 1/4 inch NC

2шт.

12

1960248C1

MOTOR

ASSEMBLY - chute drive

1шт.

13

23986R1

SELF-TAP SCREW,Hex Wash Hd, 1/4" x 1/2"

SCREW, SELF TAPPING, Hex Wash Hd, 1/4" x 1/2"

3шт.

14

1960256C1

PLUG

ADAPTOR - harness

1шт.

15

1960250C1

ELECTRICAL WIRE

HARNESS - drive

1шт.

16

1960249C1

SWITCH

- chute drive

1шт.

17

1960251C1

CLIP

- retaining

2шт.

18

289862C1

CABLE TIE,3/16" x 7"

STRAP - retaining

2шт.

19

1976313C1

BRACKET

- switch mounting

1шт.

20

814-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

- hex, M8 x 25 MM

2шт.

21

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

22

446363

WASHER,5/16"

- flat, 3/8 x 7/8 x 5/64 inch

4шт.

23

1976315C1

BREAKER

CIRCUIT BREAKER - adaptor harness

1шт.

24

1976232C1

ELECTRICAL WIRE

WIRE - adaptor

1шт.
