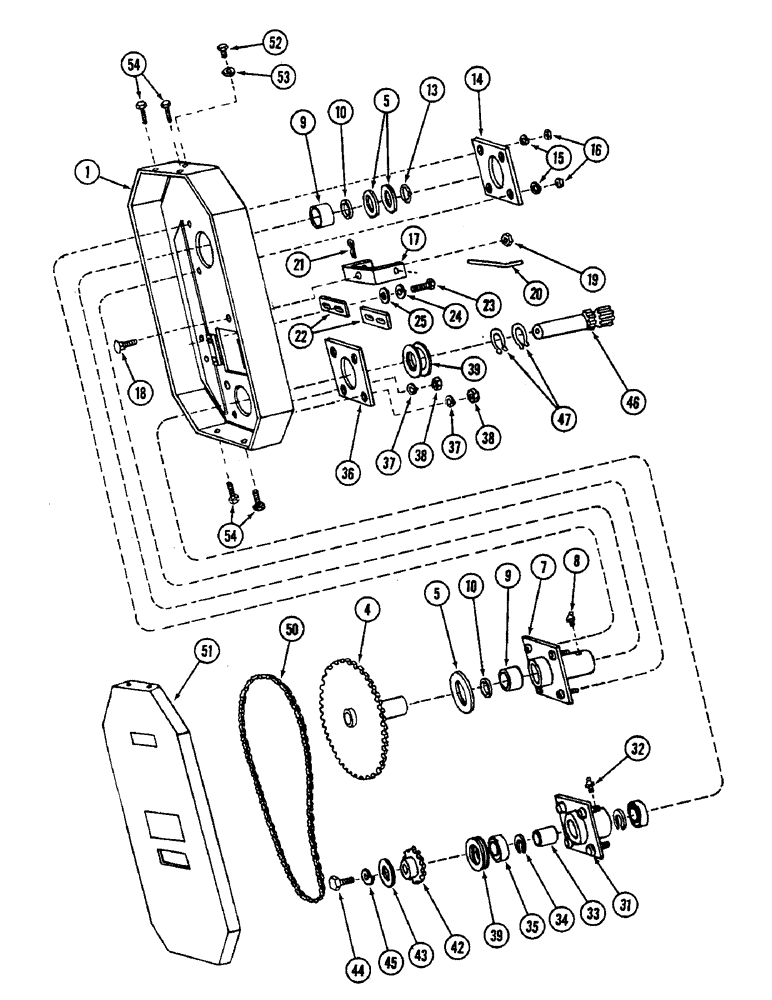

Запчасти Case IH 54FRS (36) - CHAIN BOX, 54 FRS SNOW THROWER

1960501C1

HOUSING

CHAIN BOX ASSEMBLY - snow thrower

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - chain box (Order 1960501C1)

1шт.

4

1960504C1

SPROCKET ASSY.

SPROCKET - chain box

1шт.

5

1960505C1

WASHER

- support

3шт.

7

1960502C1

HOUSING

- bearing

1шт.

8

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease

1шт.

9

360665R91

NEEDLE BEARING,Needle, 44.44mm ID x 53.99mm OD x 25.4mm W

- needle

2шт.

10

1960503C1

OIL SEAL

- oil

2шт.

13

21269R1

SNAP RING,#175, Ext

Ring, Snap, #175, Ext

1шт.

14

1960516C1

LARGE PLATE

PLATE - support

1шт.

15

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

16

129-125

NUT,1/2"-20, G5

4шт.

17

1960511C1

SUPPORT

BRACKET - mounting

1шт.

18

111-541

CARRIAGE BOLT,Short NK, 1/2"-13 x 1 1/4", G5, Full Thd

BOLT, CARRIAGE, Short NK, 1/2"-13 x 1 1/4", G5, Full Thd

1шт.

19

9413967

LOCK NUT,1/2"-13, GB

NUT - hex lock, 1/2 inch NC

1шт.

20

1960512C1

PIN

- locating

1шт.

21

407207C1

PIN - hair (Package of 50)

1шт.

22

1960510C1

SUPPORT

BRACKET - locating

2шт.

23

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

4шт.

24

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

25

195-104

WASHER,3/8"

- flat, 7/16 x 1 x 5/64 inch

4шт.

31

1960519C1

HOUSING

- bearing

1шт.

32

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease

1шт.

33

1960479C1

SPACER

- bearing

1шт.

34

456736R1

SNAP RING,2.062", Int, #206

Ring, Snap, 2.062", Int, #206

2шт.

35

295109R91

BALL BEARING

- ball

2шт.

36

1960516C1

LARGE PLATE

PLATE - support

1шт.

37

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

38

129-125

NUT,1/2"-20, G5

4шт.

39

1954979C1

WASHER

- flat

4шт.

42

1960507C1

SPROCKET ASSY.

SPROCKET - chain box

1шт.

43

1960508C1

WASHER

- sprocket

1шт.

44

114-406

BOLT,Hex, 1/2" - 20 x 1-1/2", Gr 5, Full Thd

1шт.

45

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

46

1960506C1

SHAFT

- sprocket

1шт.

47

758318C1

SNAP RING,#98, Ext

Ring, Snap, #98, Ext

1шт.

50

NSS

NOT SOLD SEPARAT

CHAIN ASSEMBLY - main (See note)

1шт.

51

1960514C1

COVER

- chain box

1шт.

52

113-1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

1шт.

53

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

1шт.

54

187-1030

SELF-TAP SCREW,Hex Washer, 5/16" - 18 x 3/4"

BOLT - self tapping

4шт.
