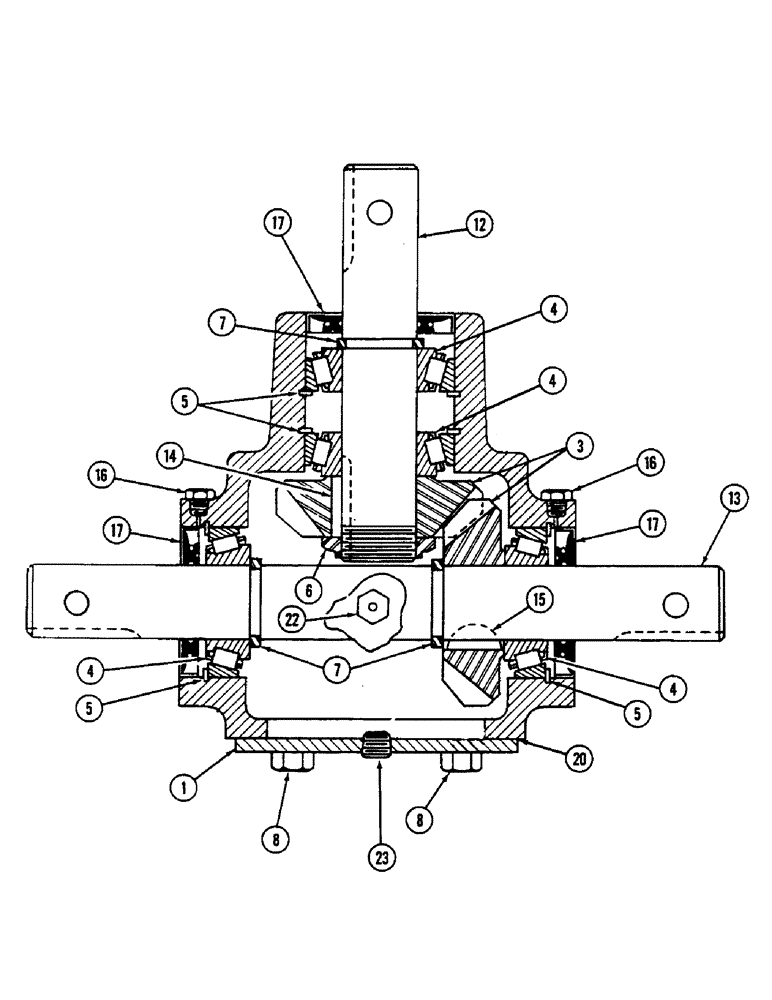

Запчасти Case IH 54FMS (46) - GEARBOX, 54 FMS SNOW THROWER

1976290C1

GEARBOX ASSY

GEARBOX ASSEMBLY - snow thrower

1шт.

1

1973042C1

COVER

- gearbox

1шт.

3

1973043C1

GEAR

- bevel

2шт.

4

1973044C1

BEARING ASSY

BEARING - gearbox

4шт.

5

1973045C1

RING

- retaining

4шт.

6

1973046C1

NUT

- retaining

1шт.

7

1958290C1

RING, SNAP

RING - retaining

3шт.

8

113-101

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

4шт.

12

1973047C1

SHAFT

- input

1шт.

13

1973048C1

SHAFT

- output

1шт.

14

1973049C1

BUCKET TOOTH KEY

KEY - square

1шт.

15

126-117

WOODRUFF KEY,#91, 1/4" x 3/4", HT

- Woodruff, 1/4 x 3/4 inch

1шт.

16

444688

PLUG

- hex socket, 1/8-27 inch

3шт.

17

1973050C1

SEAL

- oil

3шт.

20

1973051C1

GASKET

- cover

1шт.

1973052C1

SHIM

- bearing

1шт.

22

1973053C1

PLUG

- vent

1шт.

23

1973054C1

PLUG

- retaining

1шт.
