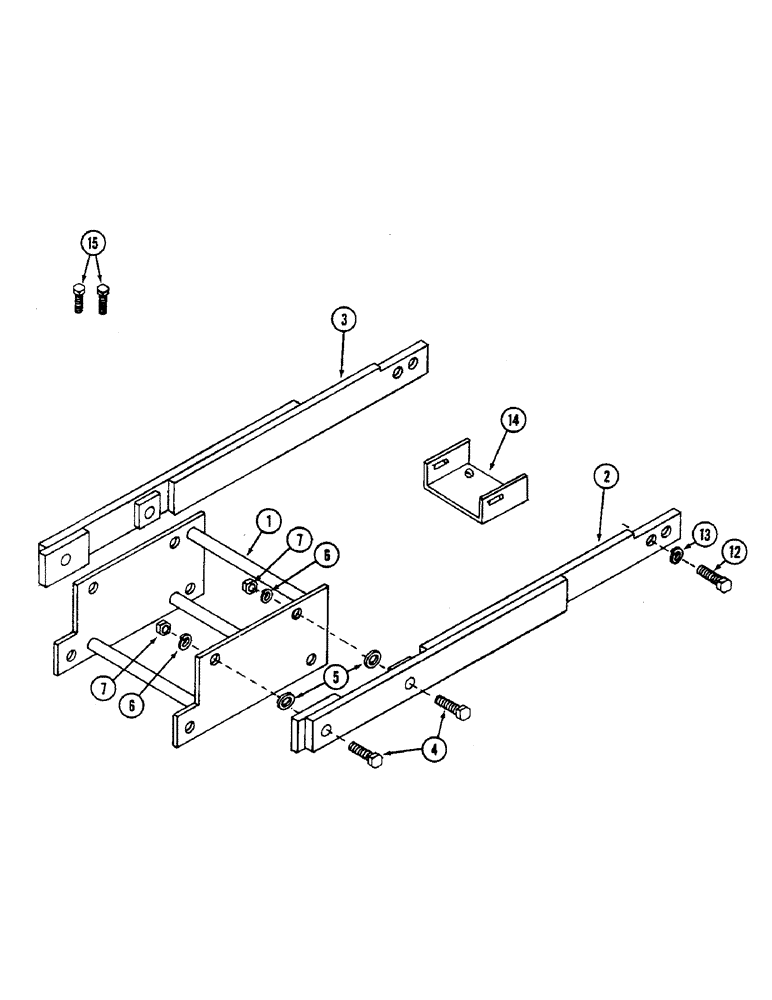

Запчасти Case IH 54FMS (50) - ANCHOR SUPPORT, 54 FMS SNOW THROWER

1

1958467C1

ANCHOR

SUPPORT - mounting anchor, front

1шт.

2

1976408C1

SUPPORT

- anchor, left

1шт.

3

1976409C1

SUPPORT

- anchor, right

1шт.

4

113-621

BOLT,Hex, 5/8" - 11 x 2-3/4", Gr 5

4шт.

5

195-108

WASHER,5/8"

- flat, 11/16 x 1-3/4 x 9/64 inch

2шт.

6

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

7

129-107

NUT,5/8"-11, G5

4шт.

12

1958424C1

BOLT,Hex, M12 x 1.25 x 35mm

- support retaining

2шт.

13

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

14

1960518C1

SUPPORT

BRACKET - anchor

1шт.

15

1954987C1

BOLT,Hex, M10 x 1.25 x 50mm

- hex special

2шт.
