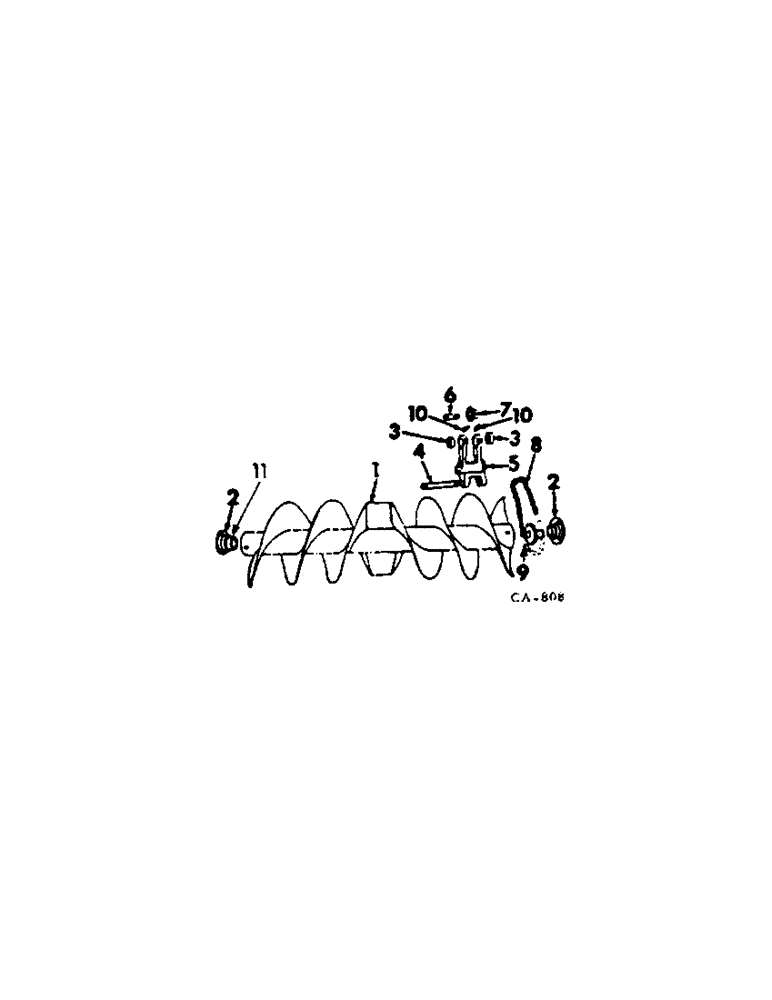

Запчасти Case IH 50 (H-5) - 50 SNOW THROWER, ROTOR

1

542359R1

ROTOR ASSY

1шт.

617941R1

PIN,5/16" x 2", Coiled

1шт.

2

617863R1

FLANGED BEARING

bearing mounting

4шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8-16 x 1 znd sq-nk crg

6шт.

120377

NUT,3/8" - 16, Gr 5

WASHER, 3/8 C-Z med lock

6шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

6шт.

3

387835R91

BEARING, NEEDLE,Needle, 19.04mm ID x 25.41mm OD x 15.88mm W

2шт.

4

397033R1

PIN

mounting

1шт.

177923

COTTER PIN

1/8" x 3/4"

2шт.

5

397032R1

BRACKET

sprocket mounting

1шт.

474088R1

BOLT,Hex, 1/2" - 13 x 3", Gr 5, Full Thd

SCREW, 1/2-13 x 3 C-Z hex-hd

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

6

397034R1

SHAFT

transfer

1шт.

7

542365R1

SPROCKET, rotor driving, 15 teeth

1шт.

19479R1

PIN,1/4" x 2", Coiled

1шт.

8

CHAIN, no. 50 roller, use 65 links of 5/8 pitch roller chain from A 10 ft. roll marked 1791D w/2 offset links 1315D and 1 connecting link 1310D

1шт.

1310D

LINK

#50 single pitch connecting

1шт.

1315D

LINK

#50 single pitch offset

2шт.

9

542361R1

SPROCKET, chain, 28 teeth

1шт.

18773R1

BOLT,Hex, 5/16" - 18 x 4", Gr 2

5/16-18 x 4 znd hex-hd mach

1шт.

9411638

LOCK NUT,5/16"-18, GA

NUT, 5/16-18 C-Z hex. lock

1шт.

10

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, (straight) 1/4"-28 NPT x .54" lg

2шт.

11

543963R91

BEARING W/COLLAR, rotor ball

2шт.
