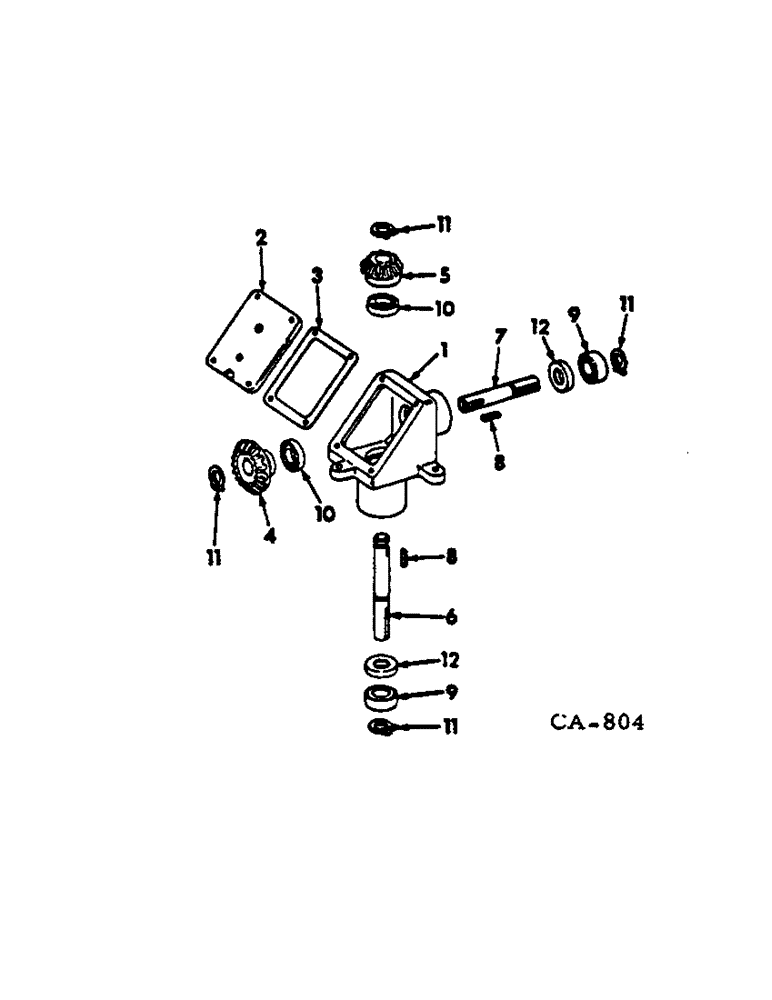

Запчасти Case IH 50 (H-5[A]) - 50 SNOW THROWER, GEAR BOX

1

493541R1

HOUSING

gear box

1шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

SCREW, 3/8-16 x 1-1/4 znd hex-hd cap

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

2

493542R1

COVER

PLATE, cover

1шт.

275-5478

SELF-TAP SCREW,Hex Hd, 1/4" x 1/2"

SCREW, 1/4-14 x 1/2 C-Z hex-hd tap

4шт.

3

493543R1

GASKET

cover plate

1шт.

4

485304R1

GEAR WHEEL

GEAR, output bevel, 30 teeth

1шт.

5

485305R1

PINION

GEAR, input bevel, 20 teeth

1шт.

6

542379R1

SHAFT, input

1шт.

7

542378R1

SHAFT, output

1шт.

8

475642R1

KEY,3/16" Sq x 11/16", Par

3/16 x 11/16 sq parallel

2шт.

9

475627R91

BALL BEARING,19.05mm ID x 41.27mm OD x 12.7mm W

BEARING, ball

2шт.

10

475628R91

BALL BEARING,0.75" ID x 1.625" OD x 0.3125"

ball

2шт.

11

269181R1

SNAP RING,#75, Ext

Ring, Snap, #75, Ext

4шт.

12

485306R1

OIL SEAL

oil

2шт.
