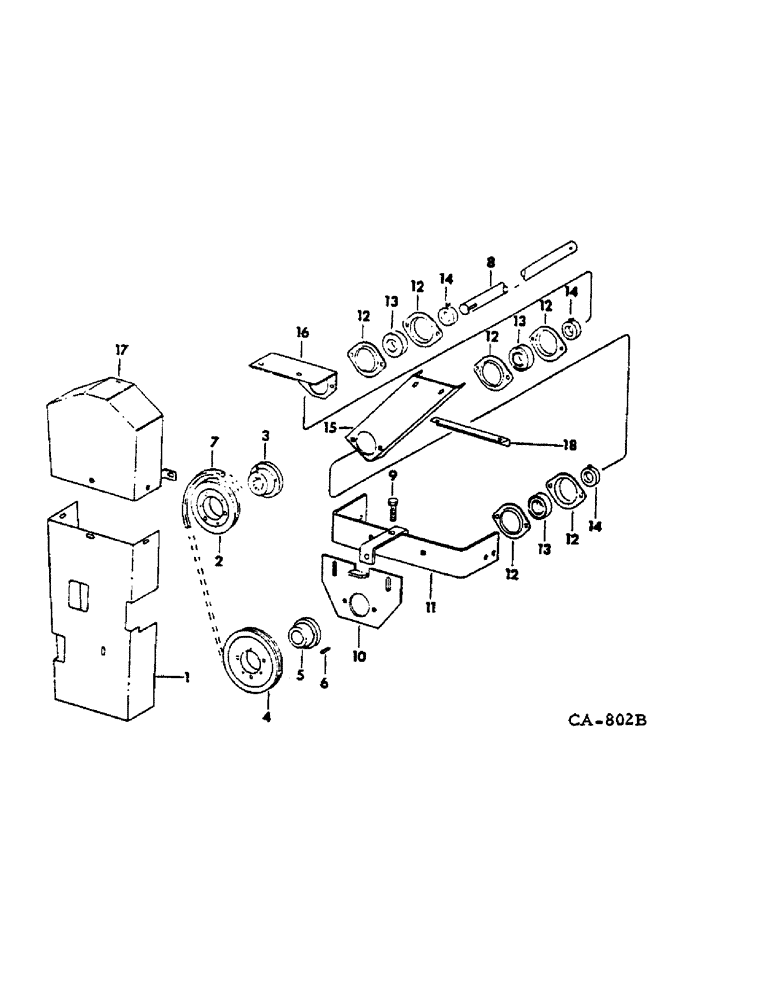

Запчасти Case IH 50 (H-4) - 50 SNOW THROWER, DRIVE AND SUPPORTS

1

542390R1

GUARD, belt

1шт.

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

3шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

SCREW, 5/16-18 x 3/4 znd hex-hd cap

3шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

134238R1

WASHER

11/32 x 1 x 16 ga C-Z

4шт.

2

542386R1

PULLEY

SHEAVE, PTO shaft

1шт.

3

542392R1

HUB

sheave

1шт.

280112

BOLT,Hex, 1/4" - 20 x 1-1/2", Gr 5

3шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

3шт.

4

542388R1

SHEAVE, driven shaft

1шт.

5

542391R1

HUB, sheave

1шт.

6

Q26

KEY,1/4" Sq x 1 1/4", Par

1/4 x 1-1/4 sq parallel

1шт.

7

542389R2

V-BELT,0.38" W x 47.50" L

0.38" W x 47.50" L

2шт.

8

542387R1

SHAFT

1шт.

9

636722R1

SCREW

3/8-16 x 2 CDP hex-hd cap

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

10

542380R1

PLATE ASSY, brg support rear

1шт.

18684R1

BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/4", Gr 2

3/8 x 1-1/4 crg type 1

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 znd hex-hd cap

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

120394

WASHER,3/8", SAE

WASHER, 13/32 x 13/16 x .065 C-Z

2шт.

11

542844R1

BAR, bearing brace

1шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

SCREW, 3/8-16 x 1-1/4 znd hex-hd cap

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

12

612031R1

FLANGED BEARING

ball bearing mounting

6шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16-18 x 3/4 znd sq-nk crg

6шт.

120376

NUT,5/16"-18, G5

6шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

134238R1

WASHER

11/32 x 1 x 16 ga C-Z

6шт.

13

455965R92

BEARING

less locking collar, ball

3шт.

14

455102R21

COLLAR

W/SET SCREW, bearing locking

3шт.

15

58496C1

CHANNEL, bearing mounting

1шт.

12872R1

BOLT,Short NK, 5/16"-18 x 1", G2, Full Thd

CARRIAGE, Short NK, 5/16"-18 x 1", G2, Full Thd

4шт.

134238R1

WASHER

11/32 x 1 x 16 ga C-Z

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

120376

NUT,5/16"-18, G5

4шт.

16

542385R1

BRACKET, front bearing

1шт.

18495R1

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 2

3/8-16 x 1-1/4 znd hex-hd mach

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

80680

LOCK WASHER,3/8 0.381 CST ZND

WASHER, LOCK, 3/8"

2шт.

446548

WASHER,0.38" ID x 0.75" OD x 0.05" Thk

3/8 x 3/4 x .065 C-Z

2шт.

17

491884R11

SHIELD

ASSY, upper

1шт.

88542

BOLT,Hex, 1/4"-20 x 1/2", Gr 5

SCREW, 1/4-20 x 1/2 znd hex-hd cap

1шт.

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

120392

WASHER,1/4", SAE

9/32 x 5/8 x .065 C-Z

1шт.

134238R1

WASHER

11/32 x 1 x 16 ga C-Z

1шт.

18

58497C1

ANGLE, bearing mounting

1шт.
