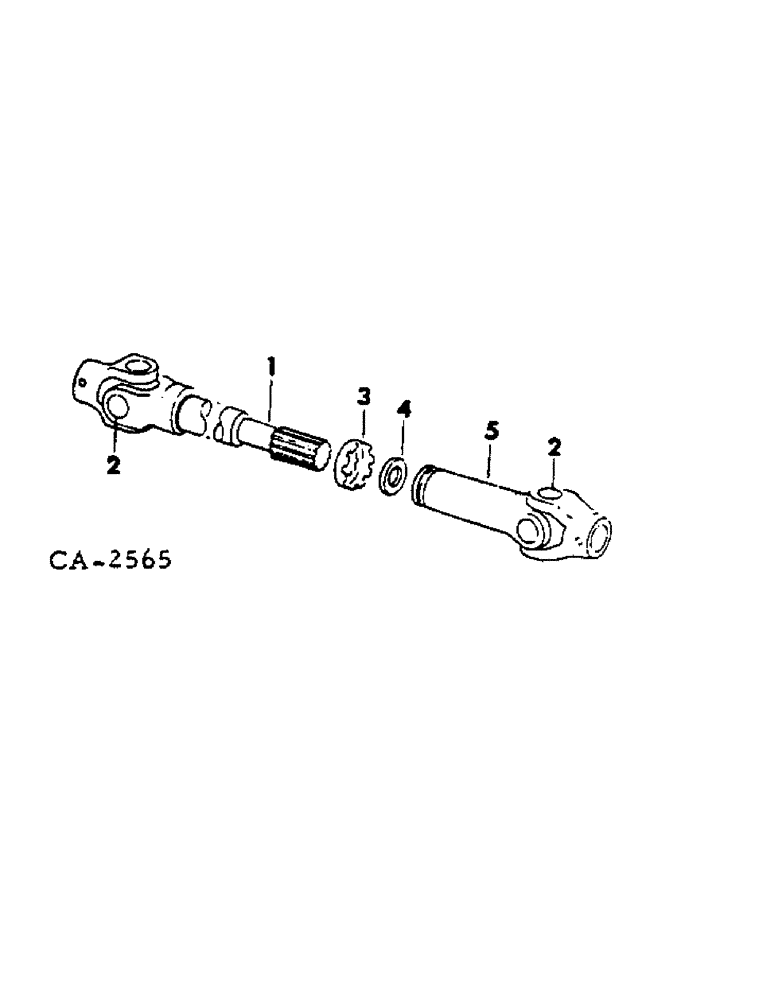

Запчасти Case IH 50 (H-3) - 50 SNOW THROWER, UNIVERSAL DRIVE

542432R91

JOINT ASSY, universal, gear, Serial Range: box-sprocket

1шт.

137218

COTTER PIN,5/32" x 1 1/4"

PIN, SPLIT (COTTER), 5/32" x 1 1/4"

1шт.

413-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

SCREW, 5/16-18 x 1-3/4 znd hex-hd cap

1шт.

9411638

LOCK NUT,5/16"-18, GA

NUT, 5/16-18 CDP hex. lock

1шт.

23770R1

KEY,3/16" Sq x 7/8", Par

3/16 x 7/8 sq parallel

1шт.

542433R91

JOINT

ASSY, universal, gear box to drive shaft

1шт.

137218

COTTER PIN,5/32" x 1 1/4"

PIN, SPLIT (COTTER), 5/32" x 1 1/4"

1шт.

413-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

SCREW, 5/16-18 x 2 znd hex-hd cap

1шт.

9411638

LOCK NUT,5/16"-18, GA

NUT, 5/16-18 CDP hex. lock

1шт.

23770R1

KEY,3/16" Sq x 7/8", Par

3/16 x 7/8 sq parallel

1шт.

1

SHAFT ASSY, drive, not serviced separately, order universal joint

1шт.

2

124348R91

KIT

center cross repair

4шт.

3

124355R1

RETAINER

CAP, retainer

2шт.

4

475609R1

GASKET

RETAINER, grease

2шт.

5

TUBE ASSY, drive, not serviced separately, order universal joint

1шт.
