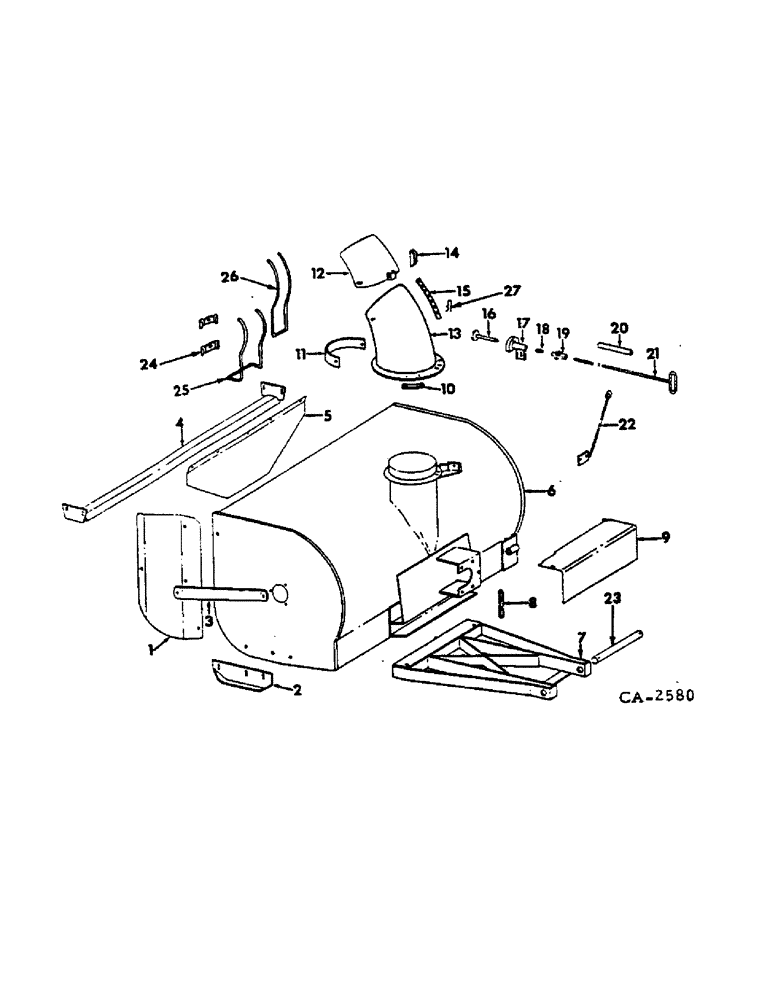

Запчасти Case IH 50 (H-2) - 50 SNOW THROWER, HOUSING AND FRAME

1

542367R1

PLATE, wing RH

1шт.

1

542368R1

PLATE, wing LH

1шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 C-Z sq-nk crg

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

2

542371R1

RUNNER ASSY, RH

1шт.

2

542372R1

RUNNER ASSY, LH

1шт.

18684R1

BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/4", Gr 2

3/8 x 1-1/4 crg type 1

6шт.

120377

NUT,3/8" - 16, Gr 5

6шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

6шт.

446548

WASHER,0.38" ID x 0.75" OD x 0.05" Thk

3/8 x 3/4 x .065 C-Z

6шт.

3

542369R1

BAR, support

2шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8-16 x 1 znd sq-nk crg

2шт.

18684R1

BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/4", Gr 2

3/8 x 1-1/4 crg type 1

2шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

4

542370R1

BLADE ASSY

1шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8-16 x 3/4 znd sq-nk crg

8шт.

18685R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1 1/2", Gr 2

BOLT, 3/8-16 x 1-1/2 znd sq-nk crg

4шт.

274993

SHIELD

3/8-16 C-Z hex. lock

12шт.

120394

WASHER,3/8", SAE

WASHER, 13/32 x 13/16 x .065 C-Z

4шт.

5

542357R1

SUPPORT ASSY.

GUARD, deflector

1шт.

19416R1

BOLT

5/16-18 x 3/4 CDP sq-nk crg

4шт.

120376

NUT,5/16"-18, G5

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

6

542355R1

HOUSING ASSY

1шт.

7

542356R1

FRAME, support

1шт.

121358

YOKE

5/8-18 znd hex.

2шт.

414-1028

BOLT,Hex, 5/8" - 18 x 1-3/4", Gr 5

SCREW, 5/8-18 x 3-1/2 znd hex-hd cap

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

8

542358R1

CHAIN, lifting, 7 links

2шт.

274993

SHIELD

3/8-16 C-Z hex. lock

4шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

SCREW, 3/8-16 x 1-1/4 znd hex-hd cap

4шт.

446548

WASHER,0.38" ID x 0.75" OD x 0.05" Thk

3/8 x 3/4 x .065 C-Z

2шт.

120394

WASHER,3/8", SAE

WASHER, 13/32 x 13/16 x .065 C-Z

4шт.

9

542373R1

GUARD, universal

1шт.

18763R1

BOLT,Hex, 5/16" - 18 x 1/2", Gr 2

5/16-18 x 1-1/2 znd hex-hd mach

2шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16-18 x 3/4 znd sq-nk crg

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

495-21031

WASHER,1/4"

5/16 x 3/4 x .065 C-Z

4шт.

10

397040R1

SUPPORT

CLIP, retainer

3шт.

18626R1

CARRIAGE BOLT,Short Sq Nk, 1/4" - 20 x 1/2", Gr 2

BOLT, 1/4-20 x 1/2 znd sq-nk crg

6шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

6шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

6шт.

11

542366R1

PLATE, chute safety

1шт.

12

542363R1

CAP, deflector

1шт.

13

542362R1

CHUTE, snow

1шт.

14

397039R1

NUT ASSY, wing

2шт.

120394

WASHER,3/8", SAE

WASHER, 13/32 x 13/16 x .065 C-Z

2шт.

15

542364R1

BAR, chute locking

1шт.

18659R1

BOLT,Hex, 1/4" - 20 x 2", Gr 2

1/4-20 x 2 znd hex-hd mach

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

16

62415C2

SPROCKET ASSY.

SPROCKET ASSY, chute adj, 12 teeth, replaces 397041R1

1шт.

17

397044R1

SUPPORT

bearing

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16-18 x 3/4 znd sq-nk crg

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

495-21031

WASHER,1/4"

5/16 x 3/4 x .065 C-Z

1шт.

18

397042R1

SPRING

1шт.

120169

COTTER PIN,5/32" x 1"

PIN, SPLIT (COTTER), 5/32" x 1"

2шт.

120394

WASHER,3/8", SAE

WASHER, 13/32 x 13/16 x .065 C-Z

1шт.

19

397043R1

JOINT

ASSY, universal

1шт.

20

542375R1

TUBING, plastic

1шт.

21

542374R1

ROD, chute control

1шт.

22

58495C1

SUPPORT, chute rod

1шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8-16 x 3/4 znd sq-nk crg

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

23

542843R1

SHAFT, pivot

1шт.

103409

PIN, SPLIT (COTTER),3/16" x 1 1/2"

2шт.

24

542842R1

CLAMP

deflector guard bracket

2шт.

19282R1

BOLT

1/4-20 x 1/2 CDP sq-nk crg

2шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

25

542845R1

ROD

DEFLECTOR, rod chute side

1шт.

26

542846R1

DEFLECTOR, rod chute center

1шт.

27

480523R1

HAIR PIN COTTER

quick attachable

1шт.
