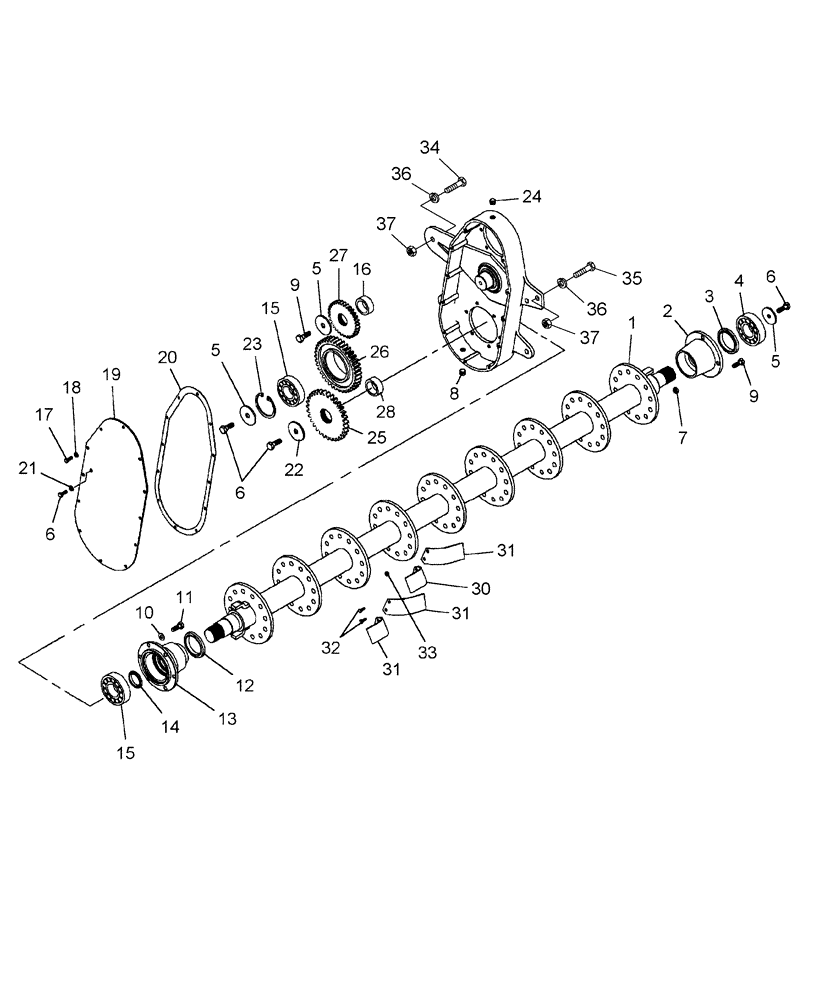

Запчасти Case IH TLX172H (006) - ROTOR

1

CSE9218108

ROTOR

Rotor 72"

1шт.

1

CSE9220108

ROTOR

Rotor 80"

1шт.

2

CSE0100030

SUPPORT

Support, Rotor, R.H.

1шт.

3

ME0000504

SEAL PROTECTION

Gasket, 45x65x10mm

1шт.

4

ME0000415

ROLLER BEARING

Bearing

1шт.

5

ME0100087

WASHER

Washer, 12x60mm

3шт.

6

ME0000108

BOLT

Bolt, M12x16mm

4шт.

7

100016

NUT,M10 x 1.5, Cl 8

4шт.

8

ME0000801

PLUG

Plug, Exhaust 3/8"

1шт.

9

43140

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8

4шт.

10

PL

PROCURE LOCALLY

Washer, D10

6шт.

11

43139

BOLT,M10 x 1.5 x 25mm, Cl 8.8

6шт.

12

ME0000576

GASKET

Gasket, 55x80x10mm

1шт.

13

CSE9200029

SUPPORT

Support, Rotor, L.H.

1шт.

14

ME0000571

GASKET

Gasket, 55x72x8mm

1шт.

15

ME0000401

ROLLER BEARING

Bearing

2шт.

16

ME1400088

SPACER

Spacer

1шт.

17

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

12шт.

18

PL

PROCURE LOCALLY

Washer, D8

12шт.

19

CSE1300023

TRANSMISSION HOUSING

Cover

1шт.

20

ME1300024

GASKET

Gasket

1шт.

21

PL

PROCURE LOCALLY

Washer

1шт.

22

ME0101087

WASHER

Washer, 12x67mm

1шт.

23

370013

SNAP RING,M90 x 3mm Thk, Internal

1шт.

24

ME0000804

PLUG

Plug, Breather 3/4"

1шт.

25

ME1302027

GEAR

Gear

1шт.

26

ME0100026

GEAR

Gear

1шт.

27

ME1301025

GEAR

Gear

1шт.

28

ME1301087

Spacer

1шт.

29

CSE1300022

TRANSMISSION HOUSING

Housing, Gear

1шт.

30

ME1302177

FAN BLADE

BLADE Blade, Speed, R.H. 72"

18шт.

30

ME1302177

FAN BLADE

BLADE Blade, Speed, R.H. 80"

20шт.

31

ME1302178

FAN BLADE

BLADE Blade, Speed, L.H. 72"

18шт.

31

ME1302178

FAN BLADE

BLADE Blade, Speed, L.H. 80"

20шт.

32

PL

PROCURE LOCALLY

Bolt, M14x1.5x40mm,72"

72шт.

32

PL

PROCURE LOCALLY

Bolt, M14x1.5x40mm, 80"

80шт.

33

PL

PROCURE LOCALLY

Nut, M14x1.5, 72"

72шт.

33

PL

PROCURE LOCALLY

Nut, M14x1.5, 80"

80шт.

34

PL

PROCURE LOCALLY

Bolt, M14x1.5x35

5шт.

35

ME0000116

BOLT

Bolt, M14x25

4шт.

36

PL

PROCURE LOCALLY

Washer, Spring D 14

4шт.

37

PL

PROCURE LOCALLY

Nut, M14x1.5

5шт.
