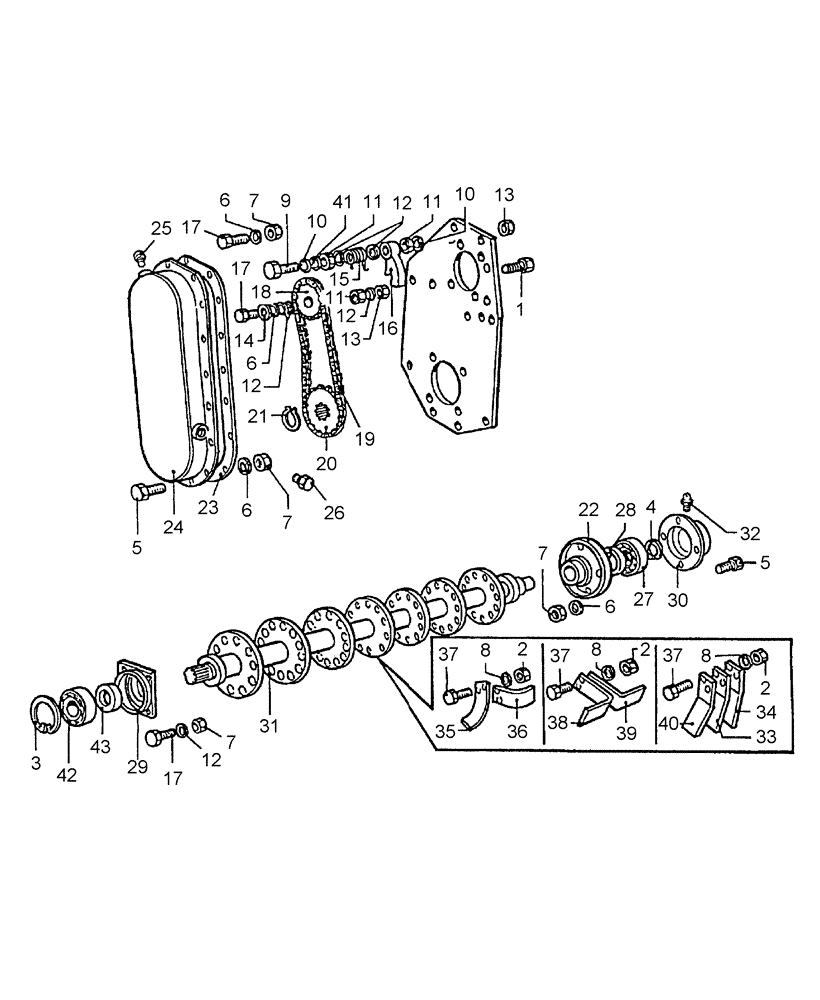

Запчасти Case IH TLX160 (005) - ROTOR

1

9706704

BOLT,Hex, M10 x 1.5 x 41.58mm, Cl 8.8

1шт.

2

PL

PROCURE LOCALLY

Nut, M14x1.5 A

1шт.

3

370013

SNAP RING,M90 x 3mm Thk, Internal

1шт.

4

ME0000602

SNAP RING

Circlip 35 E

1шт.

5

43139

BOLT,M10 x 1.5 x 25mm, Cl 8.8

1шт.

6

PL

PROCURE LOCALLY

Washer, D10

1шт.

7

PL

PROCURE LOCALLY

Nut, M10 A

1шт.

8

PL

PROCURE LOCALLY

Washer, D14

1шт.

9

120071

BOLT,Hex, M10 x 65, 8.8

1шт.

10

PL

PROCURE LOCALLY

Washer, Hardened, D10

3шт.

11

PL

PROCURE LOCALLY

Nut, M10

3шт.

12

PL

PROCURE LOCALLY

Washer, D10

5шт.

13

PL

PROCURE LOCALLY

Nut, M10 B

1шт.

14

PL

PROCURE LOCALLY

Washer, D11x55mm

1шт.

15

ME2000035

SPRING

Spring

1шт.

16

ME2000034

ARM

Tightener, Chain

1шт.

17

PL

PROCURE LOCALLY

Screw, M10x30mm

11шт.

18

ME0801025

DRIVING SPROCKET

Sprocket, Upper

1шт.

19

ME2300900

CHAIN

Chain

1шт.

20

ME2300027

DRIVEN SPROCKET

Sprocket, Lower

1шт.

21

ME0000603

LOCKING RING

Circlip 40 E

1шт.

22

CSE2000029

COVER

Cover, Oil Seal

1шт.

23

ME2300024

GASKET

Gasket

1шт.

24

CSE2300022

FINAL DRIVE HOUSING

Housing, Chain

1шт.

25

ME0000813

PLUG

Plug, Top Breather 3/8"

1шт.

26

ME0000801

PLUG

Plug, Exhaust 3/8"

1шт.

27

37203

BALL BEARING,34.99mm ID x 72mm OD x 17mm W

Bearing, Ball

1шт.

28

ME0000519

SEAL PROTECTION

Seal, Oil, 40x52x10 RP

1шт.

29

CSE2300029

COVER

Cover, Oil Seal

1шт.

30

CSE2000030

COVER

Cover, Bearing

1шт.

31

CSE8715008

ROTOR

Rotor, 60"

1шт.

31

ME8718002

ROTOR

Rotor, 72"

1шт.

32

PL

PROCURE LOCALLY

Nipple, Grease, M10x1mm

1шт.

33

ME1305078

FAN BLADE

BLADE Blade, Flat, Medium

1шт.

34

ME1305079

FAN BLADE

BLADE Blade, Flat, Long

1шт.

35

ME1302178

FAN BLADE

BLADE Blade, Speed, L.H.

1шт.

36

ME1302177

FAN BLADE

BLADE Blade, Speed, R.H.

1шт.

37

PL

PROCURE LOCALLY

Screw, M14x1.5x40mm

1шт.

38

ME1302180

FAN BLADE

BLADE Blade, Angular, L.H.

1шт.

39

ME1302179

FAN BLADE

BLADE Blade, Angular, R.H.

1шт.

40

ME1305077

FAN BLADE

BLADE Blade, Flat, Short

1шт.

41

PL

PROCURE LOCALLY

Washer, D10

2шт.

42

86511837

BALL BEARING

1шт.

42

86511837

BALL BEARING

1шт.

43

ME0000532

SEAL

Seal, Oil, 50x72x8 RP

1шт.
