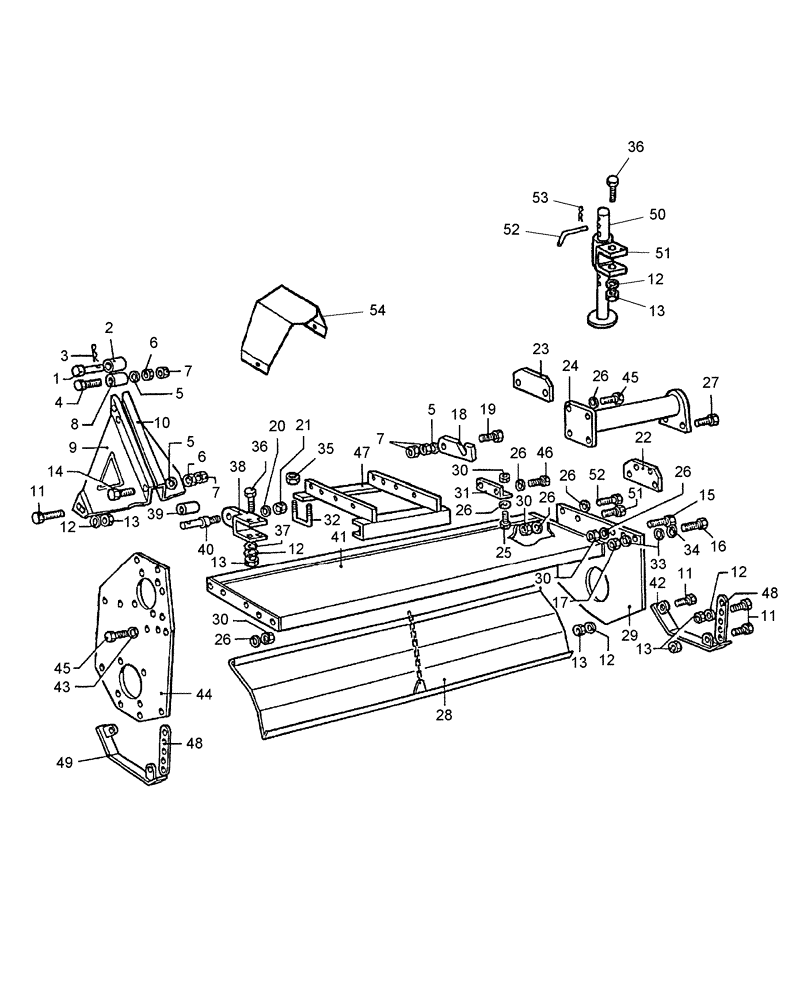

Запчасти Case IH TLX160 (002) - FRAME

1

ME0101083Y

PIN

Pin

1шт.

2

ME2400088

DRIVE BUSHING

Bushing, Third Point

1шт.

3

PL

PROCURE LOCALLY

Pin, Clip

1шт.

4

120248

BOLT,Hex, M16 x 100, 8.8, Full Thd

1шт.

5

PL

PROCURE LOCALLY

Washer, D16

3шт.

6

PL

PROCURE LOCALLY

Nut, M16H

2шт.

7

PL

PROCURE LOCALLY

Nut, M16L

4шт.

8

ME8600085

SPACER

Spacer

1шт.

9

CSE8600053

FRAME

Frame, Side, L.H.

1шт.

10

CSE8600052

FRAME

Frame, Side, R.H.

1шт.

11

PL

PROCURE LOCALLY

Screw, M12x1.5x35mm

8шт.

12

PL

PROCURE LOCALLY

Washer, D12

12шт.

13

PL

PROCURE LOCALLY

Nut, M12x1.5H

12шт.

14

350616

BOLT,M16 x 2 x 90mm, Cl 8.8

1шт.

15

9706704

BOLT,Hex, M10 x 1.5 x 41.58mm, Cl 8.8

1шт.

16

PL

PROCURE LOCALLY

Screw, M14x1.5x60mm

2шт.

17

PL

PROCURE LOCALLY

Nut, M14x1.5H

1шт.

18

CSE1400044

HOOK

Hook, Chain

1шт.

19

614-16050

BOLT,Hex, M16 x 2 x 50mm, Cl 8.8, Full Thd

1шт.

20

PL

PROCURE LOCALLY

Washer, D22

2шт.

21

PL

PROCURE LOCALLY

Nut, M22x1.5 Block

2шт.

22

CSE8600050

SPACER

Plate

1шт.

23

CSE8600051

SPACER

Spacer

1шт.

24

ME1415007

SUPPORT

Support, Upper, R.H., 60"

1шт.

24

CSE8616007

SUPPORT

Support, Upper, R.H., 72"

1шт.

25

43139

BOLT,M10 x 1.5 x 25mm, Cl 8.8

1шт.

26

PL

PROCURE LOCALLY

Washer, D10

1шт.

27

PL

PROCURE LOCALLY

Screw, M12x30mm

2шт.

28

CSE8615003

SHIELD

Shield, Rear, 60"

1шт.

28

CSE8718003

SHIELD

Shield, Rear, 72"

1шт.

29

CSE2300045

FRAME

Frame, Side, R.H.

1шт.

30

PL

PROCURE LOCALLY

Nut, M10H

1шт.

31

CSE0801094

ANGLE

Bracing

1шт.

32

ME0000196

U-BOLT

U-Bolt

1шт.

33

PL

PROCURE LOCALLY

Washer, D14

6шт.

34

PL

PROCURE LOCALLY

Washer, Spring, D14

1шт.

35

PL

PROCURE LOCALLY

Nut, M10H

2шт.

36

PL

PROCURE LOCALLY

Screw, M12x1.5x90mm

5шт.

37

PL

PROCURE LOCALLY

Washer, D12

6шт.

38

CSE8600058

BRACKET

Bracket, Lift

2шт.

39

ME2400093

BUSHING

Bushing

2шт.

40

ME0100081

PIN

Pin

2шт.

41

ME0815001

FRAME

Frame, 60"

1шт.

41

ME8718001

FRAME

Frame, 72"

1шт.

42

ME2000040

SHOE

Skid, R.H.

1шт.

43

PL

PROCURE LOCALLY

Washer, Hardened

4шт.

44

ME0801046

FRAME

Frame, Side, L.H.

1шт.

45

43140

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8

18шт.

46

43138

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8

3шт.

47

CSE0800057

BASE

Base

1шт.

48

CSE1400050

ADJUSTER

Rod

2шт.

49

CSE2000041

SHOE

Skid, L.H.

1шт.

50

ME9200050

JACK

Stand, Jack

1шт.

51

ME0800051

SUPPORT

Support

1шт.

52

ME6201049Y

PIN

Pin

1шт.

53

PL

PROCURE LOCALLY

Pin, Clip

1шт.

54

CSE8701054

SHIELD

Shield, Clutch

1шт.
