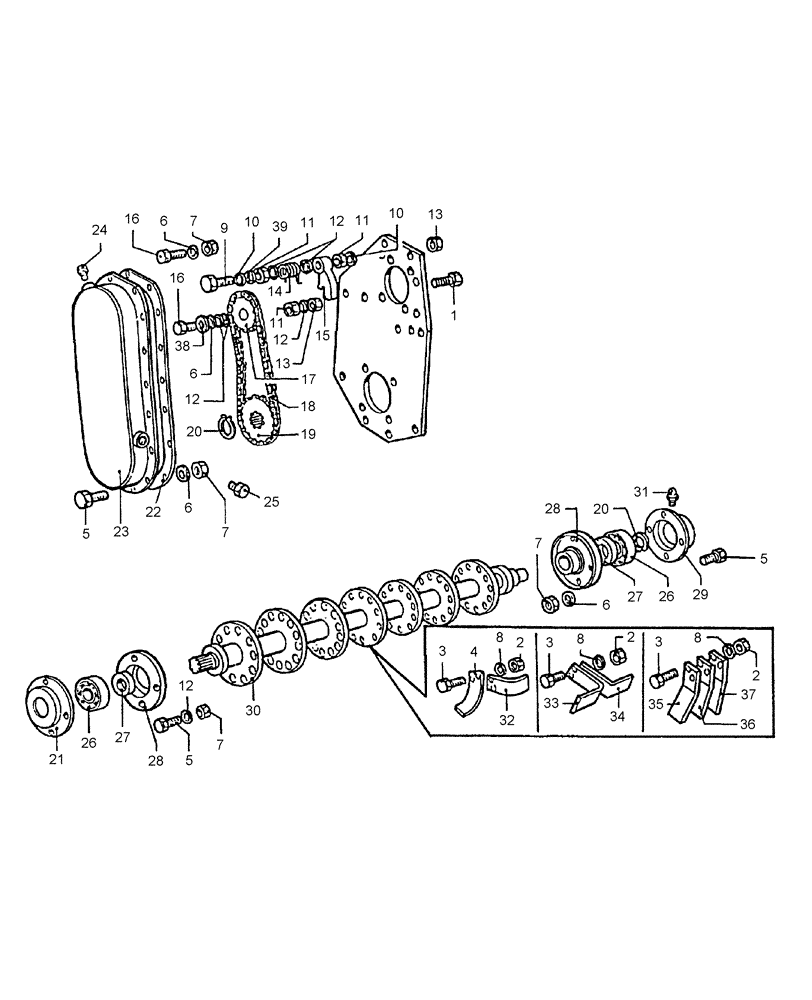

Запчасти Case IH TLX140 (004) - ROTOR

1

9706704

BOLT,Hex, M10 x 1.5 x 41.58mm, Cl 8.8

1шт.

2

PL

PROCURE LOCALLY

Nut, M14x1.5A

1шт.

3

PL

PROCURE LOCALLY

Screw, M14x1.5x40mm

1шт.

4

ME1302178

FAN BLADE

BLADE Blade, Speed, L.H.

1шт.

5

43139

BOLT,M10 x 1.5 x 25mm, Cl 8.8

1шт.

6

PL

PROCURE LOCALLY

Washer, D10

1шт.

7

PL

PROCURE LOCALLY

Nut, M10 A

1шт.

8

PL

PROCURE LOCALLY

Washer, D14

1шт.

9

120071

BOLT,Hex, M10 x 65, 8.8

1шт.

10

PL

PROCURE LOCALLY

Washer, Hardened, D10

3шт.

11

PL

PROCURE LOCALLY

Nut, M10

3шт.

12

PL

PROCURE LOCALLY

Washer, D10

5шт.

13

PL

PROCURE LOCALLY

Nut, M10 B

1шт.

14

ME2000035

SPRING

Spring

1шт.

15

ME2000034

ARM

Tightener, Chain

1шт.

16

PL

PROCURE LOCALLY

Screw, M10x30mm

11шт.

17

ME0800025

DRIVING SPROCKET

Sprocket, Upper

1шт.

18

ME2200900

CHAIN

Chain

1шт.

19

ME2200027

DRIVEN SPROCKET

Sprocket, Lower

1шт.

20

ME0000602

SNAP RING

Circlip, 35 E

1шт.

21

CSE2000031

COVER

Cover, Oil Seal

1шт.

22

ME2000024

GASKET

Gasket

1шт.

23

CSE2000022

CASE

Housing, Chain

1шт.

24

ME0000813

PLUG

Plug, Top Breather, 3/8"

1шт.

25

ME0000801

PLUG

Plug, Exhaust 3/8"

1шт.

27

ME0000519

SEAL PROTECTION

Seal, Oil, 40x52x10 RP

1шт.

26

37203

BALL BEARING,34.99mm ID x 72mm OD x 17mm W

Bearing, Ball

1шт.

28

CSE2000029

COVER

Cover, Oil Seal

1шт.

29

CSE2000030

COVER

Cover, Bearing

1шт.

30

ME8610002

ROTOR

Rotor, 40"

1шт.

30

CSE8613008

ROTOR

Rotor, 52"

1шт.

31

PL

PROCURE LOCALLY

NIpple, Grease, M10x1mm

1шт.

32

ME1302177

FAN BLADE

BLADE Blade, Speed, R.H.

1шт.

33

ME1302180

FAN BLADE

BLADE Blade, Angular, L.H.

1шт.

34

ME1302179

FAN BLADE

BLADE Blade, Angular, R.H.

1шт.

35

ME1305077

FAN BLADE

BLADE Blade, Flat, Short

1шт.

36

ME1305078

FAN BLADE

BLADE Blade, Flat, Short

1шт.

37

ME1305079

FAN BLADE

BLADE Blade, Flat, Long

1шт.

38

PL

PROCURE LOCALLY

Washer, D 11x 55mm

1шт.

39

PL

PROCURE LOCALLY

Washer, Spring

2шт.
