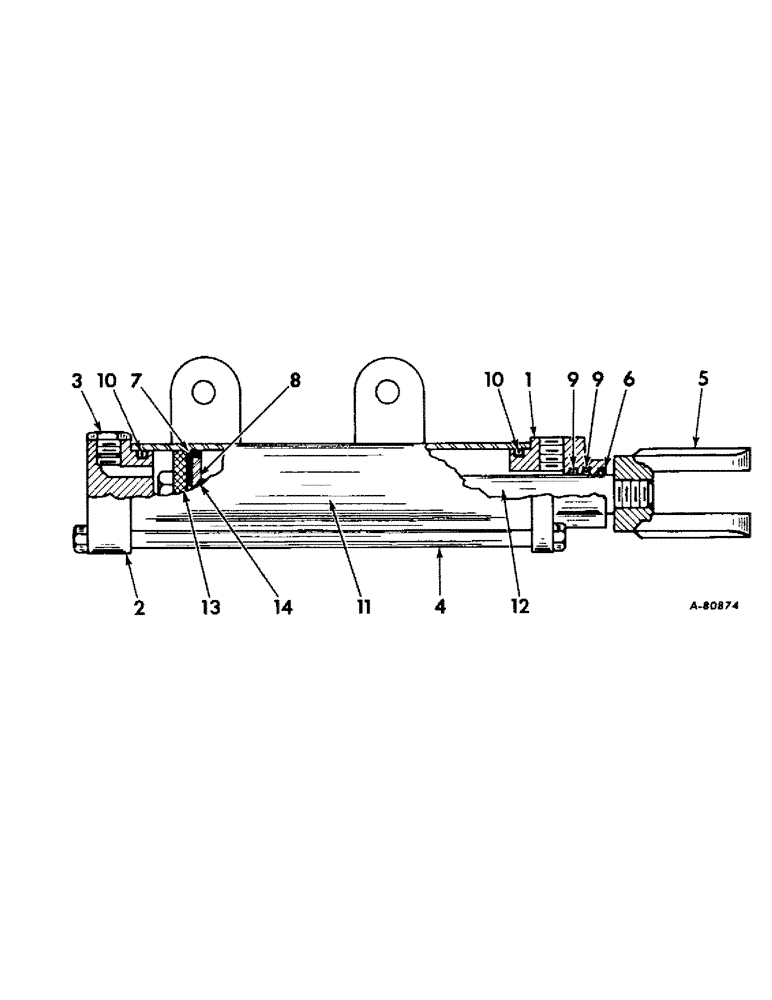

Запчасти Case IH H-1 (M-8) - HYDRAULIC CYLINDER

474797R91

CYLINDER ASSY, 2 x 12 in. single-action hyd

2шт.

1

474802R1

HEAD, hyd cyl

2шт.

2

474803R1

BASE, hyd cyl

2шт.

3

474804R91

PLUG ASSY, breather

2шт.

4

474805R1

ROD, 3/8 tie

8шт.

102635

NUT,3/8"-16, G5

16шт.

5

474806R1

CLEVIS, hyd cyl shaft

2шт.

6

557189R91

SEAL

WIPER, piston shaft

2шт.

7

474808R1

CUP, hyd cyl piston

2шт.

8

474809R1

GASKET, hyd cyl piston

2шт.

9

254954R1

O-RING,0.139" Thk x 1.046" ID, -215, Cl 5, 75 Duro

1-1/16 x 1-5/16 x 1/8, piston shaft seal

4шт.

10

461173R1

O-RING,0.21" Thk x 1.6" ID, -326, Cl 6, 90 Duro

1-5/8 x 2 x 3/16, head & base seal

4шт.

11

474798R91

BARREL W/LUGS, hyd cyl

2шт.

12

474799R1

SHAFT, hyd cyl

2шт.

219753

BACK-UP RING

3/4-16 hex. jam

2шт.

13

474800R1

PISTON, hyd cyl

2шт.

14

474801R1

SPACER, hyd piston cup

2шт.

474807R91

KIT, hyd cyl seal repair, consists of ref. nos. 6, 7, 8, 9 & 10

1шт.
