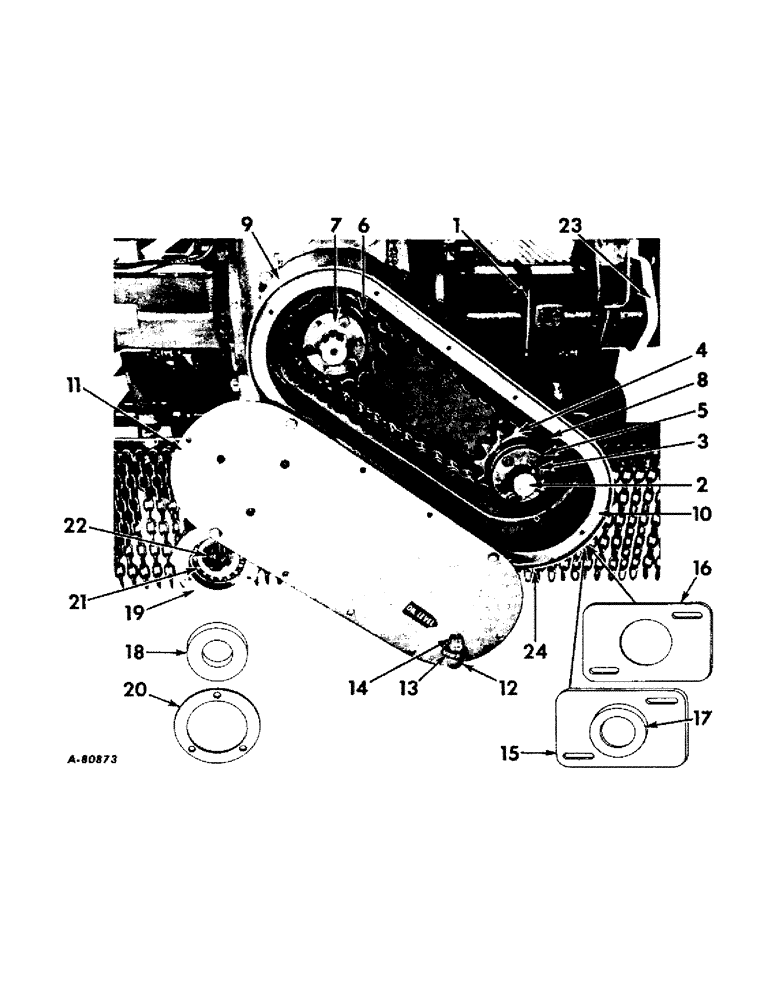

Запчасти Case IH H-1 (M-5) - PTO DRIVE PARTS
№
Артикул
Название
Примечание
Количество
1
474770R1
U-BOLT, rear shaft mounting plate
1шт.
120378
NUT,Hex, 1/2" - 13, Gr 5
NUT, 1/2"-13, G5
2шт.
124589
BALL STUD,Hex, 5/8" - 11 x 2", Gr 5
5/8 C-Z hex.
2шт.
492-11062
BEARING WASHER,5/8"
WASHER, LOCK, 5/8"
2шт.
474088R1
BOLT,Hex, 1/2" - 13 x 3", Gr 5, Full Thd
SCREW, 1/2-13 x 3 C-Z hex-hd cap
2шт.
2
474772R1
COUNTERSHAFT, rear
1шт.
3
2390N
KEY,1/4" Sq x 1 3/4", Par
1/4 x 1-3/4 sq parallel
1шт.
4
474773R1
SPROCKET, driven, 13T
1шт.
5
474774R1
HUB, driven sprocket
1шт.
6
474775R1
SPROCKET, drive, 16 T
1шт.
8
474777R91
CHAIN, power take off roller, 39 links 1 in. pitch cotter pin type roller chain
1шт.
9
474778R91
HOUSING ASSY, PTO chain guard
1шт.
10
474779R1
GASKET, oil box cover
1шт.
11
474780R91
COVER ASSY, oil box
1шт.
12
187397
COUPLING,1/2" NPT, Fem
1/2 pipe
1шт.
88542
BOLT,Hex, 1/4"-20 x 1/2", Gr 5
SCREW, 1/4-20 x 1/2 C-Z hex-hd cap
10шт.
13
108686
ELBOW,90 Degree, 1/2" NPT Street
1/2 90 deg street
1шт.
177923
COTTER PIN
1/8" x 3/4"
1шт.
14
10728P
PLUG
1/2 sq-hd pipe
1шт.
15
474781R91
HOUSING ASSY, oil seal
1шт.
88542
BOLT,Hex, 1/4"-20 x 1/2", Gr 5
SCREW, 1/4-20 x 1/2 C-Z hex-hd cap
2шт.
16559R1
WASHER,1/4"
17/64 x 5/8 x .049 C-Z
2шт.
16
474782R1
GASKET, oil seal housing
1шт.
17
112051R91
SEAL, housing oil
1шт.
18
474783R1
WASHER, 1-3/8 x 2-7/8 x 1/2 felt
1шт.
19
474784R1
HOUSING, outboard brg
1шт.
180122
BOLT,Hex, 3/8" - 16 x 1", Gr 5
3/8-16 x 1 C-Z hex-hd cap
3шт.
120394
WASHER,3/8", SAE
WASHER, 13/32 x 13/16 x .065 C-Z
3шт.
120382
LOCK WASHER,Helical Spring, 3/8"
WASHER, LOCK, 3/8"
3шт.
20
474785R1
GASKET, outboard brg housing
1шт.
21
474786R91
BEARING, ball
1шт.
22
474787R1
SLEEVE, ball brg
1шт.
23
474736R1
U-BOLT, side frame rear mounting
2шт.
492-11062
BEARING WASHER,5/8"
WASHER, LOCK, 5/8"
4шт.
24
187397
COUPLING,1/2" NPT, Fem
1/2 pipe
1шт.
217-519
DRAIN PLUG,Sq Hd, 1/2"-14 NPTF
PLUG, , Pipe Sq Hd, 1/2"-14 NPTF
1шт.
Выбрано товаров: 37
