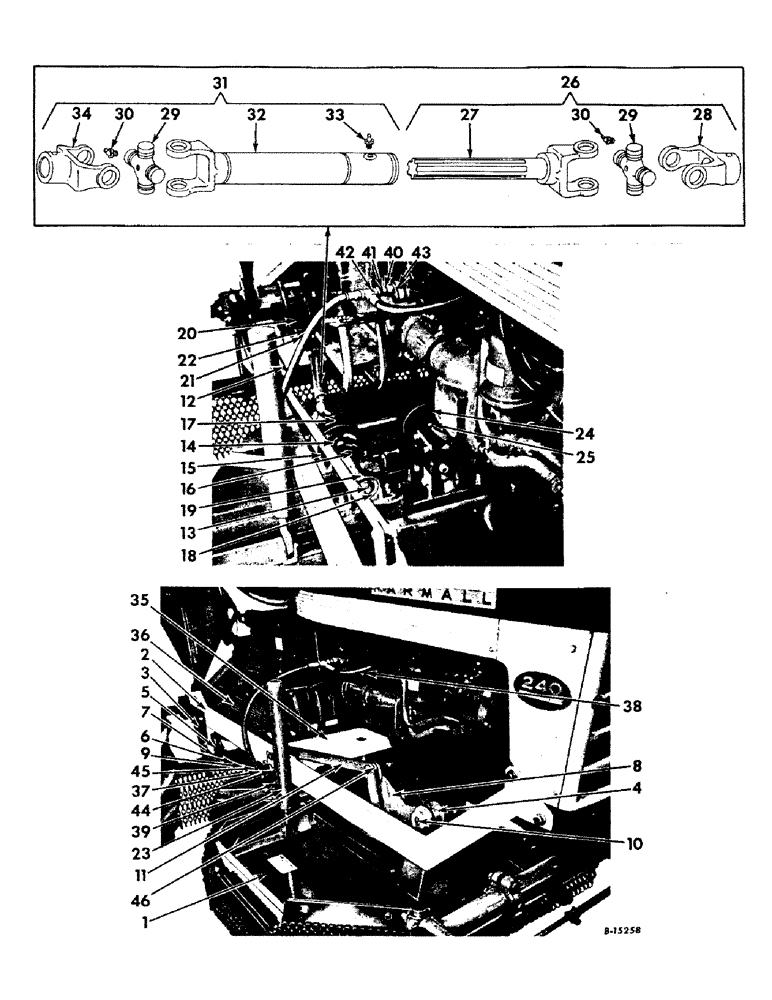

Запчасти Case IH H-1 (M-2) - PLATFORM, PTO DRIVE SHAFT & CONNECTIONS

1

474733R91

PLATFORM ASSY, single spindle

1шт.

2

474734R91

FRAME ASSY, left side

1шт.

2

474735R91

FRAME ASSY, right side

1шт.

272686

ROLLER BEARING,28.565 mm ID x 21.135 mm

NUT, 3/4-16 cd or zn-pltd hex. lock

2шт.

137253

PIN, 3/16 x 1-5/8 cd or zn-pltd cot., in side frame pin for bellcrank

2шт.

88692

BOLT,Hex, 3/4" - 10 x 1 1/2", Gr 5, Full Thd

Side frames to front tractor frame Hex, 3/4"-10 x 1 1/2", G5

4шт.

446257

WASHER,3/4" x 1 3/4" x .148"

13/16 x 1-3/4 x .148 cd or zn-pltd

4шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

4шт.

Q3483

WASHER

1-9/32 x 2 x 11 ga, on side frame pin for bellcrank

2шт.

3

474737R91

PLATE ASSY, left side mounting

1шт.

3

474738R91

PLATE ASSY, right side mounting

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 cd or zn-pltd hex.

4шт.

413-1064

BOLT,Hex, 5/8" - 11 x 4", Gr 5

SCREW, 5/8-11 x 4 cd or zn-pltd hex-hd cap, plate to side frame

1шт.

413-1056

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5

SCREW, 5/8-11 x 3-1/2 cd or zn-pltd hex-hd cap, plate to side frame

3шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

4

109461L

NIPPLE, LUBE, 1/8"-27 x .66 lg, PTF, In side mounting plates

2шт.

5

474739R91

CRANK ASSY, rear bell

1шт.

6

474740R1

PIN, rear bell crank mounting

2шт.

19415R1

LOCK PIN,3/16" x 2 1/2", Slotted

Pin, 3/16" x 2 1/2", Slotted

2шт.

7

474741R1

COLLAR, rear bell crank set

2шт.

102592

SET SCREW,Hex Skt, 3/8" - 16 x 3/8"

SCREW, 3/8-16 x 3/8 hex-soc-hd cup-pt set

2шт.

8

474742R1

CRANK, left front bell

1шт.

8

474743R1

CRANK, right front bell

1шт.

9

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, , PTF 1/8"-27 x .66 lg

2шт.

10

474744R1

PIN, front bell crank mounting

2шт.

11

474745R91

BAR ASSY, parallel

2шт.

N42024

HEADED PIN,15.88mm OD x 44.45mm L

PIN, 5/8 x 1-3/4 std-hd

4шт.

120169

COTTER PIN,5/32" x 1"

PIN, SPLIT (COTTER), 5/32" x 1"

4шт.

396-21066

WASHER,16.66mm ID x 33.33mm OD x 4.27mm Thk

21/32 x 1-5/16 x .095 cd or zn-pltd

4шт.

12

474746R91

SPRING ASSY, parallel bar

2шт.

587406R1

BOLT, 1/2-13 x 6 hex-hd mach

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

13

474765R1

COUNTERSHAFT, platform

1шт.

14

Q73

KEY,3/8" Sq x 1 3/4", Par

3/8 x 1-3/4 sq parallel

1шт.

15

474761R1

SHEAVE, countershaft

1шт.

16

474767R1

HUB, countershaft sheave

1шт.

17

474768R1

V-BELT 40.80" L, V-section drive 40.80" L

3шт.

18

454887R91

BEARING ASSY, pillow block, for platform countershaft

2шт.

443339

NUT

1/2-13 cd or zn-pltd hex. lock

4шт.

180183

BOLT,Hex, 1/2" - 13 x 2 1/4", Gr 5

SCREW, 1/2-13 x 2-1/4 cd or zn-pltd hex-hd cap, pillow block to platform

1шт.

NLS

NO LONGER SERVICED

17/32 x 1-1/16 x .095 cd or zn-pltd

8шт.

19

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, , PTF, In pillow block 1/8"-27 x .66 lg

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

474088R1

BOLT,Hex, 1/2" - 13 x 3", Gr 5, Full Thd

SCREW, 1/2-13 x 3 cd or zn-pltd hex-hd cap, belt adjusting bolt

2шт.

20

474769R91

PLATE ASSY, rear shaft mounting

1шт.

21

474771R91

BEARING ASSY, pillow block, for rear countershaft

2шт.

443339

NUT

1/2-13 cd or zn-pltd hex. lock

4шт.

180183

BOLT,Hex, 1/2" - 13 x 2 1/4", Gr 5

SCREW, 1/2-13 x 2-1/4 cd or zn-pltd hex-hd cap

3шт.

180185

BOLT,Hex, 1/2" - 13 x 2 1/2", Gr 5

SCREW, 1/2-13 x 2-1/2 cd or zn-pltd hex-hd cap

1шт.

120396

WASHER

17/32 x 1-1/16 x .095 cd or zn-pltd

8шт.

22

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, , PTF, In pillow 1/8"-27 x .66 lg

2шт.

23

474797R91

CYLINDER ASSY, 2 x 12 in. single-action hyd, for components see list of parts under details of hydraulic cylinder

2шт.

271796

BOLT,Hex, 3/4" - 16 x 2 3/4", Gr 5

SCREW, 3/4-16 x 2-3/4 cd or zn-pltd hex-hd cap

4шт.

446257

WASHER,3/4" x 1 3/4" x .148"

13/16 x 1-3/4 x .148 cd or zn-pltd

4шт.

24

474761R1

SHEAVE, gear box

1шт.

25

474056R1

HUB

gear box sheave

1шт.

26

474790R91

SHAFT W/UNIVERSAL JOINT, splined

1шт.

27

474791R1

SHAFT WITH YOKE, splined

1шт.

28

474792R1

YOKE, 1-1/2 bore PTO

1шт.

272683

SPINDLE

NUT, 7/16-14 cd or zn-pltd hex. lock

1шт.

180160

SCREW,Hex, 7/16" - 14 x 3"

7/16-14 x 3 cd or zn-pltd hex-hd cap

1шт.

29

474793R91

CROSS WITH NEEDLE BEARINGS

2шт.

30

80717

LUBE NIPPLE,45 Degree, 1/8" NPT x 7/8" lg

FITTING, 1/8-27 PTF 45 deg lub

2шт.

31

474794R91

TUBE W/UNIVERSAL JOINT, splined

1шт.

32

474795R1

TUBE W/YOKE, splined

1шт.

33

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, , PTF, In splined tube 1/8"-27 x .66 lg

1шт.

34

474796R1

YOKE, 1-1/4 bore PTO

1шт.

272683

SPINDLE

NUT, 7/16-14 cd or zn-pltd hex. lock

1шт.

180160

SCREW,Hex, 7/16" - 14 x 3"

7/16-14 x 3 cd or zn-pltd hex-hd cap

1шт.

35

474788R91

GUARD ASSY, belt

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

180177

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

SCREW, 1/2-13 x 1-1/2 cd or zn-pltd hex-hd cap

1шт.

NLS

NO LONGER SERVICED

17/32 x 1-1/16 x .095 cd or zn-pltd

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

36

474789R91

GUARD ASSY, universal joint

1шт.

396-21066

WASHER,16.66mm ID x 33.33mm OD x 4.27mm Thk

21/32 x 1-5/16 x .095 cd or zn-pltd, on guard mounting bolt

1шт.

446257

WASHER,3/4" x 1 3/4" x .148"

13/16 x 1-3/4 x .148 cd or zn-pltd, on guard mounting bolt

1шт.

37

474810R91

HOSE ASSY, hyd 3/8 x 28 in.

1шт.

38

474811R91

HOSE ASSY, hyd 3/8 x 42 in.

1шт.

39

120063

BOLT,Hex, M8 x 80, 8.8

3/8 90 deg street

4шт.

40

144046

REDUCER FITTING,1/2" NPT Male x 3/8" NPT Fem

BUSHING, 1/2 x 3/8 reducting pipe

1шт.

41

121207

PIPE,Nipple, 3/8" NPT x 1"

NIPPLE, 3/8 x 1 pipe

1шт.

42

120280

TEE,3/8" NPT, Fem

3/8 pipe

1шт.

43

474812R91

COUPLING, male half fast hyd

1шт.

44

474748R1

HANGER, stop chain

1шт.

88691

BOLT,Hex, 3/4" - 10 x 1 1/4", Gr 5, Full Thd

Hex, 3/4"-10 x 1-1/4", G5

1шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

1шт.

45

474747R91

BRACKET ASSY, stop chain

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 x 1-3/4 cd or zn-pltd hex-hd cap

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

46

80717

LUBE NIPPLE,45 Degree, 1/8" NPT x 7/8" lg

FITTING, 1/8-27 PTF 45 deg lub

2шт.
