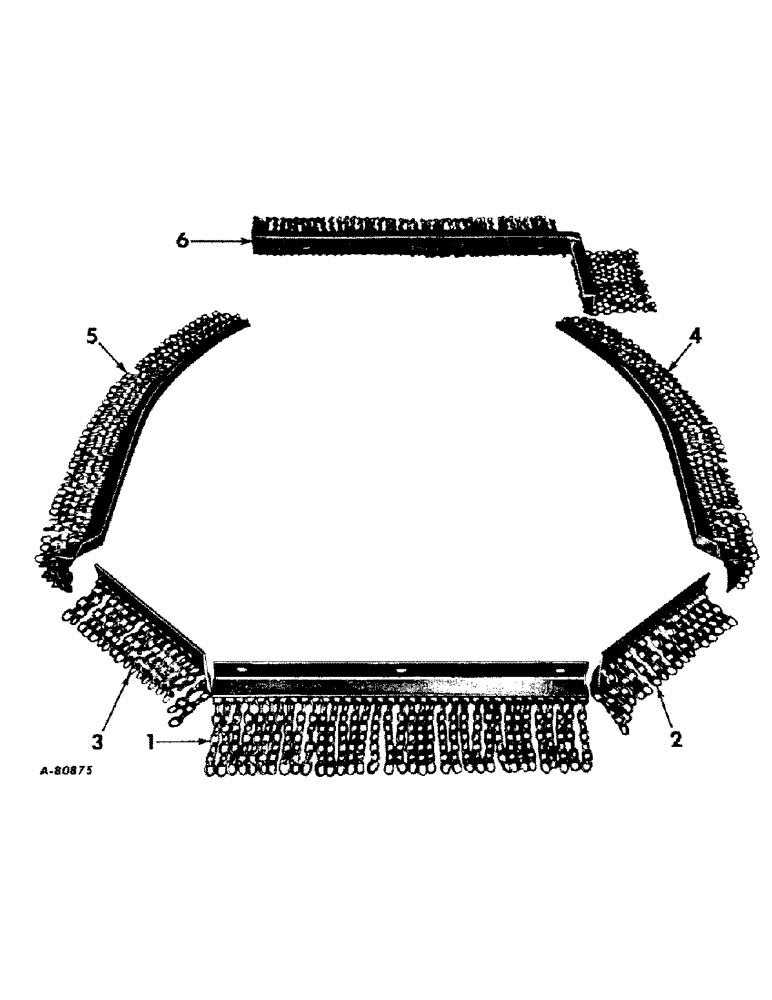

Запчасти Case IH H-1 (M-9) - CHAIN GUARDS

1

474813R91

GUARD ASSY, front center chain

1шт.

Mount w/3 1/2 x 1-1/4 cap screws plus nuts & washers

1шт.

2

474814R91

GUARD ASSY, front left chain

1шт.

W/2 1/2 x 1-1/4 cap screws plus nuts & washers

1шт.

3

474815R91

GUARD ASSY, front right chain

1шт.

W/2 1/2 x 1-1/4 cap screws plus nuts & washers

1шт.

4

474816R91

GUARD ASSY, side left chain

1шт.

Mount w/1 1/2 x 1-1/4 and 2-1/2 x 1-1/2 cap screws plus nuts & washers

1шт.

5

474817R91

GUARD ASSY, side right chain

1шт.

Mount w/1 1/2 x 1-1/4 and 2-1/2 x 1-1/2 cap screws plus nuts & washers

1шт.

6

474818R91

GUARD ASSY, rear chain

1шт.

W/2 1/2 x 1-1/4 cap screws plus nuts & washers

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

15шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

SCREW, 1/2-13 x 1-1/4 cd or zn-pltd hex-hd cap

11шт.

180177

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

SCREW, 1/2-13 x 1-1/2 cd or zn-pltd hex-hd cap

4шт.

120396

WASHER

17/32 x 1-1/16 x .095 cd or zn-pltd

15шт.

120384

WASHER,1/2"

LOCK, 1/2"

15шт.
