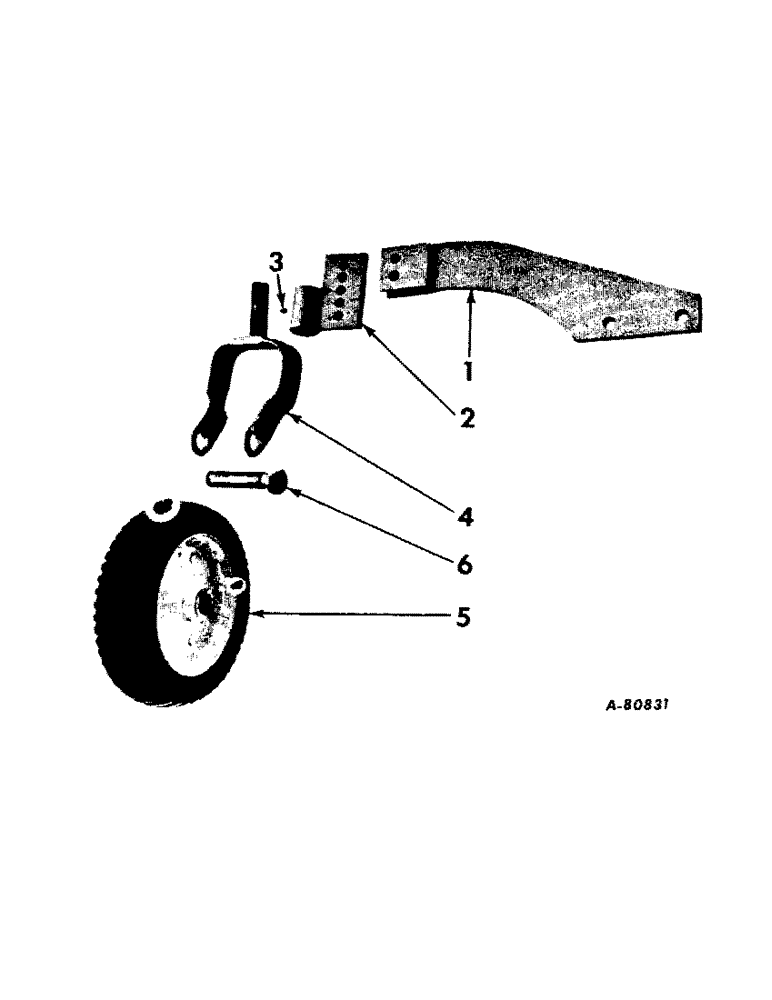

Запчасти Case IH C-4 (L-5[A]) - GUIDE WHEELS

1

474573R91

ARM ASSY, guide wheel

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

180177

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

SCREW, 1/2-13 x 1-1/2 cd or zn-pltd hex-hd cap

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

2

474102R91

ADJUSTER

BUSHING ASSY, adj guide wheel

2шт.

M6091/2

PIN

1/2 x 1-3/4 std-hd

2шт.

120169

COTTER PIN,5/32" x 1"

PIN, SPLIT (COTTER), 5/32" x 1"

2шт.

495-11053

WASHER,1/2", SAE

17/32 x 1-1/16 x .095 cd or an-pltd

2шт.

3

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight, Guide wheel bushing assy 1/4"-28 NPT x .54" lg

2шт.

4

474574R91

YOKE

FORK ASSY, guide wheel

2шт.

137218

COTTER PIN,5/32" x 1 1/4"

PIN, SPLIT (COTTER), 5/32" x 1 1/4"

2шт.

Q3480

WASHER

1-1/32 x 1-1/2 x 11 ga

2шт.

5

474575R91

WHEEL

ASSY, guide

2шт.

487311R1

BUSHING, guide wheel

1шт.

6

474576R1

PIN

wheel axle

2шт.

137253

PIN, 3/16 x 1-5/8 cd or zn-pltd cot.

2шт.

496-21106

WASHER,1 1/16" x 2" x .209", HDN

1-1/16 x 2 x .134 cd or zn-pltd

2шт.
