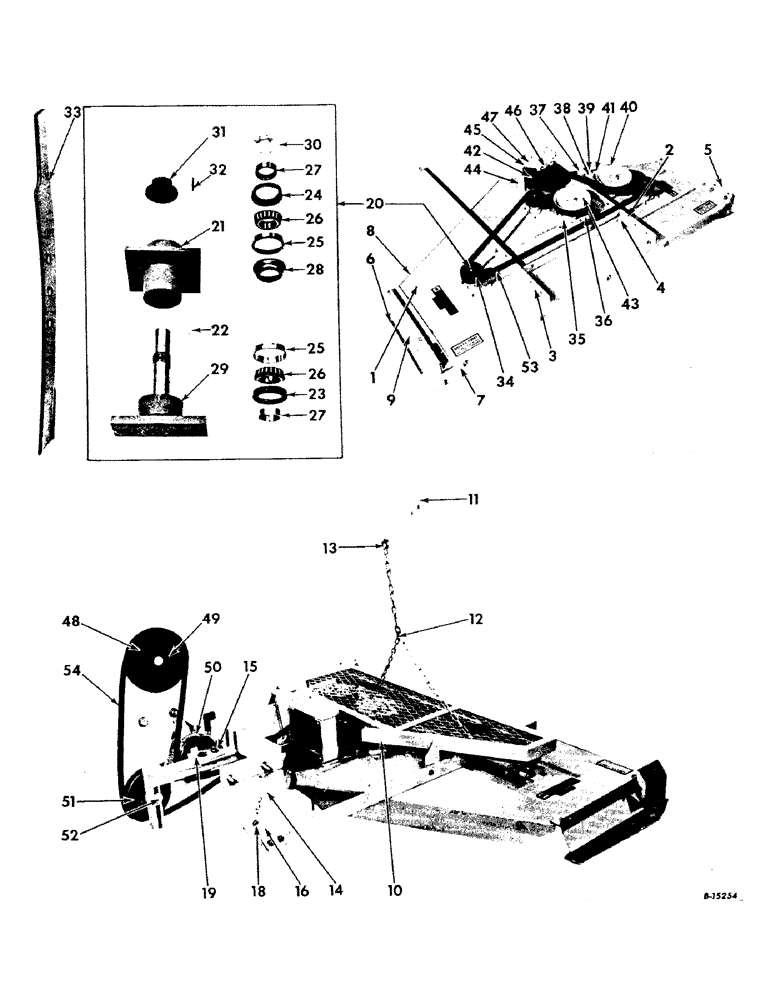

Запчасти Case IH C-4 (L-2) - PLATFORM, SPINDLES, PULLEYS AND MOUNTING PARTS

1

474532R91

PLATFORM ASSY, three spindle

1шт.

2

474533R1

ANGLE, left platform lift

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

3шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

SCREW, 1/2-13 x 1-1/4 cd or zn-pltd hex-hd cap

3шт.

495-11053

WASHER,1/2", SAE

17/32 x 1-1/16 x .095 cd or zn-pltd

3шт.

120384

WASHER,1/2"

LOCK, 1/2"

3шт.

3

474534R1

ANGLE, right platform lift

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

3шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

SCREW, 1/2-13 x 1-1/4 cd or zn-pltd hex-hd cap

3шт.

495-11053

WASHER,1/2", SAE

17/32 x 1-1/16 x .095 cd or zn-pltd

3шт.

120384

WASHER,1/2"

LOCK, 1/2"

3шт.

4

474535R1

ANGLE, platform cross

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

3шт.

180177

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

SCREW, 1/2-13 x 1-1/2 cd or zn-pltd hex-hd cap

3шт.

495-11053

WASHER,1/2", SAE

17/32 x 1-1/16 x .095 cd or zn-pltd

3шт.

120384

WASHER,1/2"

LOCK, 1/2"

3шт.

5

474536R91

SHOE

RUNNER ASSY, left platform

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

SCREW, 1/2-13 x 1-1/4 cd or zn-pltd hex-hd cap

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

6

474537R91

SHOE

RUNNER ASSY, right platform

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

SCREW, 1/2-13 x 1-1/4 cd or zn-pltd hex-hd cap

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

7

474538R1

SHIELD, front platform

1шт.

8

474539R1

SHIELD, rear platform

2шт.

9

474540R1

PLATE, platform side deflector

2шт.

120377

NUT,3/8" - 16, Gr 5

13шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 cd or zn-pltd hex-hd cap, shields & deflector to platform

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

13шт.

120394

WASHER,3/8", SAE

WASHER, 13/32 x 13/16 x .065 cd or an-pltd

9шт.

10

474541R91

GUARD ASSY, platform belt

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

SCREW, 1/2-13 x 1-1/4 cd or zn-pltd hex-hd cap

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

495-11053

WASHER,1/2", SAE

17/32 x 1-1/16 x .095 cd or zn-pldt

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

11

474048R1

ARM, chain lift

1шт.

12

474542R91

CHAIN W/SHACKLE, platform lift

1шт.

13

474050R91

CLEVIS

SHACKLE W/SCREEN PIN

1шт.

180177

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

SCREW, 1/2-13 x 1-1/2 cd or zn-pltd hex-hd cap, chain to platform lift angles

1шт.

495-11053

WASHER,1/2", SAE

17/32 x 1-1/16 x .095 cd or zn-pltd

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

14

474543R91

BRACKET ASSY, rear mounting

1шт.

80280173

BOLT,Hex, 3/4" - 10 x 2 3/4", Gr 5

SCREW, 3/4-10 x 2-3/4 cd or zn-pltd hex-hd cap

4шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

4шт.

15

474044R1

PLATE, mounting bracket spacer, use only when tractor is not equipped w/fast hitch

1шт.

15

474045R1

PLATE, mounting bracket spacer, use only when tractor is not equipped w/fast hitch

2шт.

16

474545R1

BRACKET, right platform pivot

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

443339

NUT

1/2-13 cd or zn-pltd hex. lock

1шт.

180179

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 5

SCREW, 1/2-13 x 1-3/4 cd or zn-pltd hex-hd cap, pivot brackets to mounting bracket

1шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

SCREW, 1/2-13 x 1-1/4 cd or zn-pltd hex-hd cap, pivot brackets to platform angles

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

495-11053

WASHER,1/2", SAE

17/32 x 1-1/16 x .095 cd or zn-pltd

1шт.

17

474544R1

BRACKET, left platform pivot

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

443339

NUT

1/2-13 cd or zn-pltd hex. lock

1шт.

180179

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 5

SCREW, 1/2-13 x 1-3/4 cd or zn-pltd hex-hd cap, pivot brackets to mounting bracket

1шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

SCREW, 1/2-13 x 1-1/4 cd or zn-pltd hex-hd cap, pivot brackets to platform angles

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

495-11053

WASHER,1/2", SAE

17/32 x 1-1/16 x .095 cd or zn-pltd

1шт.

18

474047R1

SPACER

BUSHING, platform pivot

2шт.

19

474051R91

BRACKET ASSY, idler swivel

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

180177

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

SCREW, 1/2-13 x 1-1/2 cd or zn-pltd hex-hd cap

2шт.

495-11053

WASHER,1/2", SAE

17/32 x 1-1/16 x .095 cd or zn-pltd

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

20

474546R91

SPINDLE

W/SHAFT, blade drive

3шт.

21

474547R1

HOUSING

spindle

1шт.

181696

1/2-20 x 1 cd or zn-pltd hex-hd cap

12шт.

120384

WASHER,1/2"

LOCK, 1/2"

12шт.

22

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight, Spindle housing 1/4"-28 NPT x .54" lg

1шт.

23

474548R91

OIL SEAL

housing bottom oil

1шт.

24

474549R91

SEAL

housing top oil

1шт.

25

651817R1

BEARING CUP

BEARING, housing cup

2шт.

26

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

BEARING ASSY, housing cone

2шт.

27

474550R1

BUSHING

SPACER, spindle brg

2шт.

28

474551R1

CUP

CLOSURE, spindle brg

1шт.

29

474552R91

SHAFT

ASSY, spindle

1шт.

219792

COLLAR

NUT, 1-1/4-12 hex. jam

1шт.

30

474553R1

LOCK WASHER

WASHER, spindle shaft star

1шт.

31

474555R1

HUB, spindle sheave

1шт.

474457R1

BOLT,Hex, 1/4" - 20 x 1 3/8", Gr 2

SCREW, 1/4-20 x 1-3/8 cd or zn-pltd hex-hd cap

3шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

3шт.

32

Q53

KEY,1/4" Sq x 1", Par

Spindle sheave hub 1/4" Sq x 1", Par

3шт.

33

474554R1

CUTTER

BLADE, cutter

3шт.

443339

NUT

1/2-13 cd or zn-pltd hex. lock

6шт.

180177

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

SCREW, 1/2-13 x 1-1/2 cd or zn-pltd hex-hd cap

6шт.

34

474556R1

PULLEY

SHEAVE, spindle drive

3шт.

35

474557R91

BRACKET ASSY, platform idler adj

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

160175

SCREW, 1/2-13 x 1-1/4 cd or zn-pltd hex-hd cap

4шт.

495-11053

WASHER,1/2", SAE

17/32 x 1-1/16 x .095 cd or zn-pltd

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

36

474558R91

BRACKET ASSY, idler adj bolt

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 cd or zn-pltd hex.

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 cd or zn-pltd hex. cd or zn-pltd

2шт.

413-1052

BOLT,Hex, 5/8" - 11 x 3-1/4", Gr 5

SCREW, 5/8-11 x 3-1/4 cd or zn-pltd hex-hd cap

1шт.

474391R1

SCREW, 5/8-11 x 4-1/2 cd or zn-pltd hex-hd cap, idler pulley adj bolt

1шт.

446239

WASHER, 5/8 x 1-3/8 x .109

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

37

474559R91

BRACKET ASSY, spring idler

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

SCREW, 1/2-13 x 1-1/4 cd or zn-pltd hex-hd cap

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

38

474560R91

ARM ASSY, idler pivot

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 cd or zn-pltd hex.

1шт.

413-1048

BOLT,Hex, 5/8" - 11 x 3", Gr 5

SCREW, 5/8-11 x 3 cd or zn-pltd hex-hd cap, pivot arm pivot bolt

1шт.

426-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 8

SCREW, 5/8-11 x 2-1/2 cd or zn-pltd hex-hd cap, idler pivot bolt

1шт.

NLS

NO LONGER SERVICED

21/32 x 1-5/16 x .095 cd or zn-pltd

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

446239

WASHER, 5/8 x 1-3/8 x .109 cd or zn-pltd

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

39

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight, in idler pivot arm assy 1/4"-28 NPT x .54" lg

1шт.

40

474561R1

GUIDE, idler spring

1шт.

648002

KNIFE

1/8" x 3/4"

4шт.

495-11053

WASHER,1/2", SAE

17/32 x 1-1/16 x .095 cd or zn-pltd

4шт.

41

474519R1

SPRING, idler compression

2шт.

42

474562R1

SPACER, idler pulley

2шт.

43

663887R91

PULLEY,203.2mm Idler Dia x 214.63mm OD x 48.42mm W

W/BEARING, flat idler

2шт.

44

474563R1

SUPPORT, bottom spindle

1шт.

45

474564R1

SUPPORT, top spindle

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

8шт.

180179

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 5

SCREW, 1/2-13 x 1-3/4 cd or zn-pltd hex-hd cap, support to platform & top to bottom

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

8шт.

46

584148R91

BEARING ASSY,35mm ID x 72mm OD x 25mm W

BEARING, step sheave shaft ball

2шт.

47

474565R1

SHAFT, step sheave

1шт.

Q3482

WASHER

1-5/32 x 1-3/4 x 11 ga, on belt pulley box output shaft

2шт.

48

474566R1

SHEAVE, rear drive

1шт.

49

474567R1

HUB

rear drive sheave

1шт.

180130

BOLT,Hex, 3/8" - 16 x 2", Gr 5

SCREW, 3/8-16 x 2 cd or zn-pltd hex-hd cap

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

50

474052R91

PULLEY

W/BEARING, flat idler

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 cd or zn-pltd hex.

1шт.

426-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 8

SCREW, 5/8-11 x 2-1/2 cd or zn-pltd hex-hd cap

1шт.

446239

WASHER, 5/8 x 1-3/8 x .109 cd or zn-pltd

5шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

51

574097R91

PULLEY

W/BEARING, v-idler

1шт.

52

474053R91

BOLT

ASSY, idler pulley

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 cd or zn-pltd hex.

1шт.

446239

WASHER, 5/8 x 1-3/8 x .109 cd or zn-pltd

4шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

53

474568R1

V-BELT,0.70" W x 160.90" L

Platform spindle 0.70" W x 160.90" L

2шт.

54

474569R1

V-BELT,0.95" W x 132.20" L

Drive 0.95" W x 132.20" L

1шт.

474057R91

GUARD ASSY, rear belt

1шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8-16 x 3/4 cd or zn-pltd hex-hd cap, guard to tractor belt pulley box

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 cd or zn-pltd hex-hd cap, guard to rear mounting bracket

1шт.

120394

WASHER,3/8", SAE

WASHER, 13/32 x 13/16 x .065 cd or an-pltd

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.
