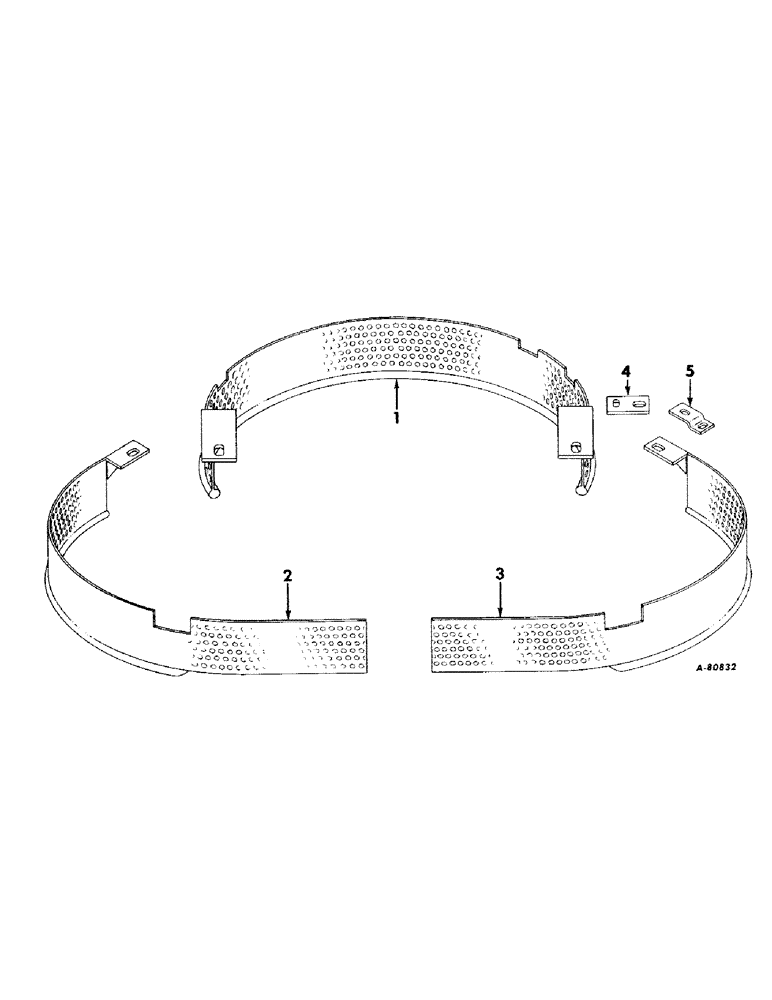

Запчасти Case IH C-4 (L-6) - LEAF MULCHER

1

474577R91

BASKET ASSY, center leaf

1шт.

2

474578R91

BASKET ASSY, left leaf

1шт.

3

474579R91

BASKET ASSY, right leaf

1шт.

4

474580R1

CLIP, mounting

4шт.

5

474581R1

BRACKET MOUNTING

2шт.

120377

NUT,3/8" - 16, Gr 5

6шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 cd or zn-pltd hex-hd cap

6шт.

180177

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

SCREW, 1/2-13 x 1-1/2 cd or zn-pltd hex-hd cap

2шт.

120394

WASHER,3/8", SAE

WASHER, 13/32 x 13/16 x .065 cd or zn-pltd

12шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

6шт.
