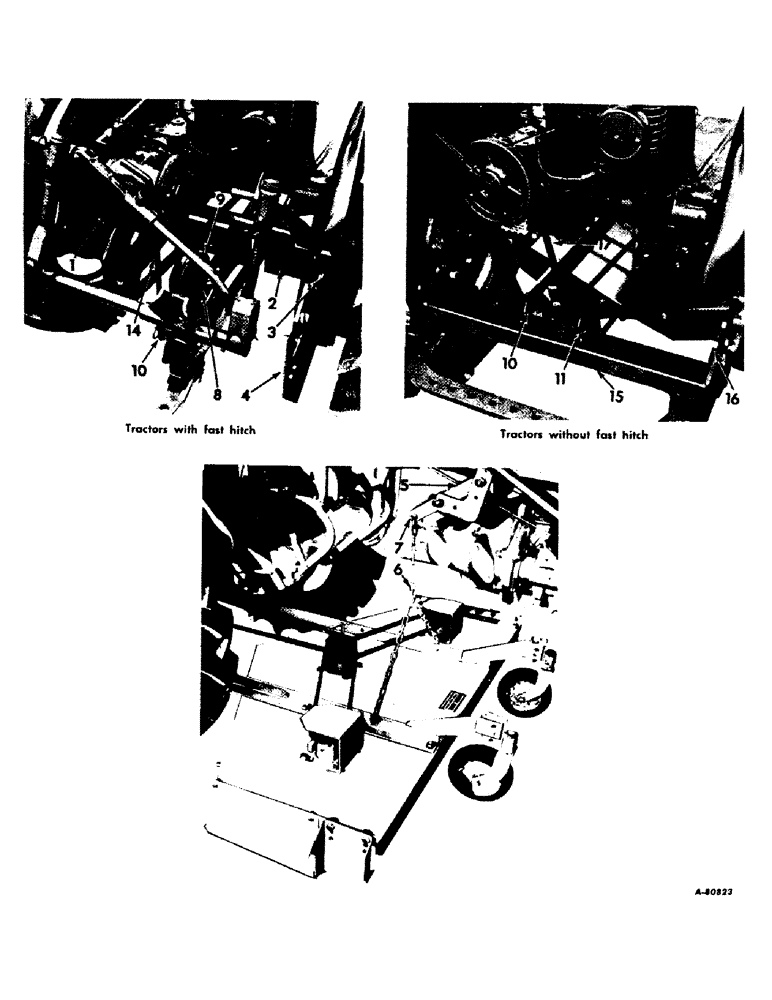

Запчасти Case IH C-3 (K-06) - MOUNTING & DRIVE PARTS, (FARMALL CUB TRACTORS)
№
Артикул
Название
Примечание
Количество
1
474077R1
PLATE, bracket assy spacer
2шт.
2
474078R91
BRACKET ASSY, rear mounting
1шт.
271725
SNAP RING,Hex, 5/8" - 11 x 2 1/2", Gr 5
SCREW, 5/8-11 x 2-1/2 cd or zn-pltd hex-hd cap
4шт.
492-11062
BEARING WASHER,5/8"
WASHER, LOCK, 5/8"
4шт.
3
474047R1
SPACER
BUSHING, platform pivot
2шт.
120378
NUT,Hex, 1/2" - 13, Gr 5
NUT, 1/2"-13, G5
2шт.
180179
BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 5
SCREW, 1/2-13 x 1-3/4 cd or zn-pltd hex-hd cap, pivot plates to mounting bracket
2шт.
NLS
NO LONGER SERVICED
17/32 x 1-1/16 x .095 cd or zn-pltd
2шт.
120384
WASHER,1/2"
LOCK, 1/2"
2шт.
4
474079R1
BAR
pivot
2шт.
120378
NUT,Hex, 1/2" - 13, Gr 5
NUT, 1/2"-13, G5
4шт.
180175
BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5
SCREW, 1/2-13 x 1-1/4 cd or zn-pltd hex-hd cap, bar to platform lift angles
4шт.
120384
WASHER,1/2"
LOCK, 1/2"
4шт.
5
474074R1
ARM
chain lift
1шт.
NLS
NO LONGER SERVICED
SCREW, 5/8-11 x 1-3/4 cd or zn-pltd hex-hd cap
2шт.
492-11062
BEARING WASHER,5/8"
WASHER, LOCK, 5/8"
2шт.
6
474075R91
CHAIN W/SHACKLE, platform lift
1шт.
7
474050R91
CLEVIS
SHACKLE W/SCREW PIN, anchor
1шт.
120377
NUT,3/8" - 16, Gr 5
2шт.
180122
BOLT,Hex, 3/8" - 16 x 1", Gr 5
3/8-16 x 1 cd or zn-pltd hex-hd cap
2шт.
120394
WASHER,3/8", SAE
WASHER, 13/32 x 13/16 x .065 cd or zn-pltd
4шт.
120382
LOCK WASHER,Helical Spring, 3/8"
WASHER, LOCK, 3/8"
2шт.
8
474080R91
BRACKET
ASSY, idler swivel
1шт.
120378
NUT,Hex, 1/2" - 13, Gr 5
NUT, 1/2"-13, G5
2шт.
180177
BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5
SCREW, 1/2-13 x 1-1/2 cd or zn-pltd hex-hd cap
2шт.
120396
WASHER
17/32 x 1-1/16 x .095 cd or zn-pltd
2шт.
120384
WASHER,1/2"
LOCK, 1/2"
2шт.
9
474052R91
PULLEY
W/BEARING, flat idler
1шт.
446239
WASHER, 5/8 x 1-3/8 x .109 cd or zn-pltd
5шт.
492-11062
BEARING WASHER,5/8"
WASHER, LOCK, 5/8"
1шт.
10
662959R91
PULLEY ASSY.
PULLEY W/BEARING, v-idler, 2 used tractors w/o fast hitch
1шт.
11
474053R91
BOLT
ASSY, idler pulley, 2 used tractors w/o fast hitch
1шт.
446239
WASHER, 5/8 x 1-3/8 x .109 cd or zn-pltd
4шт.
492-11062
BEARING WASHER,5/8"
WASHER, LOCK, 5/8"
1шт.
12
474067R1
PULLEY
SHEAVE, drive
1шт.
13
474068R1
HUB
drive sheave splined
1шт.
326-420
BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 8
SCREW, 1/4-20 x 1-1/8 cd or zn-pltd hex-hd cap
3шт.
Q3480
WASHER
1-1/32 x 1-1/2 x 11 ga, between drive sheave hub & tractors belt pulley gear box
1шт.
14
477179R1
V-BELT,0.70" W x 122.85" L
V-section drive 0.70" W x 122.85" L
1шт.
15
474168R91
BRACKET ASSY, rear mounting
1шт.
413-1024
BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5
SCREW, 5/8-11 x 1-1/2 cd or zn-pltd hex-hd cap
4шт.
492-11062
BEARING WASHER,5/8"
WASHER, LOCK, 5/8"
4шт.
474072R1
PLATE, bracket assy spacer, use only when tractor is not equipped with drawbar
2шт.
16
474047R1
SPACER
BUSHING, platform pivot
2шт.
120378
NUT,Hex, 1/2" - 13, Gr 5
NUT, 1/2"-13, G5
2шт.
180179
BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 5
SCREW, 1/2-13 x 1-3/4 cd or zn-pltd hex-hd cap, platform angles to bracket assy
2шт.
NLS
NO LONGER SERVICED
17/32 x 1-1/16 x .095 cd or zn-pltd
2шт.
120384
WASHER,1/2"
LOCK, 1/2"
2шт.
17
487046R1
V-BELT,0.66" W
V-section drive 0.66" W
1шт.
474170R91
GUARD ASSY, rear belt, tractors w/o fast hitch
1шт.
180171
BOLT,Hex, 1/2" - 13 x 3/4", Gr 5
SCREW, 1/2-13 x 3/4 cd or zn-pltd hex-hd cap
1шт.
120384
WASHER,1/2"
LOCK, 1/2"
1шт.
474082R91
GUARD ASSY, rear belt, tractors w/fast hitch
1шт.
474083R1
BRACKET, belt guard, tractors w/fast hitch
1шт.
474084R1
BRACKET, belt guard, tractors w/fast hitch
1шт.
120375
NUT,Hex, 1/4" - 20, Gr 5
3шт.
413-412
BOLT,Hex, 1/4" - 20 x 3/4", Gr 5
1шт.
86505867
BOLT,Hex, 1/4" - 20 x 1", Gr 5
2шт.
16559R1
WASHER,1/4"
17/64 x 5/8 x .049 cd or zn-pltd
2шт.
492-11025
LOCK WASHER,1/4"
WASHER, LOCK, 1/4"
3шт.
