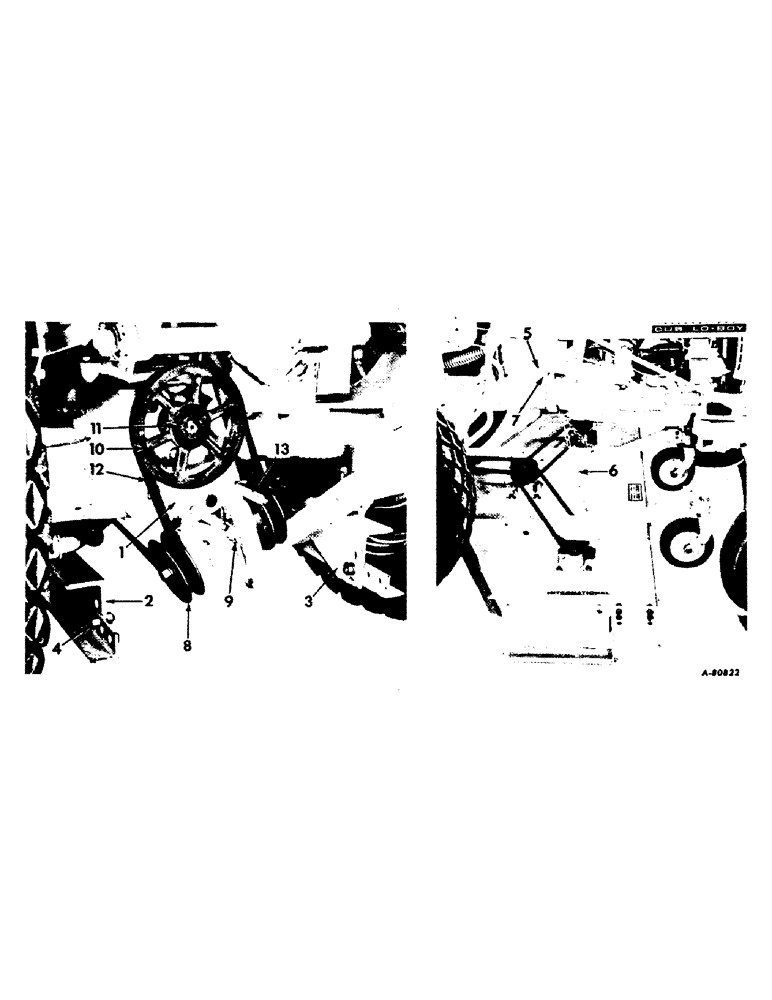

Запчасти Case IH C-3 (K-04) - MOUNTING & DRIVE PARTS, (INTERNATIONAL CUB LO-BOY TRACTORS)

1

474171R91

BRACKET ASSY, idler mounting

1шт.

113-233

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

3/8-16 x 1-3/4 cd or zn-pltd hex-hd cap, mounting bracket to tractor

4шт.

2

474059R91

BRACKET ASSY, left pivot

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, , Pivot bracket to platform angle 1/2"-13, G5

1шт.

180177

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

SCREW, 1/2-13 x 1-1/2 cd or zn-pltd hex-hd cap

1шт.

413-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5

SCREW, 5/8-11 x 1-1/2 cd or zn-pltd hex-hd cap, pivots brackets pivot brackets to tractor

2шт.

NLS

NO LONGER SERVICED

17/32 x 1-1/16 x .095 cd or zn-pltd

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

3

474060R91

BRACKET ASSY, right pivot

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, , Pivot bracket to platform angle 1/2"-13, G5

1шт.

180177

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

SCREW, 1/2-13 x 1-1/2 cd or zn-pltd hex-hd cap

1шт.

271547

STUD,Hex, 5/8" - 11 x 1 1/2", Gr 5

SCREW, 5/8-11 x 1-1/2 cd or zn-pltd hex-hd cap, pivot, Serial Range: brackets-tractor

2шт.

120396

WASHER

17/32 x 1-1/16 x .095 cd or zn-pltd

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

4

474061R1

SPACER

BUSHING, platform pivot

2шт.

5

474172R1

ARM, lift chain

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 cd or zn-pltd hex.

2шт.

271548

BOLT (SPREADER),Hex, 5/8" - 11 x 1 3/4", Gr 5

SCREW, 5/8-11 x 1-3/4 cd or zn-pltd hex-hd cap

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

6

474075R91

CHAIN W/SHACKLES, platform lift, replaces 474173R91

1шт.

7

474050R91

CLEVIS

SHACKLE W/SCREW PINS, anchors

1шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 cd or zn-pltd hex-hd cap

2шт.

120394

WASHER,3/8", SAE

WASHER, 13/32 x 13/16 x .065 cd or zn-pltd

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

8

662959R91

PULLEY ASSY.

PULLEY W/BEARING, idler

2шт.

9

474053R91

BOLT

ASSY, idler pulley

2шт.

124589

BALL STUD,Hex, 5/8" - 11 x 2", Gr 5

5/8-11 cd or zn-pltd hex

2шт.

446239

WASHER, 5/8 x 1-3/8 x .109 cd or zn-pltd

8шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

10

474067R1

PULLEY

SHEAVE, drive

1шт.

11

474068R1

HUB

drive sheave splined

1шт.

180023

SPRING

SCREW, 1/4-20 x 1-1/8 cd or zn-pltd hex-hd cap

3шт.

12

487046R1

V-BELT,0.66" W

V-section drive 0.66" W

1шт.

13

474070R1

LUG, belt guard mounting

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

474069R1

GUARD

rear belt

1шт.
