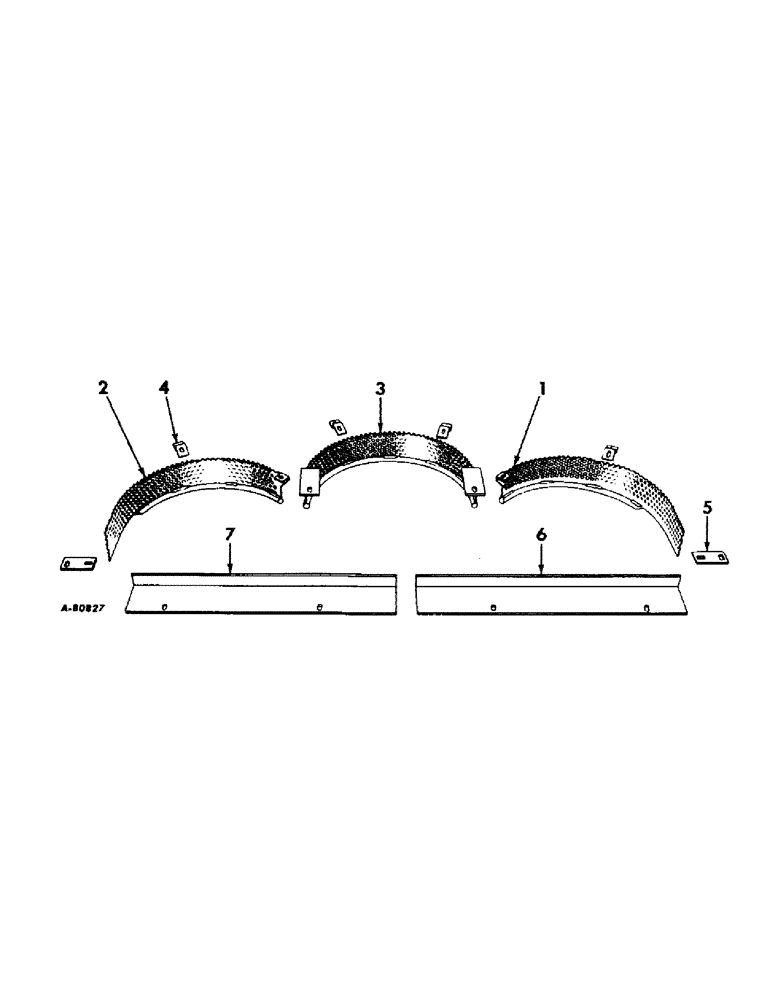

Запчасти Case IH C-3 (K-10) - LEAF MULCHER

1

474585R91

BASKET ASSY, left leaf

1шт.

2

474586R91

BASKET ASSY, right leaf

1шт.

3

474587R91

BASKET ASSY, center leaf

1шт.

4

474588R1

CLIP, rear mounting

4шт.

5

474584R1

BRACKET, side mounting

2шт.

120377

NUT,3/8" - 16, Gr 5

8шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 cd or zn-pltd hex-hd cap, baskets to mounting clips and brackets

1шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

SCREW, 3/8-16 x 1-1/4 cd or zn-pltd hex-hd cap, caps mounting pads to platform

2шт.

120394

WASHER,3/8", SAE

WASHER, 13/32 x 13/16 x .065 cd or zn-pltd

12шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

8шт.

6

474589R1

SHIELD, left front

1шт.

7

474590R1

SHIELD, right front

1шт.
