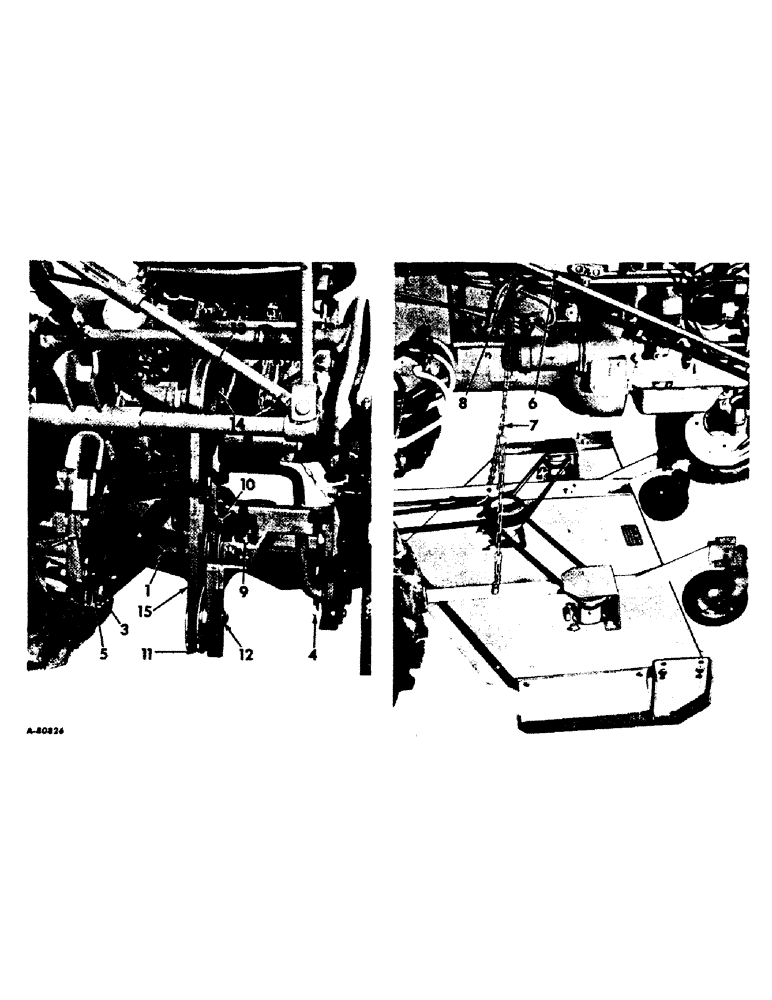

Запчасти Case IH C-3 (K-08) - MOUNTING & DRIVE PARTS, FARMALL & INTERNATIONAL 140 TRACTORS

1

474043R91

BRACKET ASSY, rear mounting

1шт.

SCREW, 3/4-10 x 2-3/4 cd or zn-pltd hex-hd cap

4шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

4шт.

2

474044R1

PLATE, mounting bracket spacer, use only when tractor is not equipped w/fast hitch

2шт.

2

474045R1

PLATE, mounting bracket spacer, use only when tractor is not equipped w/fast hitch

2шт.

3

474174R1

BRACKET, left platform pivot

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

3шт.

180179

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 5

SCREW, 1/2-13 x 1-3/4 cd or zn-pltd hex-hd cap

1шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

SCREW, 1/2-13 x 1-1/4 cd or zn-pltd hex-hd cap

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

3шт.

120396

WASHER

17/32 x 1-1/16 x .095 cd or zn-pltd

1шт.

4

474175R1

BRACKET, right platform pivot

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

3шт.

180179

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 5

SCREW, 1/2-13 x 1-3/4 cd or zn-pltd hex-hd cap

1шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

SCREW, 1/2-13 x 1-1/4 cd or zn-pltd hex-hd cap

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

3шт.

NLS

NO LONGER SERVICED

17/32 x 1-1/16 x .095 cd or zn-pltd

1шт.

5

474047R1

SPACER

BUSHING, platform pivot

2шт.

6

474176R1

ARM, chain lift

1шт.

7

474049R91

CHAIN W/SHACKLE, platform lift

1шт.

8

474050R91

CLEVIS

SHACKLE W/SCREW PIN, anchor

1шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 cd or zn-pltd hex-hd cap, chain to platform lift angles

2шт.

120394

WASHER,3/8", SAE

WASHER, 13/32 x 13/16 x .065 cd or zn-pltd

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

9

474051R91

BRACKET ASSY, idler swivel

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

180177

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

SCREW, 1/2-13 x 1-1/2 cd or zn-pltd hex-hd cap

2шт.

120396

WASHER

17/32 x 1-1/16 x .095 cd or zn-pltd

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

10

474052R91

PULLEY

W/BEARING, flat idler

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 cd or zn-pltd hex.

1шт.

271725

SNAP RING,Hex, 5/8" - 11 x 2 1/2", Gr 5

SCREW, 5/8-11 x 2-1/2 cd or zn-pltd hex-hd cap

1шт.

446239

WASHER 5/8 x 1-3/8 x .132 cd or zn-pltd

5шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

11

574097R91

PULLEY

W/BEARING, v-idler

1шт.

12

474053R91

BOLT

ASSY, idler pulley

1шт.

124589

BALL STUD,Hex, 5/8" - 11 x 2", Gr 5

5/8-11 cd or zn-pltd hex.

1шт.

446239

WASHER, 5/8 x 1-3/8 x .132 cd or zn-pltd

4шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

13

474177R1

PULLEY

SHEAVE, drive

1шт.

14

474056R1

HUB

drive sheave

1шт.

NLS

NO LONGER SERVICED

1/4-20 x 1-1/2 hex-soc hd cap

3шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

3шт.

Q3482

WASHER

1-5/32 x 1-3/4 x 11 ga, on gear box out put shaft

2шт.

15

477178R1

BELT

v-section drive

1шт.

474057R91

GUARD ASSY, rear belt

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8-16 x 3/4 cd or zn-pltd hex-hd cap

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 cd or zn-pltd hex-hd cap

1шт.

120394

WASHER,3/8", SAE

WASHER, 13/32 x 13/16 x .065 cd or zn-pltd

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.
