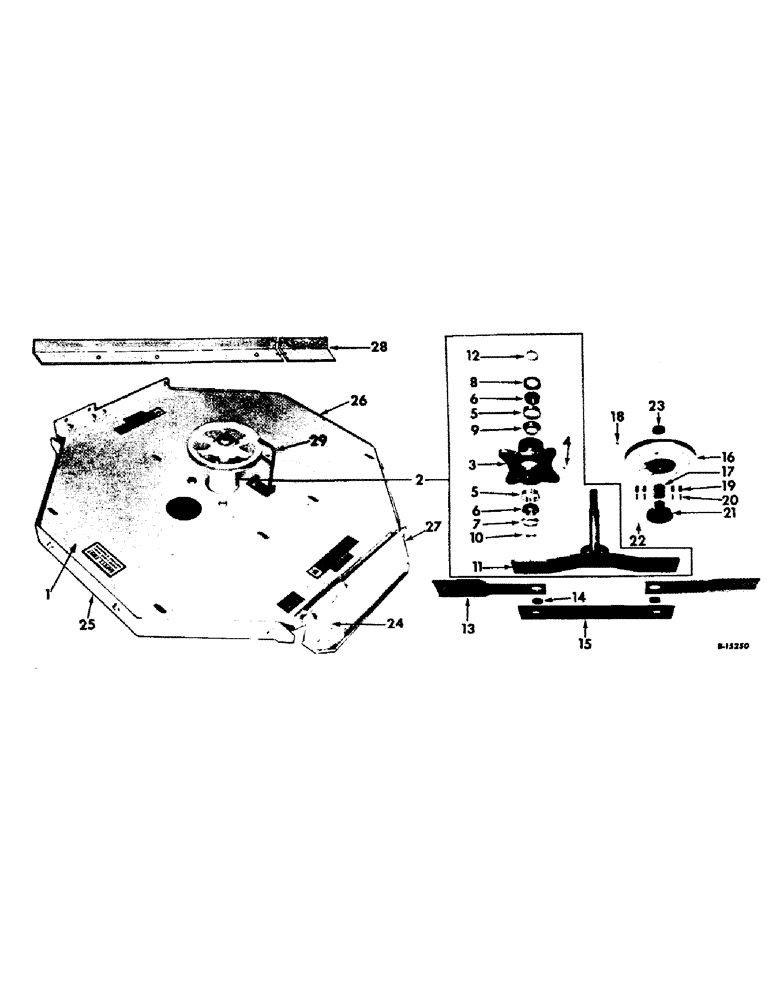

Запчасти Case IH C-2 (J-03) - PLATFORM AND SPINDLE

1

474013R91

PLATFORM ASSY, one spindle

1шт.

2

474014R91

SPINDLE ASSY, cutter blade

1шт.

3

474015R1

HOUSING

spindle

1шт.

271546

BOLT,Hex, 5/8" - 11 x 1 1/4", Gr 5

SCREW, 5/8-11 x 1-1/4 cd or zn-pltd hex-hd cap

4шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

4

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, , PTF, Housing spindle 1/8"-27 x .66 lg

1шт.

5

54628H

BEARING CUP,1.375" ID x 2.717" OD x 0.7813, 0.6250"

BEARING, spindle housing cup

2шт.

6

474017R91

BEARING ASSY,34.92mm ID

ASSY, housing cone

2шт.

7

474018R91

OIL SEAL

spindle housing bottom oil

1шт.

8

661876R91

OIL SEAL

SEAL, spindle housing top oil

1шт.

9

474019R1

BEARING COVER

CLOSURE, spindle housing inner

1шт.

10

474020R1

SPACER

spindle

1шт.

11

474021R91

SHAFT

ASSY, spindle

1шт.

474022R1

WASHER

1-13/32 x 2-1/2 x 5/32 cd-pltd

1шт.

474024R1

NUT

1-3/8-12 hex.

1шт.

102584

SPARE PART

SCREW, 5/16-18 x 3/4 hex-soc-hd cup-pt set, in spindle shaft nut

2шт.

425-145

JAM NUT,Jam, 5/16"-18, G5

5/16-18 cd or zn-pltd hex jam, on set screw

2шт.

12

474023R1

WASHER

spindle shaft star

1шт.

13

474025R1

BLADE

cutter

2шт.

14

474026R1

BUSHING,23.02mm ID x 37.57mm OD x 9.91mm L

cutter blade

2шт.

15

474027R91

BAR

PLATE, cutter blade tie

1шт.

474030R1

BOLT,7/8" - 14 x 2 1/4", Steel

7/8-14 x 2-1/4 sq-nk crg

2шт.

427646

SLOTTED NUT,7/8"-14, G5

NUT, 7/8-14 cd or zn-pltd slt hex.

2шт.

137253

PIN, 3/16 x 1-5/8 cd or zn-pltd cot.

2шт.

16

474028R1

PULLEY

SHEAVE, clutch

1шт.

17

474029R1

BUSHING,38.13mm ID x 44.53mm OD x 38.3mm L

clutch sheave

1шт.

18

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight, Clutch sheave 1/4"-28 NPT x .54" lg

1шт.

19

474031R1

PIN

clutch

4шт.

20

474032R1

SPRING

clutch

4шт.

21

474033R1

HUB

clutch

1шт.

22

2390N

KEY,1/4" Sq x 1 3/4", Par

1/4 x 1-3/4 sq. parallel clutch hub

1шт.

23

474034R91

RETAINER

CAP WITH PIN, clutch retainer

1шт.

19756R1

PIN,3/16" x 1/2", Coiled

1шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

SCREW, 3/8-16 x 1-1/4 cd or zn-pltd hex-hd cap

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, , Cap to spindle shaft 3/8"

1шт.

24

474035R91

SHOE

RUNNER ASSY, platform left

1шт.

24

474036R91

SHOE

RUNNER ASSY, platform right

1шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

SCREW, 1/2-13 x 1-1/4 cd or zn-pltd hex-hd cap

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

25

474037R1

SHIELD, front platform

1шт.

26

474038R1

SHIELD, rear platform

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 cd or zn-pltd hex-hd cap

8шт.

120394

WASHER,3/8", SAE

WASHER, 13/32 x 13/16 x .065 cd or zn-pltd

8шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

8шт.

120377

NUT,3/8" - 16, Gr 5

8шт.

27

474039R1

SUPPORT

DEFLECTOR, platform side

2шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 cd or zn-pltd hex-hd cap

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

28

474040R1

ANGLE, platform left lift, note

1шт.

28

474041R1

ANGLE, platform right lift, note

1шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

SCREW, 1/2-13 x 1-1/4 cd or zn-pltd hex-hd cap

8шт.

NLS

NO LONGER SERVICED

17/32 x 1-1/16 x .095 cd or zn-pltd

8шт.

120384

WASHER,1/2"

LOCK, 1/2"

8шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

8шт.

29

474042R91

GUIDE

ASSY, drive belt

2шт.
