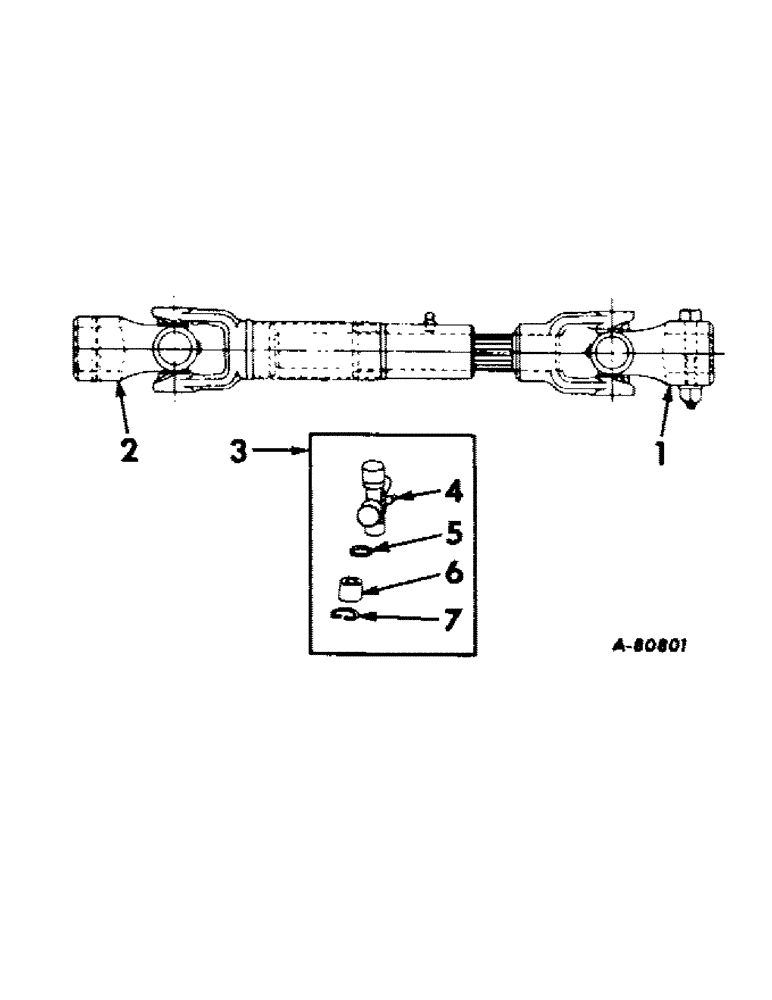

Запчасти Case IH C-2 (J-10) - PTO DRIVE SHAFT, LEAF MULCHER, PRODUCT GRAPHICS

1

474107R91

SHAFT ASSY, universal joint

1шт.

113-257

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

SCREW, 3/8-16 x 2-1/2 cd or zn-pltd hex-hd cap, universal joint to spindle shaft

1шт.

443335

BOLT

NUT, 3/8-16 cd or zn-pltd hex. lock

1шт.

2

474108R91

TUBE ASSY, universal joint, for cub Lo-boy tractors only

1шт.

2

474109R91

TUBE ASSY, universal joint, for Farmall cub tractors only

1шт.

86837280

CLEVIS PIN

PIN, 3/16 x 2-1/2 cot., universal joint to tractor PTO

1шт.

3

659262R91

U-JOINT SPIDER

CROSS ASSY, center

2шт.

4

80711

LUBE NIPPLE,65 Degree, 1/8" NPT x 7/8" lg

FITTING, 1/8-27 PTF 65 deg angle lub

1шт.

5

661656R1

SEAL, cork

4шт.

6

661655R91

BEARING ASSY,0.59375" ID x 1.0625" OD x 0.4375"

ASSY, needle

4шт.

7

661657R1

RING

snap

4шт.
